Step 3: Attach TV to Wall Plate
Step 4: Release the TV
With the TV brackets firmly secured to the TV, use two people to lift the TV into position and hook the TV brackets onto
the wall plate, as shown in Diagram D.
The two spring loaded Quick-Lock brackets will snap into place as you lower the bottom of the TV onto the plate.
For minor level adjustment, you can adjust the two top screws using a Phillips screwdriver to ensure the TV hangs level,
as shown in Diagram E. If you need to release pressure on the screws, pull down slightly on the Quick Release cords as
shown in Diagram F.
Because the TV sits so close to your wall, the Quick-Lock TV brackets are equipped with quick release cords. Loosen the top level-
ling screws slightly to release tension, then simply pull to release both Quick-Locks (as shown in Diagram F), and pull the bottom of
the TV away from the wall. Then, using two people, lift the TV up and away from the wall plate.
CAUTION
Read this section carefully prior to install.
WARNING
Use two people to lift and position the TV onto the Wall Plate.
6

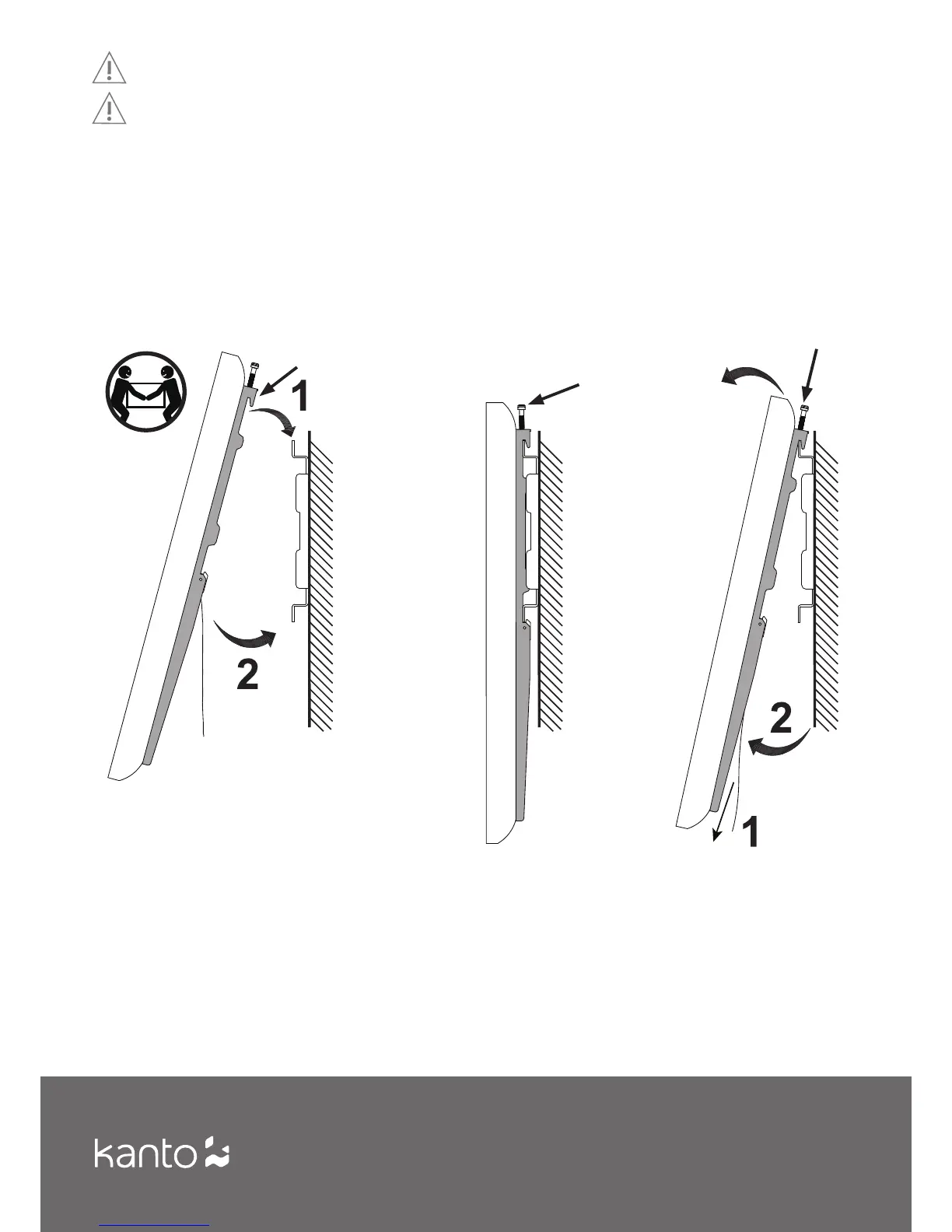

Diagram D Diagram E
Hook
Level
Diagram F
Pull
Cord to
Release
Loosen
