Step 3: Attach TV to Wall Plate
With the TV brackets fi rmly secured to the TV, use two people to lift the TV into position and hook the TV brackets
onto the wall plate, as shown in Diagram D.
Swing the bottom of the television towards vthe wallplate, and the Quick-Lock bracket will lock into place.
CAUTION
Read this section carefully prior to install.
WARNING
Use two people to lift and position the TV onto the Wall Plate.

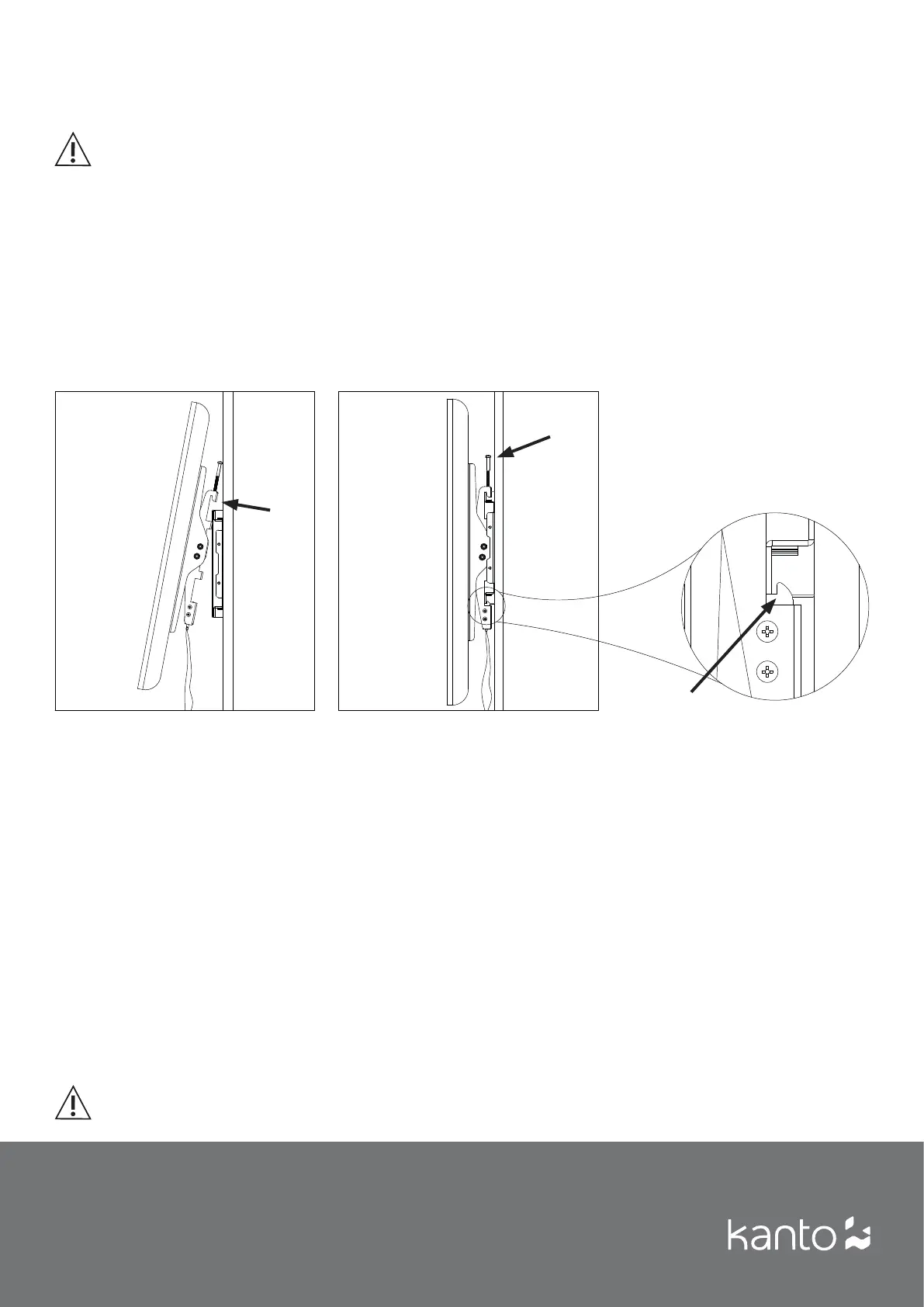

Diagram D Diagram E
Hook
Quick-
Lock
Level
Step 4: Level the Television
For minor level adjustment, tighten the two top screws using a Phillips screwdriver to ensure the TV hangs level, as
shown in Diagram E. You may need to pull down slightly on the Quick-Lock release cord to relieve pressure.
