9. TECHNICAL DATA
Power Connection
Voltage ..................................................... 230-240 V (AC)
Current........................................................... 1~50 Hz
Connected/Load ............................................... 2.8 KW
Mains Fuse ........................................................ 13 AMP
Water Connection
Supply Temperature (Max)................................ 60 °C
Supply Rate (Min)............................................ 600 Litres per Hour
Supply Pressure (Max) ........................................ 6 bar
Supply Hose Length ......................................... 7.5 metres
Diameter...................................... 1/2 inch
Suction Height from open tank
at Water Temperature 20 °C ............................... 1 metre
Performance Data
Pump Pressure (Max) ..................................... 160 bar (at bypass)
Operating Pressure .................................... 20-150 bar
Flow Rate ........................................................ 450 litres per hour
Detergent Intake ............................................. 0-25 litres per hour
Recoil Force of Spray Gun at
Operating Pressure (Max) ................................. 19 N
Noise ................................................................. 78 dB (A)
Optimum Working Distance on High Pressure.. 30 cm
Dimensions
Length.............................................................. 497 mm
Width ............................................................... 360 mm
Height .............................................................. 925 mm
Weight ............................................................... 22 Kg

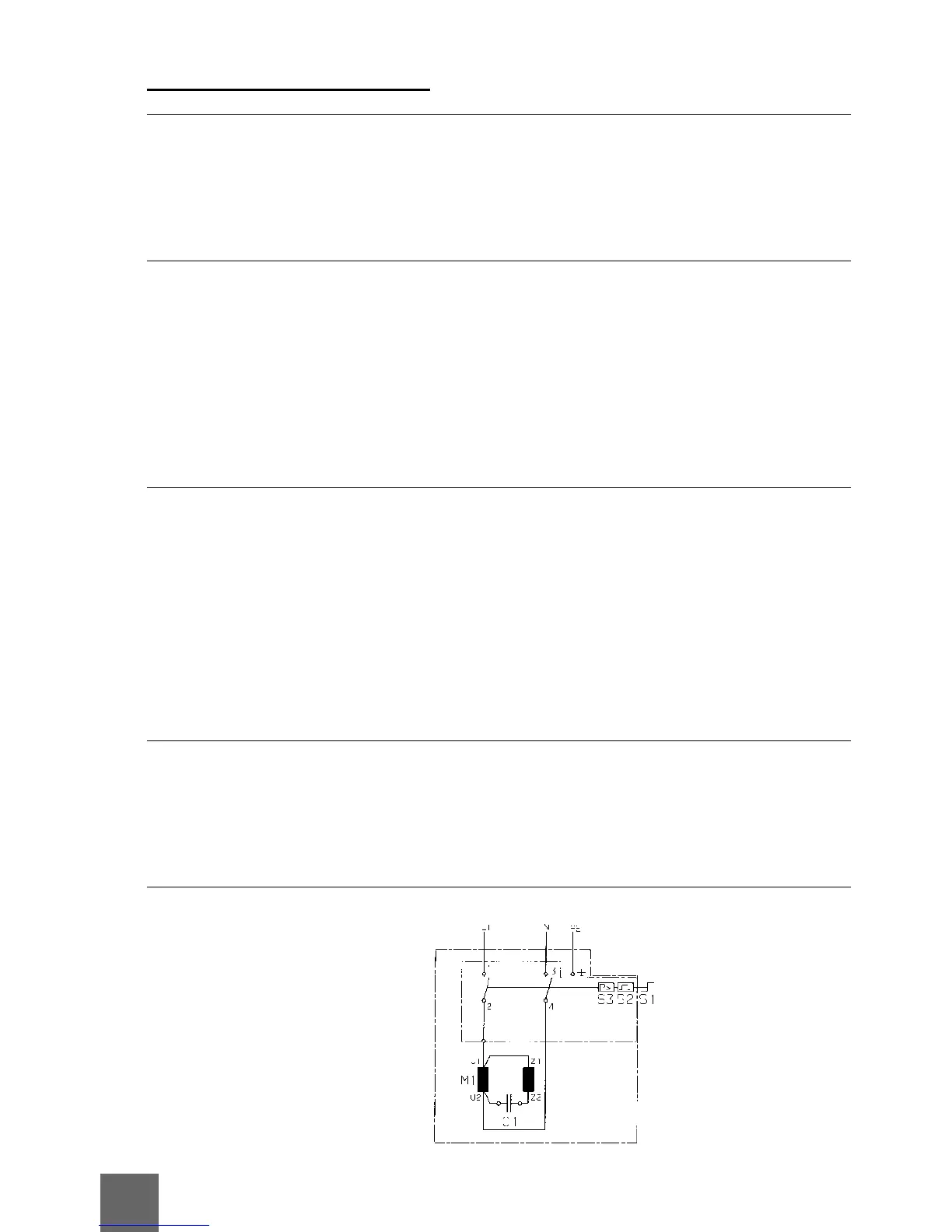

Circuit Diagramm
C1 Running capacitor
M1 Motor
S1 Appliance switch
S2 Bimetal switch
S3 Pressure-operated
switch
