Operating Instructions BR/BD 530/530 XL English
18

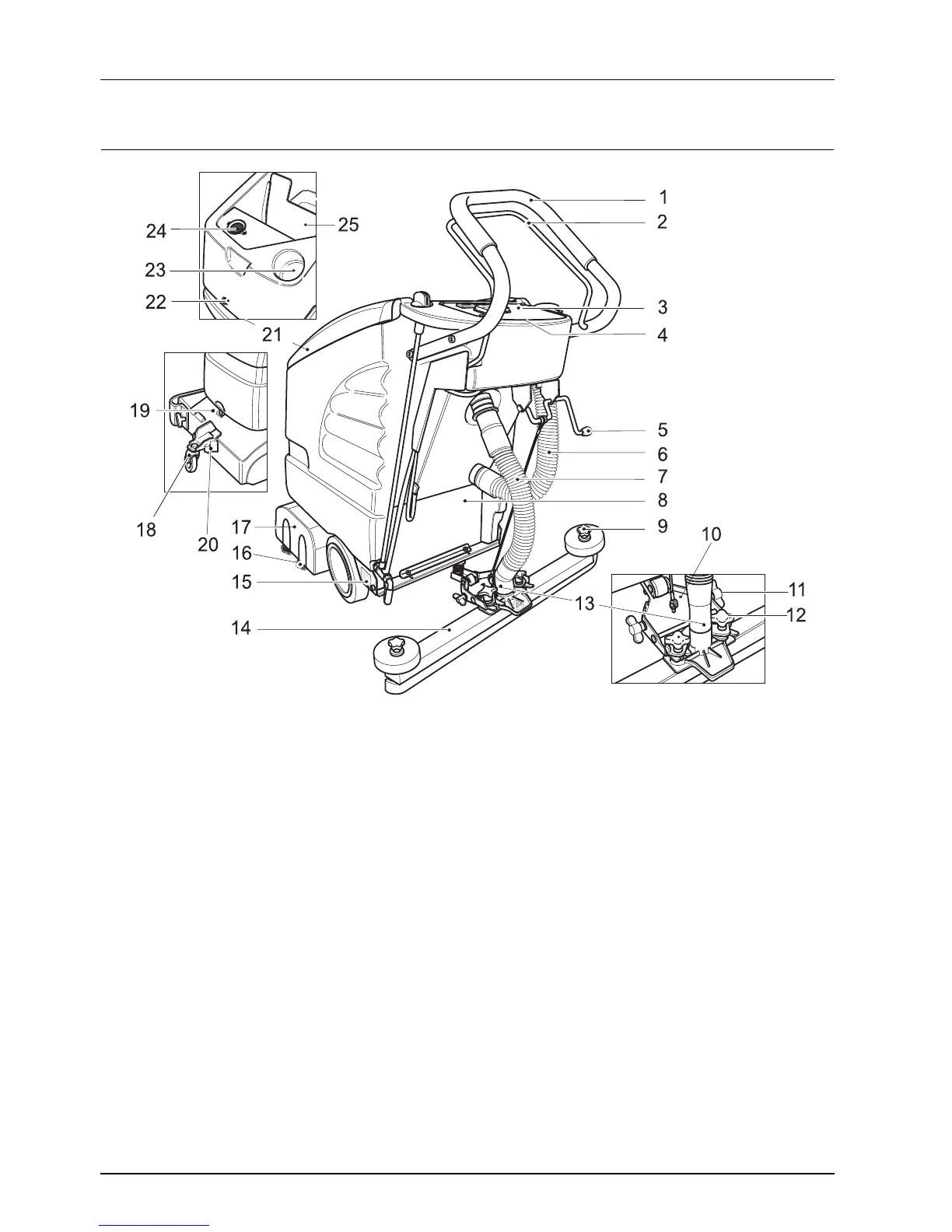

Operating and function controls
1 Push handle
2 Trigger lever for brush mode
3 Control console
4 Electronics module and fuses
(unter the control console)
5 Lever for raising/lowering the
suction bar
6 Drainage hose for dirty water
7 Suction hose
8 Cover
9 Star knobs for replacing the squeegee
blades
10 Suction-bar suspension device
11 Wing nuts for inclining the suction bar
12 Star knob for attachment and angular
positioning of the suction bar
13 Suction hose-suction motor connection
14 Suction bar**
15 Rating plate
16 Roller brushes (BR model)
Disc brushes (BD model)*
17 Cleaning head
18 Running gear
19 Handle
20 Locking device
21 Cover
22 Screw for locking the tank
Under the cover:
23 Fresh-water filler inlet
24 Fluff strainer
25 Dirty-water tank
* not illustrated
** not supplied with the appliance
