English 7

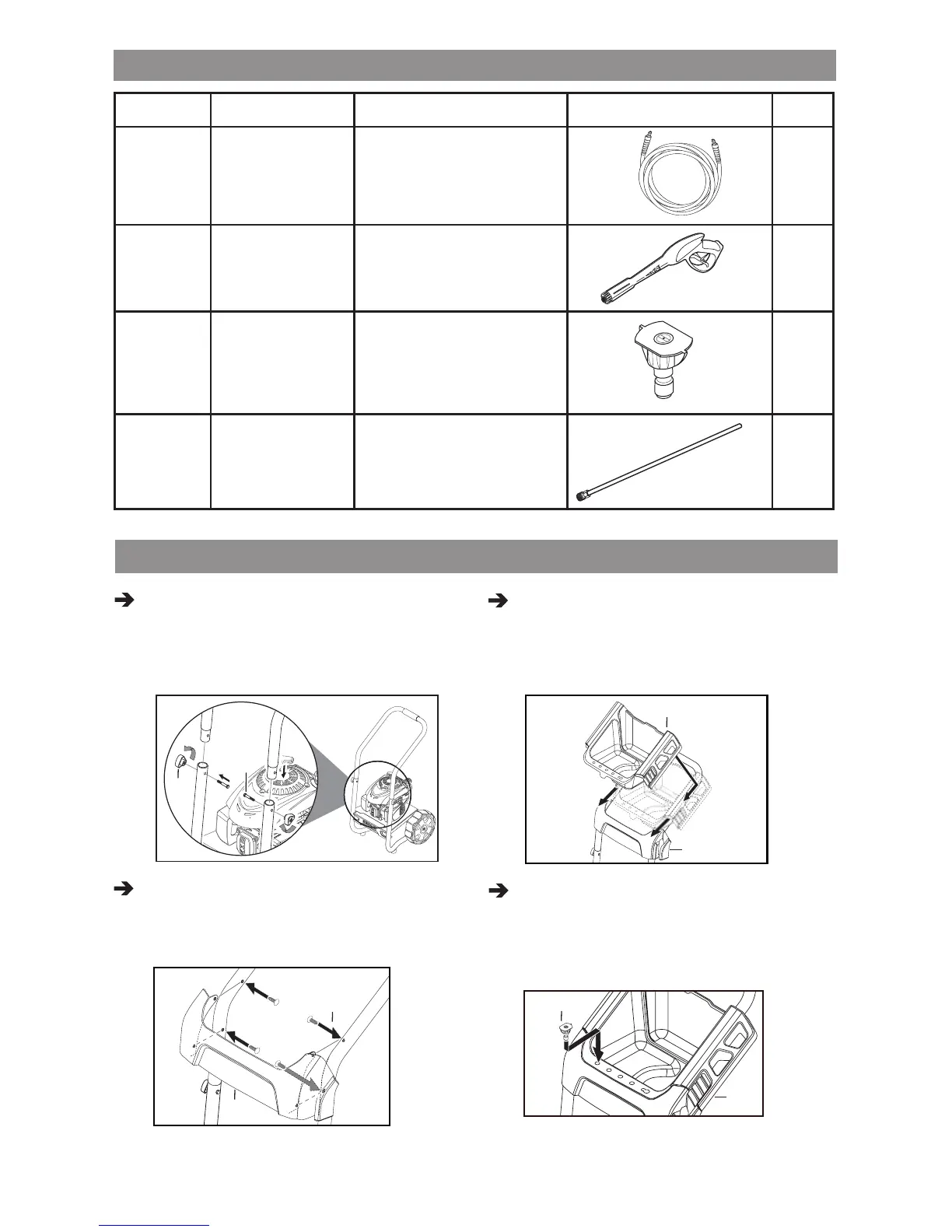

Assembling
Hardware (included)
Description Purpose Illustration Qty
F
High Pressure
Hose
Spray Gun Assembly 1
G
Spray Gun Spray Gun Assembly 1
H
Quick
Connect
Nozzle
Kit (4 pc.)
Nozzle Kit Assembly 1
I
Wand Wand Assembly 1
STEP 1:
Attach the handle to the frame of the pres-
sure washer. Align holes, insert bolts (B), and
tighten with knobs (A).
STEP 2:
Mount the gun holder (D) with enclosed nylon
rivets (C) to the pressure washer handle
.
STEP 3:
Snap the nozzle holder (E) on to pressure
washer handle and slide it down to the gun
holder (D).
STEP 4:
Place the quick connect nozzles (H) in the
nozzle holder (E) following the color instruc-
tion.
C
D
E
D
H
E
A
B
To Next Page
