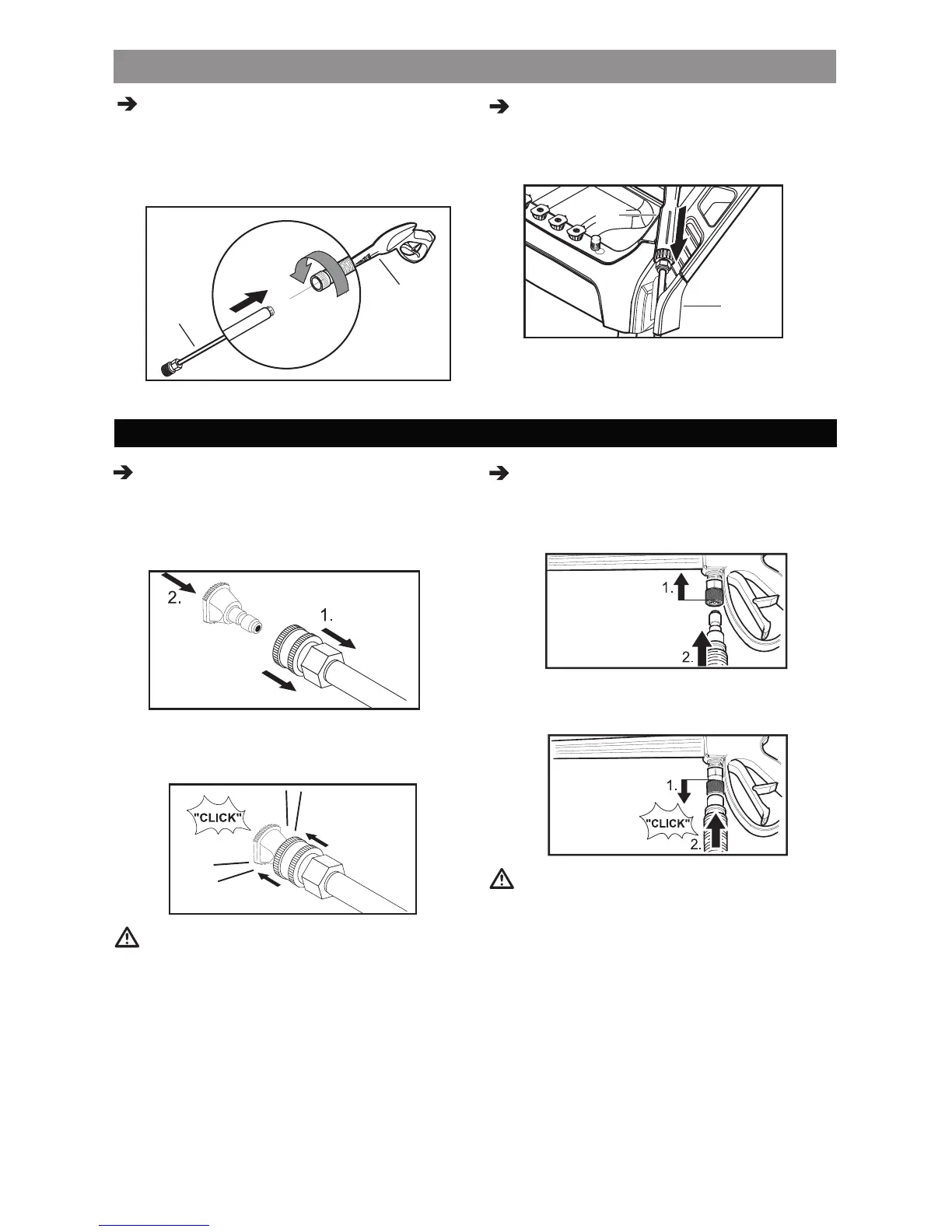

Assembling
Release the collar and push the nozzle until
the collar clicks.
CAUTION
High pressure in quick connect area.
Risk of injury caused by improperly locked
high pressure hose.
■ Make sure you hear a "click" when inserting
the high pressure hose into the quick connec-
tion.
■ Pull the high pressure hose to make sure it is
seated properly before operating your unit.
STEP 2:
Pull back the spring loaded collar at the spray
gun and insert the high pressure hose.
STEP 1:
Pull the spring-loaded collar of the wand
back to insert your choice of quick connect
nozzle.
Release the collar and push the nozzle until
the collar clicks
.
CAUTION
High pressure in nozzle area.
Risk of injury caused by improperly locked
nozzle.
■ Make sure you hear a "click" when inserting
the nozzle tip into the wand.
■ Pull the nozzle to make sure it is seated
properly before operating your unit.
OPERATING INSTRUCTIONS
STEP 6:
Vertically insert the Spray Gun (G) into the
Gun Holder (D).
STEP 5:
Attach the wand to the spray gun.
Push the wand (I) into the trigger gun (G) and
then thread the connection until tight.
G
D
G
I
