Kärcher G 2900 E - Step-by-Step Assembly

8
ASSEMBLY INSTRUCTIONS
Assembling
4 5 6
1 2 3
B
A
C
E
D

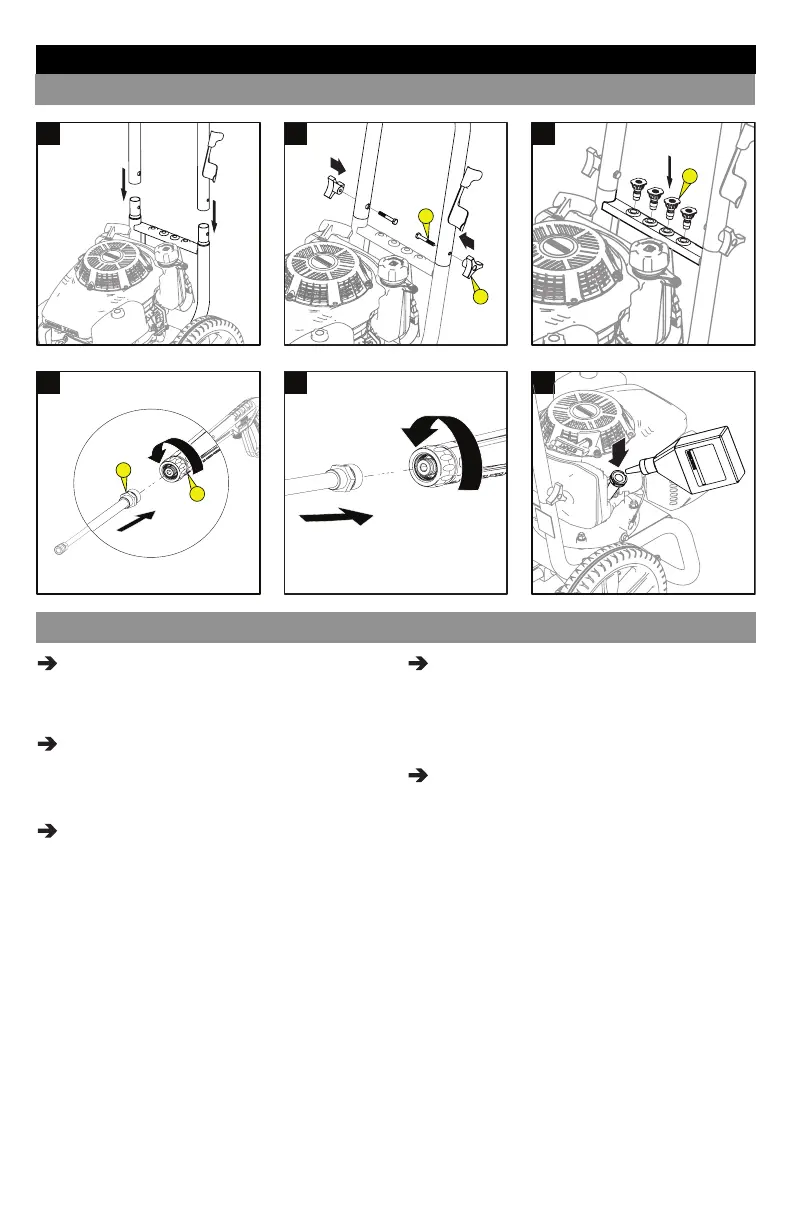

Illustration 1:
Attach the handle to the pressure washer
frame.
Illustration 2:
Align holes, insert bolts (A), and tighten with
knobs (B).
Illustration 3:
Place the quick connect nozzles (C) in the
nozzle holder.
Illustration 4,5:
Attach the wand (D) to the spray gun (E).
Push the wand (D) into the trigger gun (E) and
then thread the connection.
Illustration 6:
Remove the cap / dipstick from the oil
level and add the oil.
Assembling
