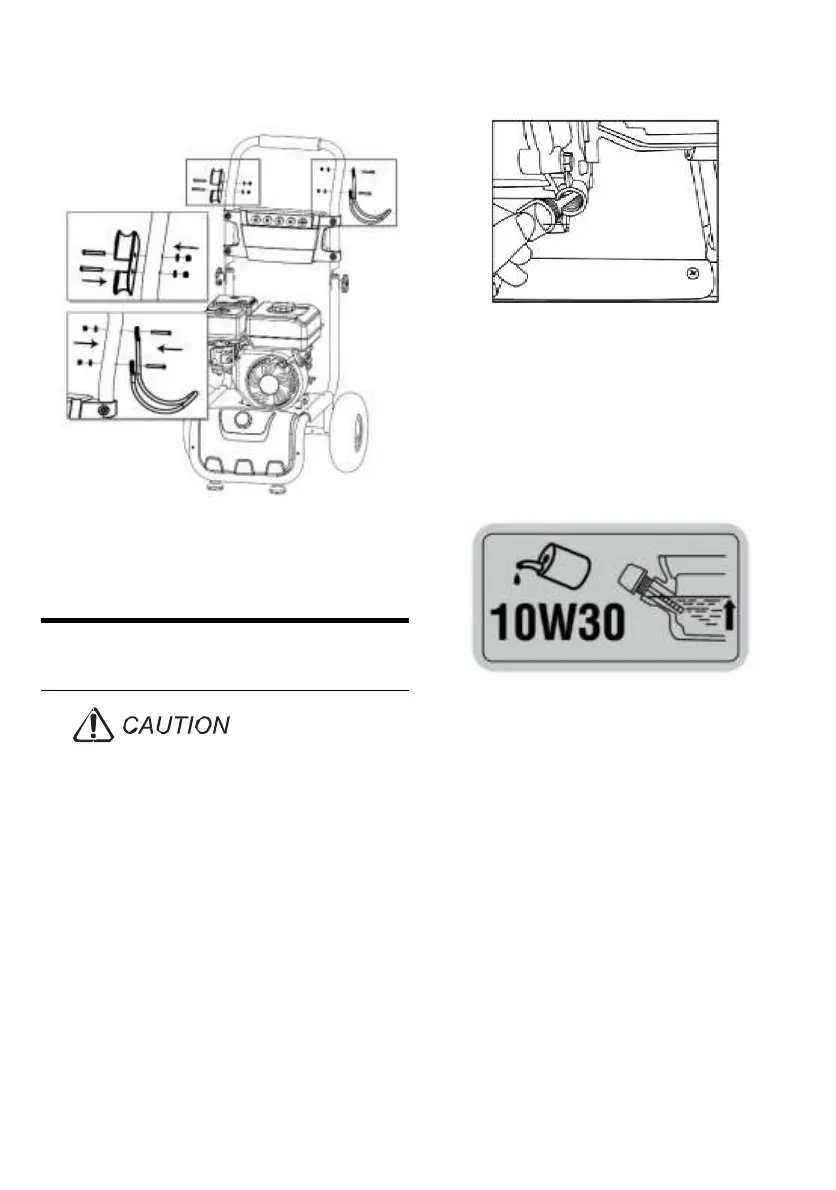

3. Attach the gun & hose hooks to the
handle.
Preparation
Oil
Level
Engine shipped without oil in
crankcase. Before starting engine,
fill with oil. Do not over-fill. Do not
run the engine with a high or low oil
level as this can cause engine
damage. If you have further
questions regarding the engine,
please refer to the engine manual
included with the unit.
Check the engine oil level with the
engine stopped and in a level position.
1. Remove the filler cap/dipstick and
wipe it clean.
2. Insert and remove the
dipstick
without
screwing it into the filler neck.
Check the oil level shown on the
dipstick.
3. If the oil level is low, fill to the edge of
the oil filler hole with the
recommended oil.
Always use SAE 10W-30 oil.
Oil crankcase capacity: 0.6L.
4. Reposition the oil gauge dipstick and
tighten it by turning clockwise.
5. Engine oil should be changed after
the first 5 hours, then every 50 hours.
Failure to change engine oil will void
engine warranty.
To Next Page
