Kärcher G 3500 Plus - Page 8

H-Foam Cannon
I-Turbo Nozzle
Parts not shown:
1 - Manual
1 - Nozzle Cleaner
1 - Spark Plug Wrench
1 - One bottle of oil
1- One Oil funnel
1 - O-Ring Set
(2 for pressure hose, 1 for spray gun)

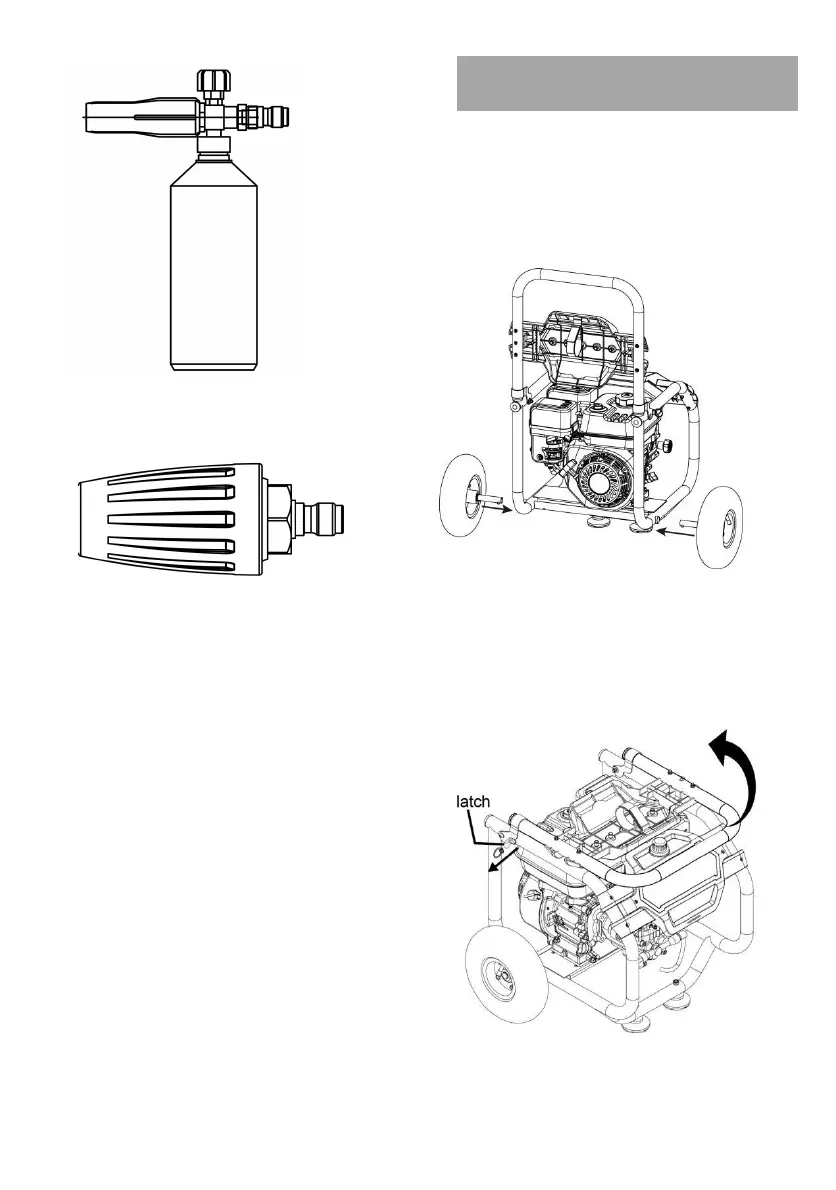

1. Install the wheels to the main frame
by pressing the spring loaded pin on
wheel axle, then insert wheel axle
into frame. Ensure that the spring pin
is fixed in position. Repeat for the
other wheel.
2. Pull out the latch, unfold the upper
frame to vertical angle. Then
insert the latch to lock the upper
frame.
Page 8
Assembling
