Kärcher K 2.54 M - User Manual

Kärcher K 2.54 M
16 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
English 2
Español 17
Français 33
5.961-867.0 01/06

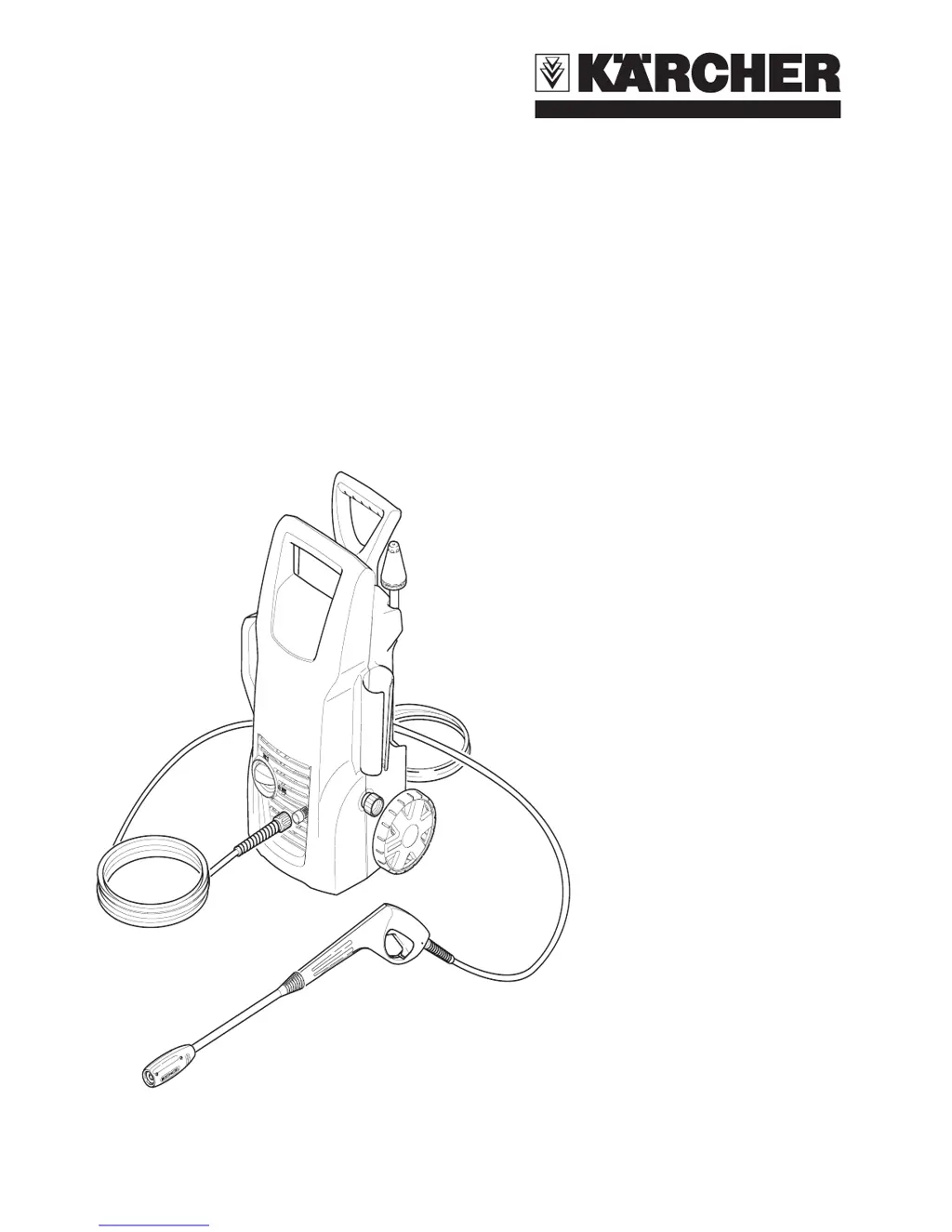

K 2.54 M

Table of Contents

Other manuals for Kärcher K 2.54 M

Preview: Operating Instructions
Operating Instructions12 pages

Questions and Answers

  • T
    tandersonJul 28, 2025
    Why does the output pressure of my Kärcher K 2.54 M vary?
    • W
      William RiveraJul 28, 2025
      If the output pressure of your Kärcher Pressure Washer varies, it could be due to several reasons. First, make sure there's enough inlet water supply by turning the water on full force and checking the garden hose for kinks, leaks, or blockages. Also, check that hoses and fittings are airtight to prevent the pump from sucking air; turn off the machine and purge the pump by squeezing the trigger gun until a steady flow of water emerges through the nozzle. Clean the water inlet filter by removing and rinsing it in warm water. Clear any obstructions from the discharge nozzle using a fine needle. Lastly, if the gun, hose, or spray wand is calcified, run distilled vinegar through the detergent suction tube.
  • T
    Tammy ReeseAug 2, 2025
    How to fix a Kärcher Pressure Washer when the motor won't start?
    • M
      matthewwilliamsAug 2, 2025
      If your Kärcher Pressure Washer motor won't start, here's what you can check: First, ensure the On/Off switch is in the “ON” (I) position. Then, check the GFCI plug and press the “RESET” button. Make sure the power cord is properly plugged in. Finally, try a different electrical outlet to rule out power supply issues.
  • C
    cookericaAug 6, 2025
    Why is my Kärcher K 2.54 M not reaching high pressure?
    • J
      jessica47Aug 6, 2025
      If your Kärcher Pressure Washer isn't reaching high pressure, several factors could be the cause. Ensure that you are using a 5/8 inch or larger garden hose. Check the garden hose for any kinks, leaks, or blockages that may be restricting the water supply. Fully open the water source to ensure adequate inlet water supply. Clean the water inlet filter by removing it and rinsing it in warm water. Lastly, make sure the spray wand is set to the high-pressure position.
  • R
    Rodney SullivanAug 10, 2025
    What to do if my Kärcher K 2.54 M is not dispensing detergent?
    • F
      frenchangelaAug 10, 2025
      If your Kärcher Pressure Washer is not dispensing detergent, check the detergent suction tube to ensure it's properly connected. If the detergent is too thick, dilute it, preferably using Kärcher detergent for best results. Also, inspect the filter on the detergent suction tube for clogs and rinse with warm water to remove any debris. If the detergent suction tube is damaged or clogged, remove the obstruction or replace the tube. Ensure the spray wand is in the low-pressure position. Finally, check the discharge nozzle for obstructions and clear them with a fine needle.
  • L
    Leah Richards DVMAug 14, 2025
    How to fix a noisy pump on a Kärcher K 2.54 M?
    • J
      Jonathan MccarthyAug 14, 2025
      If the pump on your Kärcher Pressure Washer is noisy, it might be sucking in air. Check that all hoses and fittings are airtight. Turn off the machine and purge the pump by squeezing the trigger gun until a steady flow of water comes out of the nozzle.
  • T
    Tracy JohnsonAug 18, 2025
    How to stop a Kärcher K 2.54 M garden hose connection from leaking?
    • J
      Jonathan DixonAug 19, 2025
      To stop a leak at the garden hose connection of your Kärcher Pressure Washer, first tighten the fittings. If the leak persists, check for a missing or worn rubber washer and insert a new one.
  • G
    Gary McculloughAug 23, 2025
    What to do if the spray wand on my Kärcher Pressure Washer leaks?
    • L
      Larry ThorntonAug 23, 2025
      If the spray wand on your Kärcher Pressure Washer is leaking, ensure it's properly attached to the trigger gun. Insert the spray wand into the trigger gun, carefully press it in against the spring tension, and twist it into the locked position.

Summary

Owner;User Responsibility

Kärcher Customer Support

Contact information for Kärcher customer support in USA, Canada, and Mexico.

Safety Alert Symbols

Specifications

Model Overview

Important Safety Instructions

Servicing of a Double-Insulated Product

Water Supply (Cold Water Only)

Assembly Instructions

Step 1: Transport Handle Assembly

Slide the transport handle into place.

Step 2: Wheel Installation

Insert wheels into the side holes of the unit until they click.

Step 3: High Pressure Hose Attachment

Connect the high pressure hose to the trigger gun using the locking slide.

Operating Instructions

Step 1: Connect High Pressure Hose

Connect the high pressure hose to the unit's high pressure outlet.

Step 2: Insert Spray Wand

Insert the spray wand into the trigger gun and twist to lock.

Step 3: Connect Garden Hose to Unit

Connect the garden hose to the unit's water inlet.

Step 4: Connect Garden Hose to Water Source

Connect the garden hose to the cold water source and turn on water.

Step 5: GFCI Plug-in and Test

Plug GFCI into outlet, press TEST and RESET buttons. Do not use if test fails.

Step 6: Unlock Safety and Purge Air

Unlock trigger gun safety lock and trigger gun to eliminate trapped air.

Step 7: Turn On Washer

Turn on the high pressure washer; motor starts when trigger is pulled.

Using the Accessories

Vario Power Spray Wand

Adjustable wand for varying cleaning pressure and detergent application.

Dirtblaster Nozzle

0° rotating pencil jet nozzle for maximum dirt cutting action, not for soft materials.

Working with Detergents

Step 1: Set Spray Wand to Low Pressure

Install Vario Power Spray Wand and set to the low pressure (Min.) setting.

Step 2: Fill Detergent Container

Fill a container with Kärcher detergent and place the filter end of the suction tube into it.

Step 3: Apply Detergent

Turn on washer, pull trigger to draw and apply detergent. Do not let it dry.

Step 4: Cleaning Up Detergent System

Flush the system with fresh water after use to remove residual detergents.

Taking a Break

Step 1: Release Trigger and Lock Safety

Release the trigger and engage the gun safety lock.

Step 2: Turn Off Pressure Washer

Turn the pressure washer to the OFF (O) position.

Shutting Down & Clean-Up

Step 1: Turn Off and Unplug

Turn the switch to OFF (0) and unplug the power cord from the outlet.

Step 2: Turn Off Water Source

Turn off the water supply.

Step 3: Release Water Pressure

Press the trigger to release any remaining water pressure.

Step 4: Disconnect Garden Hose

Disconnect the garden hose from the unit's water inlet.

Step 5: Disconnect High Pressure Hose

Disconnect the high pressure hose from the unit's high pressure outlet.

Step 6: Engage Safety Lock

Release the trigger and engage the gun safety lock.

Winterizing and Long-Term Storage

Care and Maintenance Instructions

Cleaning the Water Inlet Filter

Procedure to remove, clean, and reinsert the water inlet filter.

Cleaning the Detergent Filter

Procedure to remove and rinse the detergent filter.

Cleaning Tips

Deck Cleaning

Pre-rinse and clean decks at low pressure, then rinse at high pressure, overlapping sections.

House Siding Cleaning

Pre-rinse siding, apply cleaner at low pressure, rinse at high pressure from top to bottom.

Cement Patios, Brick and Stone Cleaning

Pre-rinse surfaces, apply cleaner at low pressure, rinse at high pressure.

Cars, Boats & Motorcycles Cleaning

Pre-rinse vehicles, apply cleaner at low pressure, rinse at high pressure, wipe dry.

Barbecue Grills, Outdoor Power Equipment & Gardening Tools Cleaning

Pre-rinse equipment, apply cleaner at low pressure, rinse at high pressure.

Patio & Lawn Furniture Cleaning

Cleaning Recommendations

Optional Cleaning Accessories

Pump Guard

Protects pressure washer from freezing, corrosion and wear, adds lubrication.

Water Pumping Kit

Accessory to quickly pump large quantities of water from a standing source.

25 Ft. Extension; Replacement High-Pressure Hose

Replacement or extension hose for Kärcher pressure washers up to 2500 PSI.

66 Extension Wand (Four piece)

Increases reach for cleaning high areas like second story windows.

Rotating Wash Brush

Soft Clean Washing Brush

25 ft. Pipe Cleaning Kit

Wet Sandblasting Kit

Detergent Foamer Attachment

T 100 Wide Area Surface Cleaner

Troubleshooting

Motor Will Not Start

Troubleshooting steps for when the motor fails to start, covering switch position and GFCI.

Unit Does Not Reach High Pressure

Troubleshooting for low pressure, including hose diameter, water supply, and filter.

Output Pressure Varies High and Low

Troubleshooting for fluctuating pressure, checking spray wand, water supply, and air in pump.

Discharge Nozzle Obstructed

Solution for an obstructed discharge nozzle: blow out or remove debris.

Calcified Gun, Hose, or Spray Wand

Solution for calcification: run distilled vinegar through the detergent suction tube.

No Detergent

Garden Hose Connection Leaks

Spray Wand Leaks

Pump is Noisy

Water Leaks from Pump

Oil Drip

Kärcher K 2.54 M Specifications

General IconGeneral
Power Consumption1.4 kW
Voltage220 - 240 V
Hose Length4 m
Pressure110 bar
Flow Rate360 l/h
Max. water inlet temperature40 °C
Frequency50 Hz
