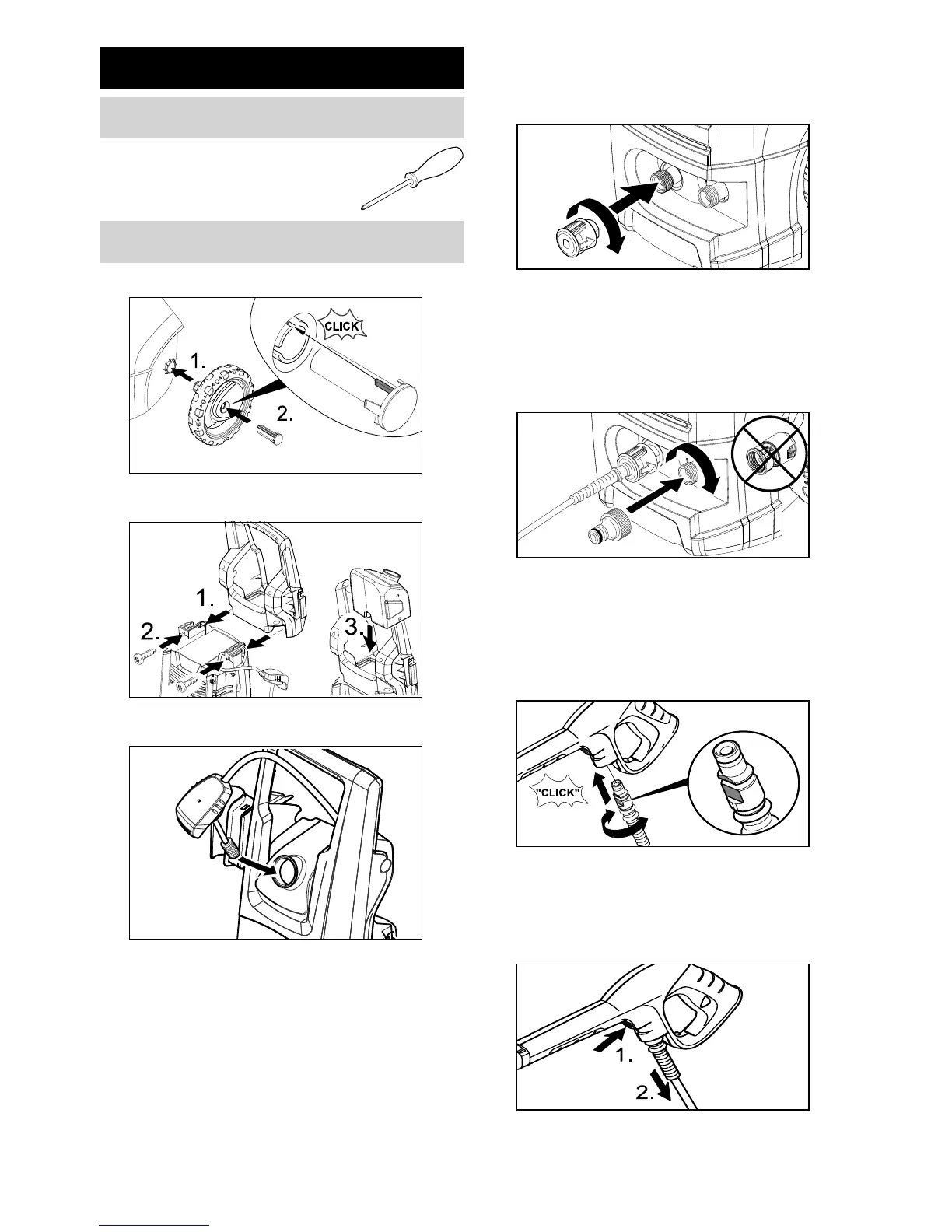

Kärcher K 3 - Assembly Instructions; Step 1: Wheels Assembly; Step 2: Handle Assembly; Step 3: Detergent Tank Attachment

6 English
Philips Screwdriver, me-
dium size (not supplied)
for final assembly
 STEP 1:
 STEP 2:
 STEP 3:
 STEP 4:
Fasten the quick connect to the high-
pressure outlet.
 STEP 5:
Install the water inlet connector to the
unit’s water inlet.
Note: Never attach the garden hose
connector to the unit’s water inlet!
 STEP 6:
Push the high-pressure hose into the
trigger gun until it locks audibly.
Note: Make sure the connection nip-
ple is aligned correctly.
Disconnect:
 Press the disconnect key on the trig-
ger gun and remove the high-pres-
sure hose from the trigger gun.
ASSEMBLY INSTRUCTIONS
Required tools
Assembly
