English 5

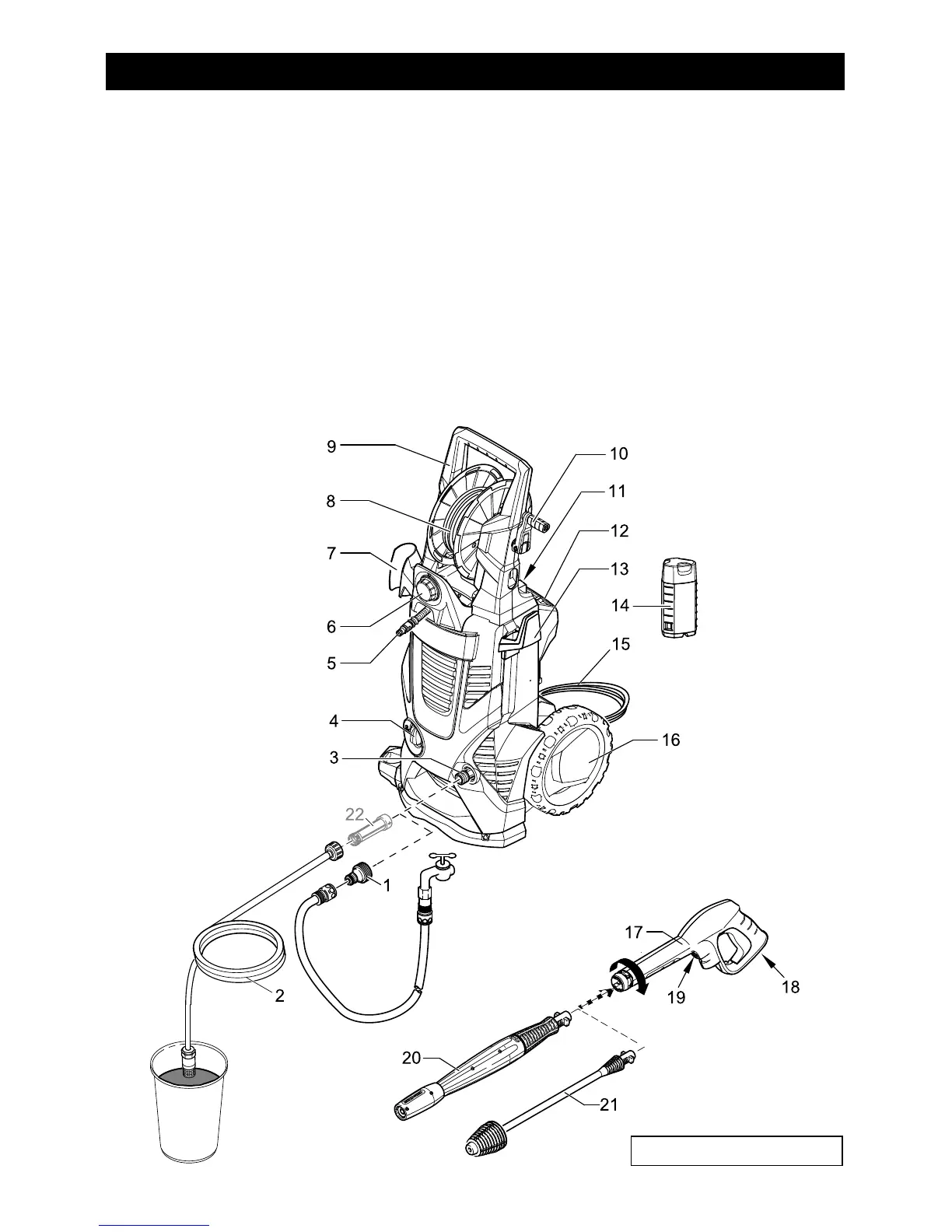

1 Coupling element for water connection
2 Suction hose
3 Water connection with integrated sieve
4 Appliance switch (0/OFF – 1/ON eco).
5 High pressure hose
6 Dosage regulator for detergent
7 Storage for trigger gun
8 High-pressure hose drum
9 Transport handle
10 Hand crank for hose drum
11 Storage of Plug 'n' Clean detergent bot-
tle with detergent connection
12 Storage for accessories
13 Storage hook for mains connection cable
14 Mains cable with mains plug
15 Plug 'n' Clean detergent bottle with
locking lid
16 Wheels
17 Trigger gun
18 Lock trigger gun
19 Key to detach the high pressure hose
from the trigger gun
20 Spray lance with pressure regulation
(Vario Power)
21 Spray lance with Dirtblaster
Optional
22 Water filter (order no. 4.730-059)
Description of the Appliance
Assembly see page 12
