16 English 5.906-709.0 Rev. 00 (11/14)
For this service group there is no special safety informa-
tion.
Observe general safety information!
Casing
Dirt and fluids are sucked through the suction hose into the
dirt receptacle via the floor nozzle.
The suction turbine generates the necessary vacuum in
the dirt receptacle.
In order to protect the suction turbine from damage caused
by water ingress, the float closes the air duct when the dirt
receptacle is full.
AC Service group suction system
010 Safety information

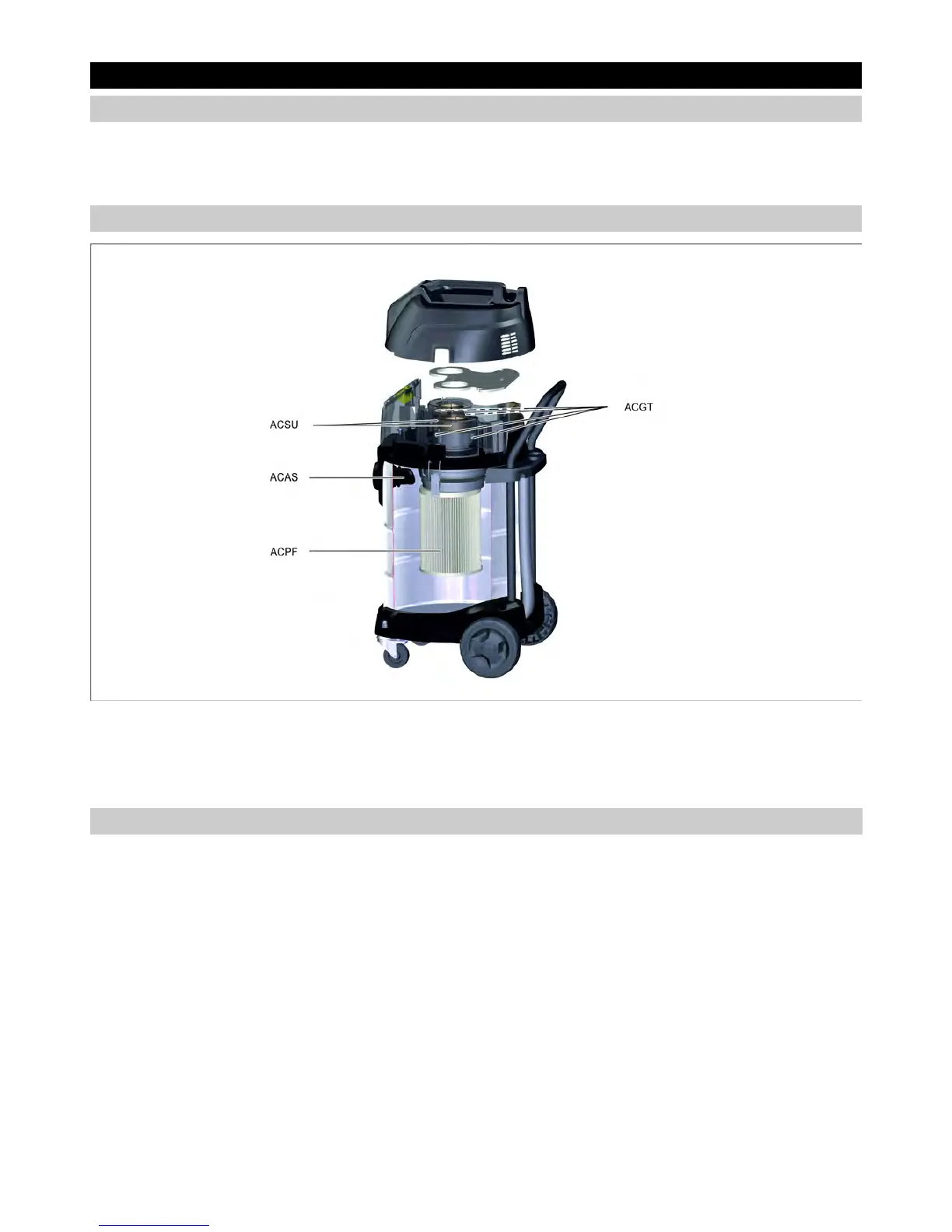

020 Overview
ACAS Uninstall / install connection nozzle
ACGT Uninstall / install sliding contacts suction turbines (2)
ACPF Uninstall / install cartridge filter
ACSU Uninstall / install suction turbines (2)
030 Function
