The service group does not contain any peculiarities.

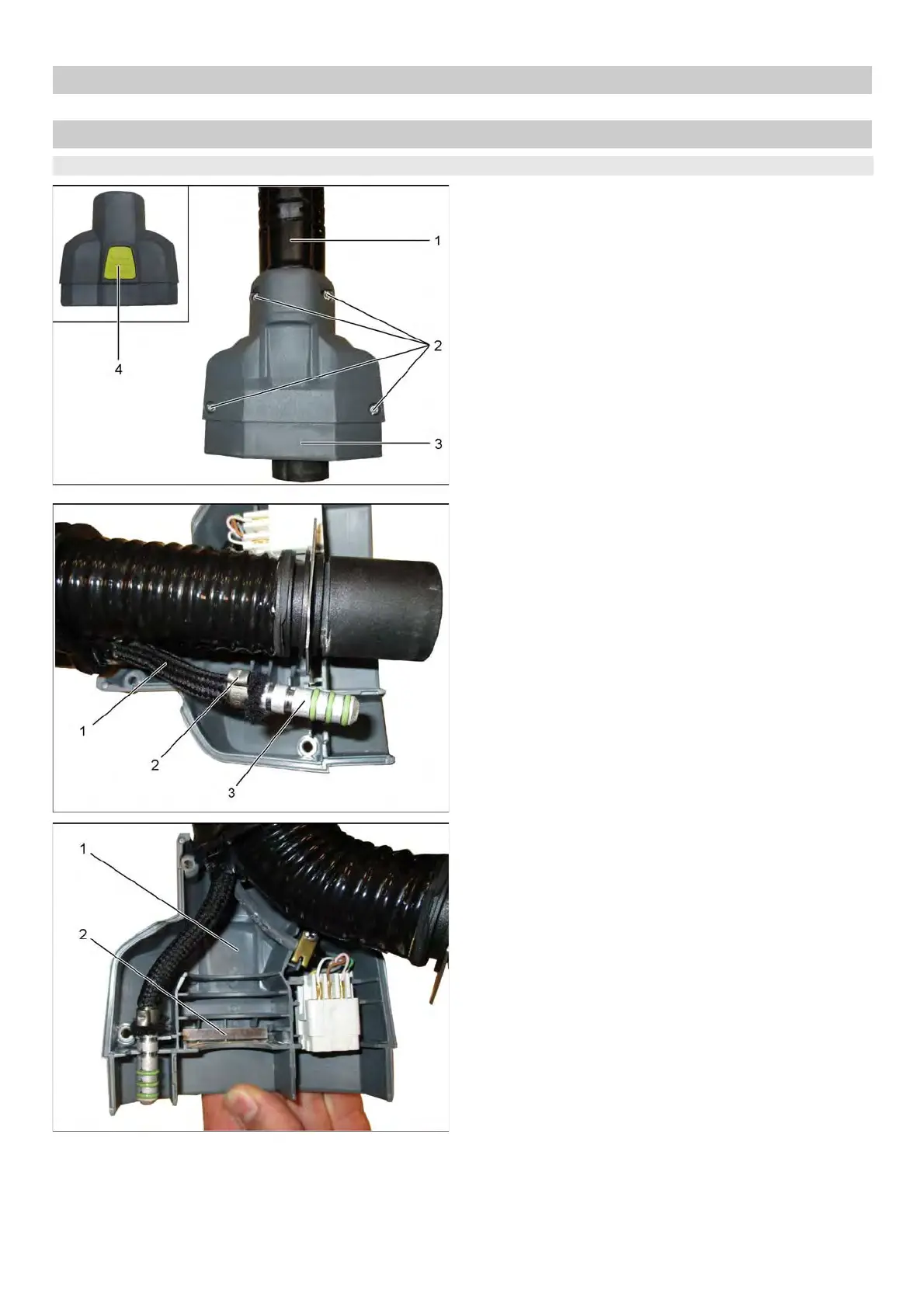

1Hose
2 Screws
3Casing
4 Housing top
Unscrew the screws.
Turn over casing.
Remove the top part of the casing.
1 Steam hose
2 Hose clamp
3 Steam nozzle
Remove hose clamp.
The hose clamp is destroyed upon removal.
Pull off the steam nozzle.
Replace the steam nozzle.
Installation information
Use special tool for fastening the hose clamp.
Vice-grip wrench for ear clamps.
1Casing
2Plate
Installation information
The plate must be in the recess.
030 Function
040 Service activities
AFDH Uninstall / install steam nozzle in the back
