8072.03 Karella Dartautomat CB-50
Assembly instruction
Hang the dartboard in a location where there is a minimum throwing distance of 3 meters. When throwing, stand
behind an imaginary line that is 2.37 meters away from the front surface of the board. The center of the board
(Bull’sEye)shouldbeataheightof1.73metersfromtheground(o󰀩cialtournamentheight).

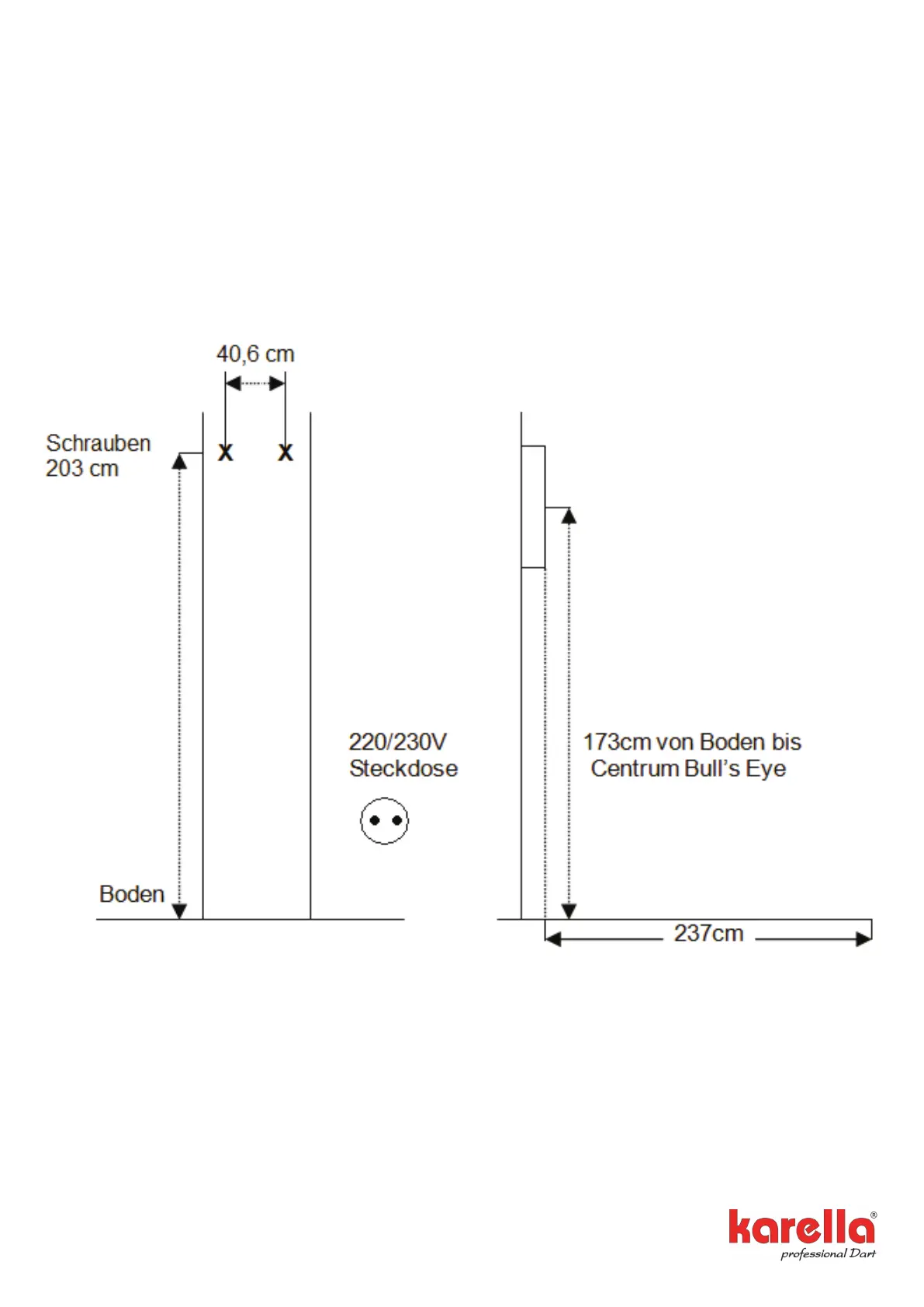

Tomounttheboardatthecorrectheight,markapointonthewallat203cmabovetheoor.Then,markasec-
ondpointatthesameheightwithadistanceof40.6cmfromtherstmarkedpoint.Thesetwomarksshould
nowbewhereyouattachthescrews.Pleaseconsiderthespecicconditionsofyourwallwheretheboardwill
be mounted. Ensure that the screws are screwed in as straight as possible so that the dartboard hangs straight
later.
Hang the dartboard by aligning the holes on the back of the dartboard with the screws. The screws may need to
be tightened until the board is securely against the wall.
Oche Line
Power Connection
The Electronic Soft Dartboard CB-50 is powered by a 5V DC, 1.0 A adapter. Insert the adapter plug into the
socket on the right side of the dartboard and plug the power plug into the electrical outlet. Ensure that the voltage
matches that of your household power supply.
Display Protective Film
Thedisplayofyourelectronicdartboardisprotectedbyatransparentlmtopreventscratchingduringtrans-
port.Werecommendremovingthislmbeforeyourrstgametoensurebettervisibilityofthedisplayarea.To
removeit,liftthelmfromonecorner,peelito󰀨,anddisposeofit.
