18
Front air-filled tyres (small): max. 350 Kpa / 50.7 PSI / 3.5 bar
Rear air-filled tyres (large): max. 350 Kpa / 50.7 PSI / 3.5 bar
10.
Wheelchair
This chapter contains information about product features for the occupant and
assistant.
10.1
Chassis
The chassis is the base of the wheelchair. It contains wheels, drive motors,
batteries, and electronics. The steel parts of the chassis are electrolytic
anodized and powder coated to ensure a long life without corrosion.
Each of the drive wheels is propelled by a powerful drive motor. These motors
also take care for the steering of the wheelchair.
10.1.1

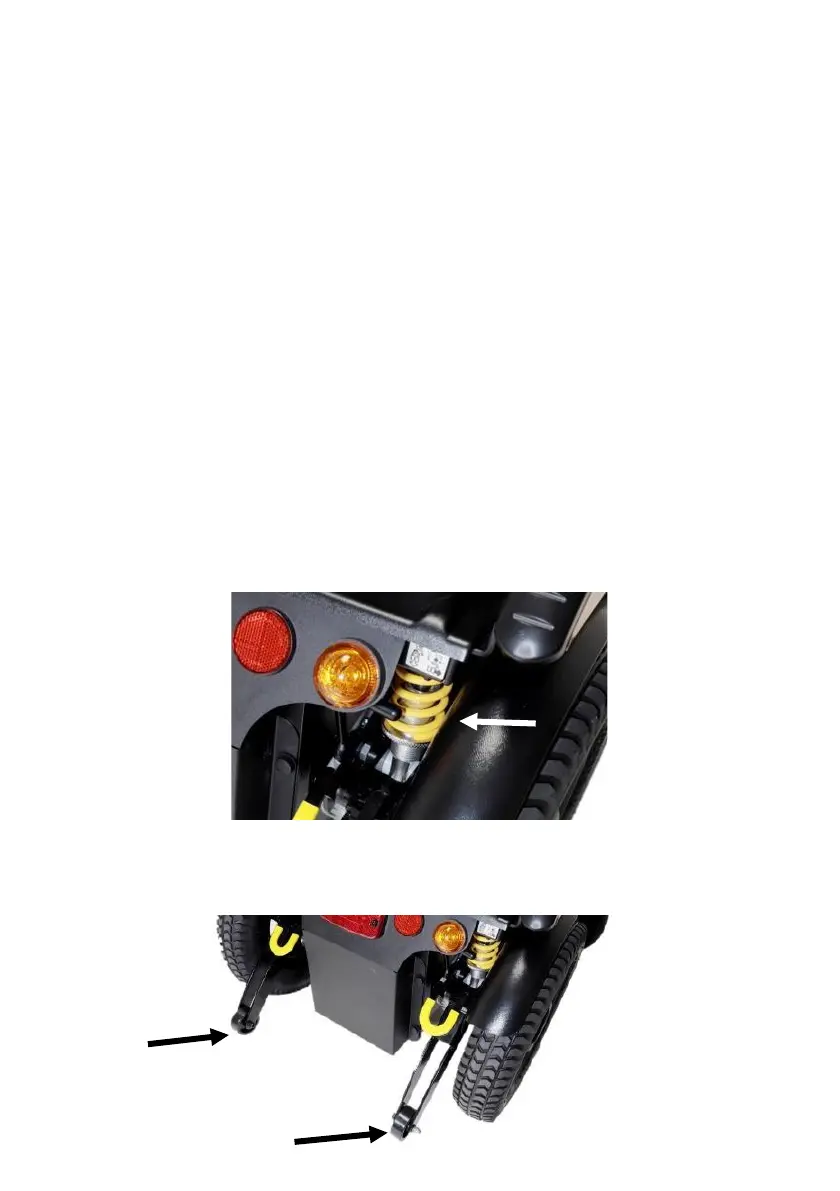

Chassis suspension
The chassis has suspension on the drive wheels.
10.1.2
Anti-tippers
The anti-tippers prevent the wheelchair tipping over at all time. The anti-
tippers are standard equipped and positioned at the rear of the chassis.
