ASSEMBLY / INSTALLATION: Wheel Magnet / Angle
Page 4

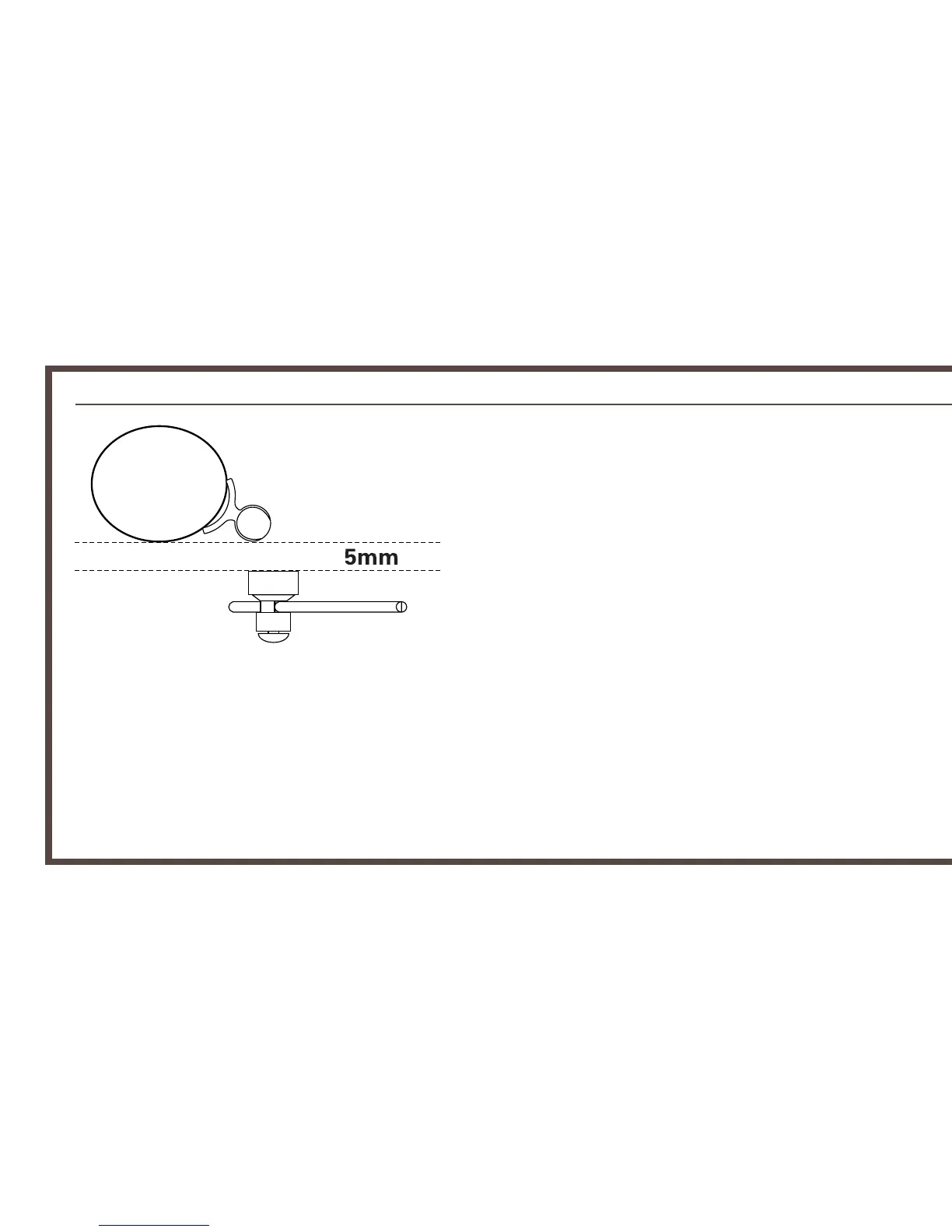

3. Adjust the position of the magnet and
sensor, the magnet must pass through
the sensor zone, the maximum clearance
distance between them is 5mm. If the
magnet and sensor are not close enough
the computer will not pick up a reading.
4. Once the wheel magnet and transmitter
are aligned properly, securely tighten both
in place and trim off the excess cable ties.
5. Lead the wire to the handlebars along the
outer cable of the brakes.
6. CAUTION: Adjust the wire length so that
it does not pull when the handlebars are
moved.
SENSOR
MAGNET
FORK
