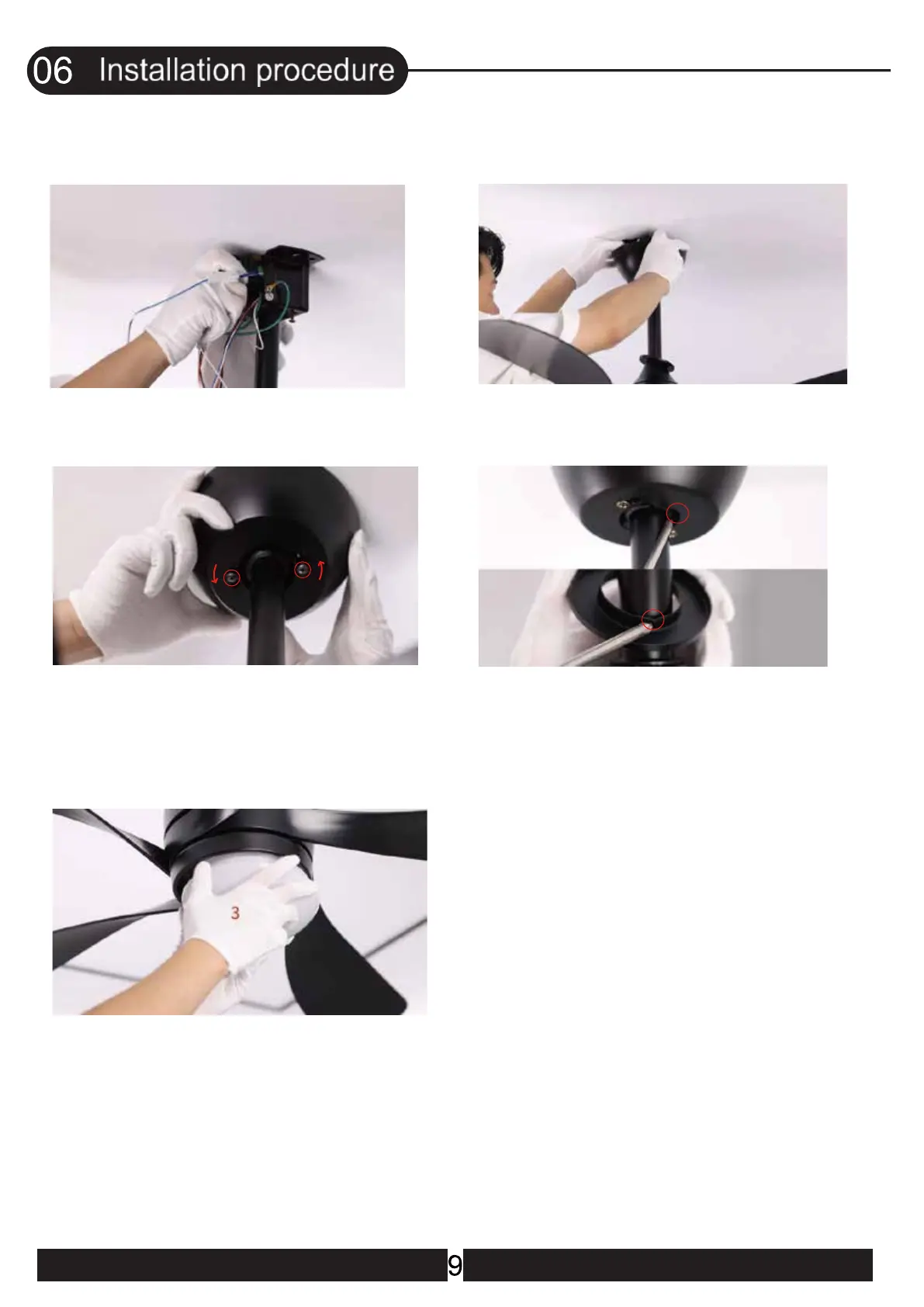

31.Put the receiver into the mounting
bracket
33.Wrap keyhole slots around the screws,
twist clockwise and tighten 2 screws
35.Install the lampshade and rotate it to lock
34.Lift the canopy cover to the canopy
32.Lift the cannopy into place so that the
screw holes are aligned
