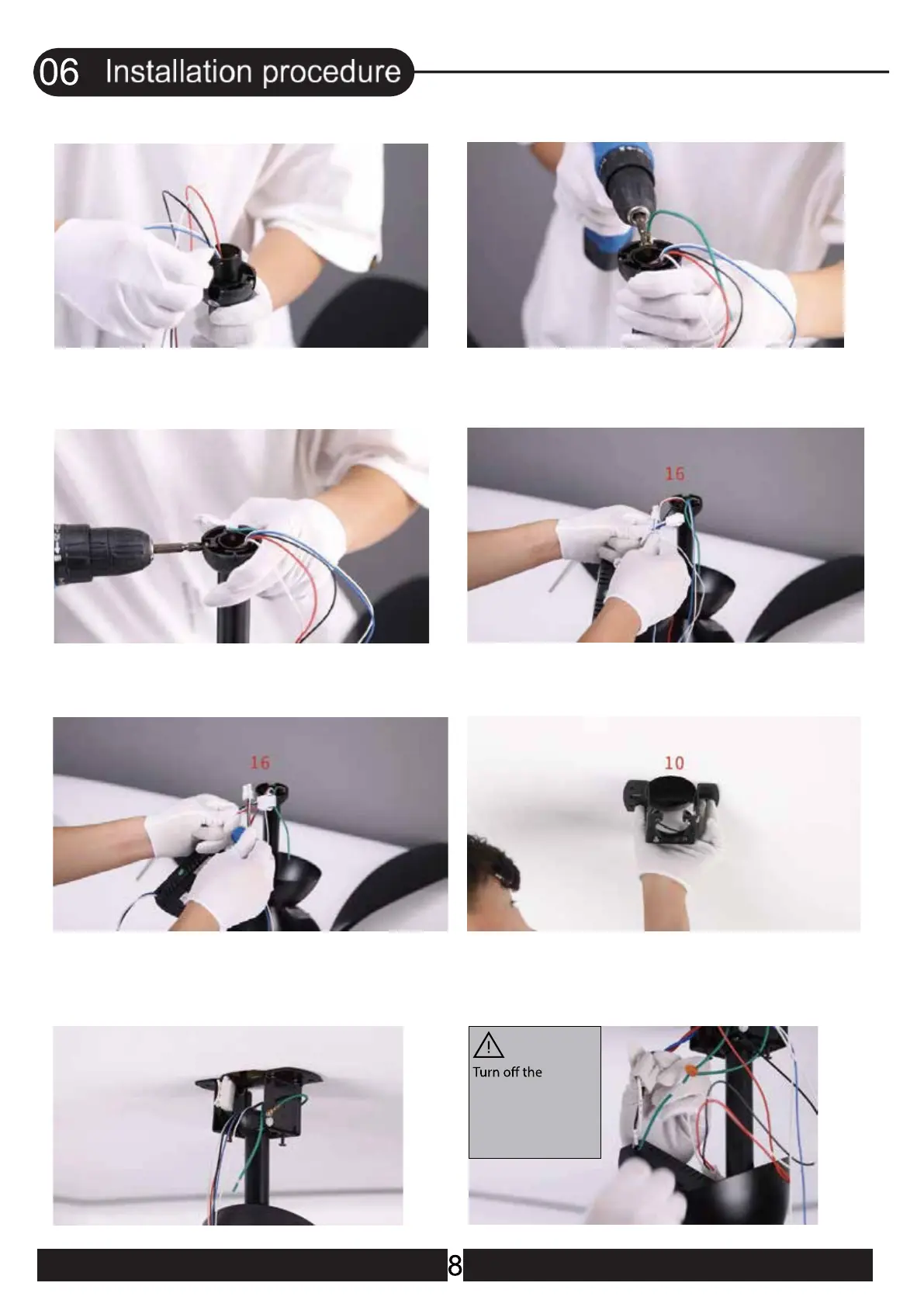

23.Insert the bolt
25.Insert another screw and tighten
the screw
27.Connect the wire from the ceiling fan
to the receiver(Red,White and Black wires)
28.Install the ceiling bracket with four self
tapping screws
26.Connect the wire from the ceiling fan to
the receiver(Blue and White wires)
29.Place the downrod ball into the slot in
the ceiling bracket. If the slot doesn't align
properly then rotate the ball
30.Use wire connecting nuts to connect the
two ground wires(Green)coming from the
downrod and hanging bracket
24.Fix the green ground wire with screw.
Align the screw hole and tighten the screw
WARNING:
electric power
during installation
and making wire
connection
