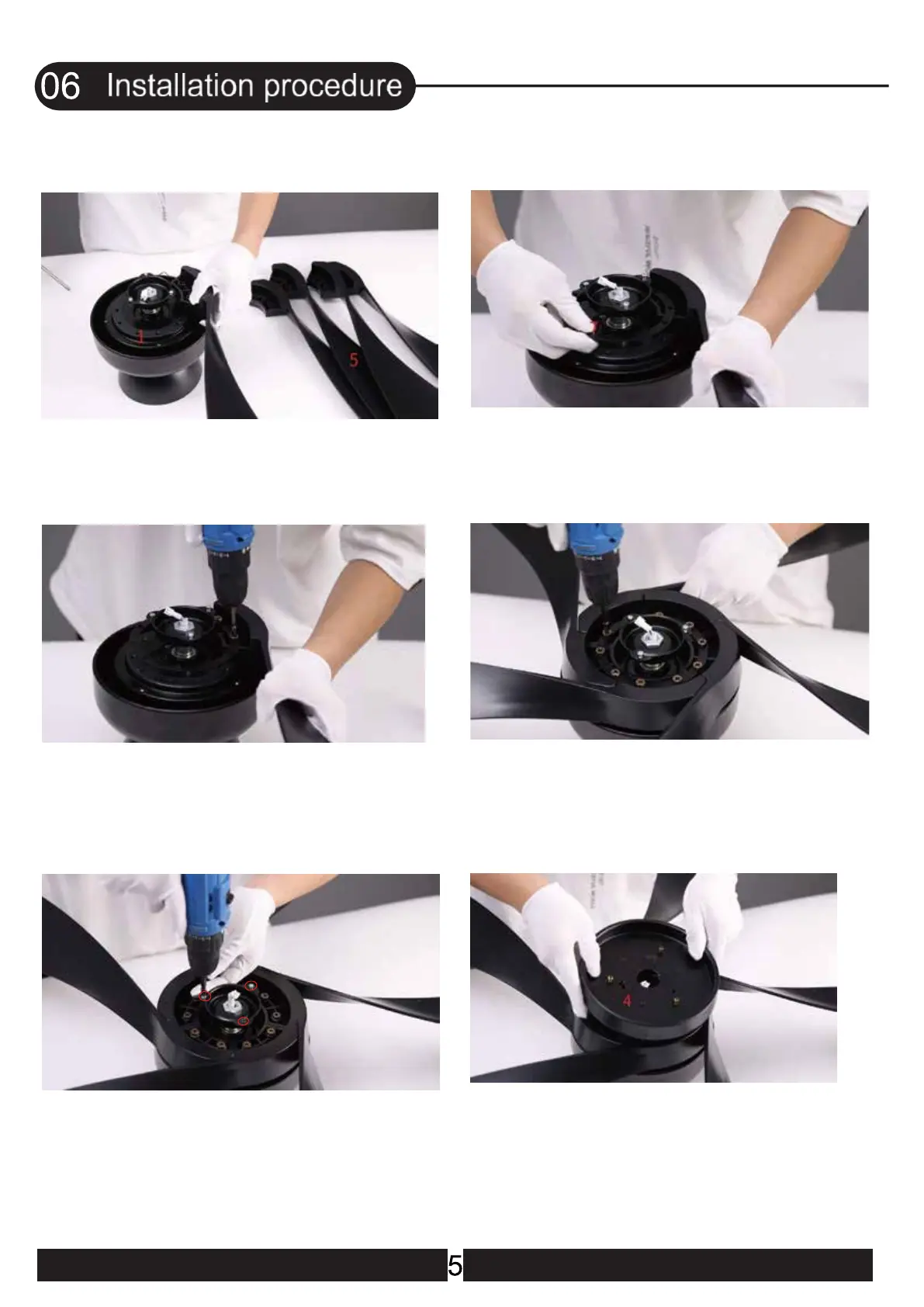

1.Place one blade on the motor and
align the screw holes
2.Place the reinforcement gasket
on the blade
4.Place the other blades one by one and
tighten the screws
5.Loosen and remove the 3 silver lamp
panel screws pre-locked on the
motor(They will be needed later)
3.Tighten the blade screws
6.Put on the lamp panel and feed the wire
plugs through the center hole
