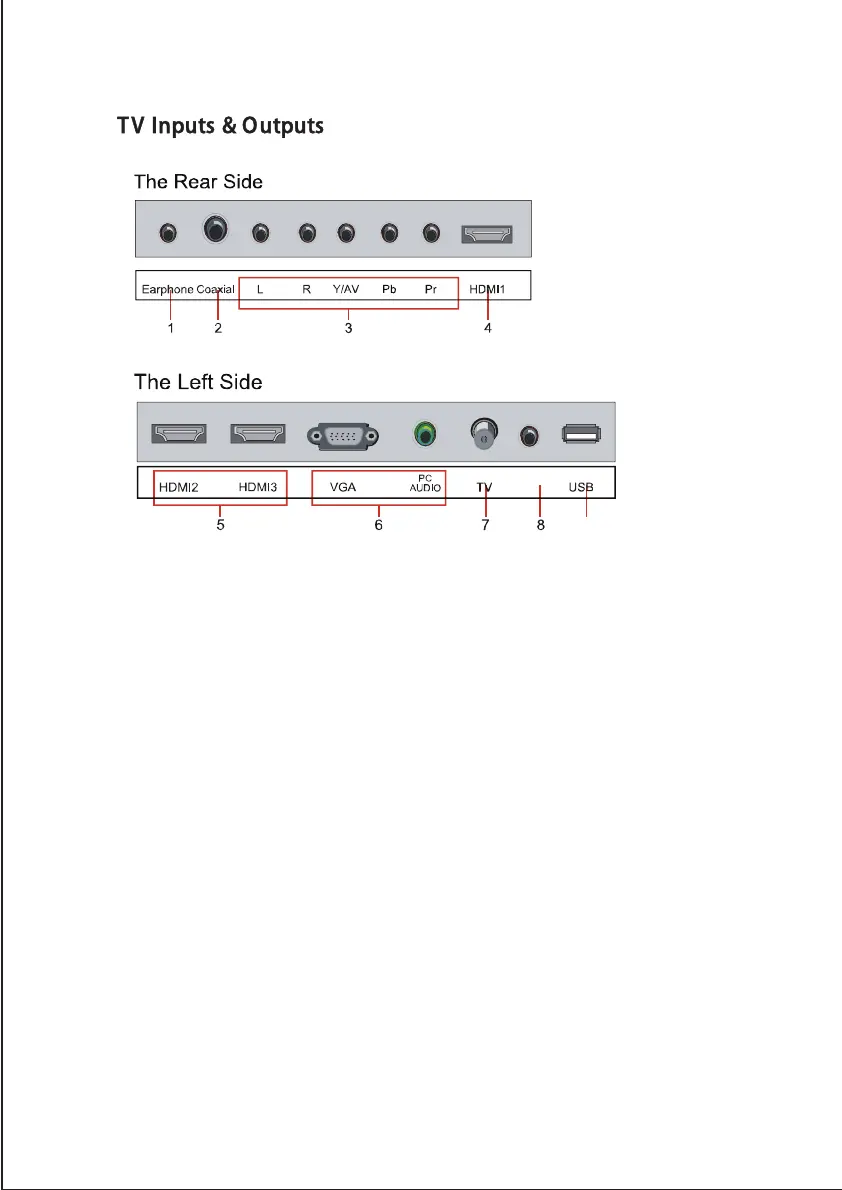

KC KC55V1 - TV Inputs & Outputs

9
7
LINE OUT
1. EARPHONE: Stereo output to headphones only.
2. COAXIAL: Coaxial output.
3. YPbPr/ AV&R/ L: AV & Interlace or Sequenal Component Video Input, “typical
use PS3 or X Box” .
4/5. HDMI1, HDMI2 & HDMI3: Input from HDMI source (High Definion).
6. VGA & PC AUDIO: PC input (RGB) & Stereo audio input from PC (Used in
connecng with VGA input).
7. TV: RF input from TV aerial or cable source.
8. LINE OUT: Audio output
9. USB: USB port.
