KDK M48SG - Page 13

13

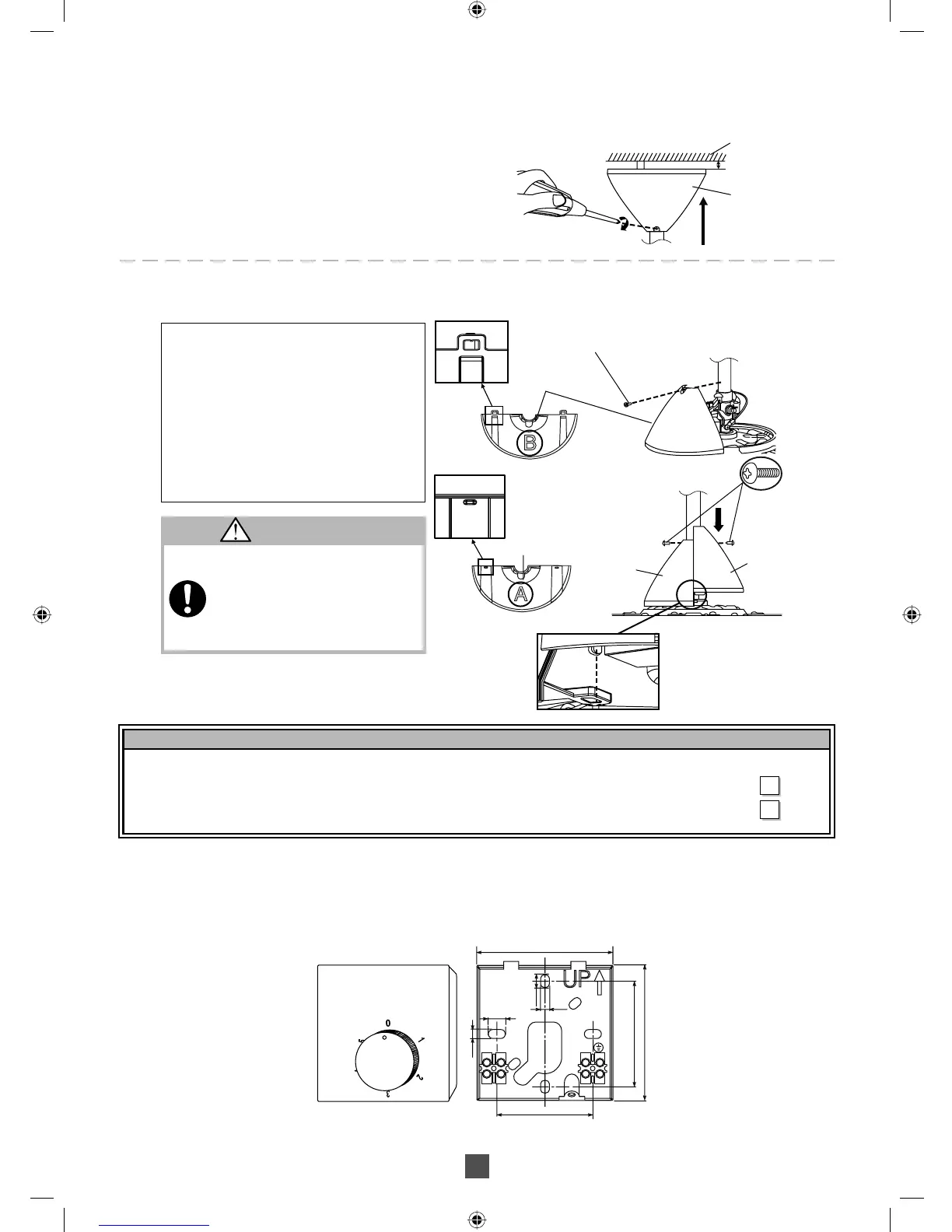

Fix Lower Canopy. Using Lower Canopy Screw which was removed from Pipe at Page 5, Step A1.
安裝下罩蓋。使用第5頁步驟A1.中從導管拆除的下罩蓋螺絲。
(i) Fix Lower Canopy B to Pipe by using
Lower Canopy Screw.
(ii) Fix Lower Canopy A to Lower Canopy B
by sliding it down as shown.
(iii) Fix Lower Canopy A to Pipe by using
Lower Canopy Screw.
(i) 使用下罩蓋螺絲將下罩蓋 B 固定於導管。
(ii) 如圖所示滑下下罩蓋 A 以固定於下罩蓋
B。
(iii) 使用下罩蓋螺絲將下罩蓋 A 固定於導管。
2
2
Lower Canopy A and B must be
fi xed correctly.
Can cause injury if Lower Canopy
drops.
下罩蓋A與B必須正確地安裝。
若下罩蓋掉落可以導致受傷。
CAUTION / 注意
(i)
(iii)
(ii)
>ABS-FR17<
>ABS-FR17<
Lower Canopy Screw /
下罩蓋螺絲
Lower Canopy Screw /
下罩蓋螺絲
Lower Canopy B /
下罩蓋 B
Lower Canopy A /
下罩蓋 A
Lower Canopy A /
下罩蓋 A
Lower Canopy B /
下罩蓋 B
Check Point After Installation /
安裝後的重點檢查
Check / 檢查
The Upper Canopy is securely fi xed.
上罩蓋已固定。
The Lower Canopy is securely screwed.
下罩蓋已鎖緊。
Adjust Upper Canopy position and fi x Upper Canopy
to Pipe fi rmly by screwing them as shown.
The distance of Upper Canopy and Ceiling is
approximately 5mm.
調整上罩蓋的位置，然後如圖所示將上罩蓋旋緊至導管。
上罩蓋與天花板的距離大約是 5 毫米。
Ceiling / 天花板
Approximately 5mm /
大約 5毫米
Upper Canopy /
上罩蓋
Fix the Canopy /
安裝罩蓋
F)
1
1
(85)
(62~64)
(7~8)
(4~5)
(4~5)
(85)
(57)
(9~10)
23
N
L1 L2
L1
The dimension for the Speed Regulator is shown in the Diagram.
調速器的尺寸為顯示在圖表中。
Installation of Speed Regulator /
調速器的安裝
G)
1
1
