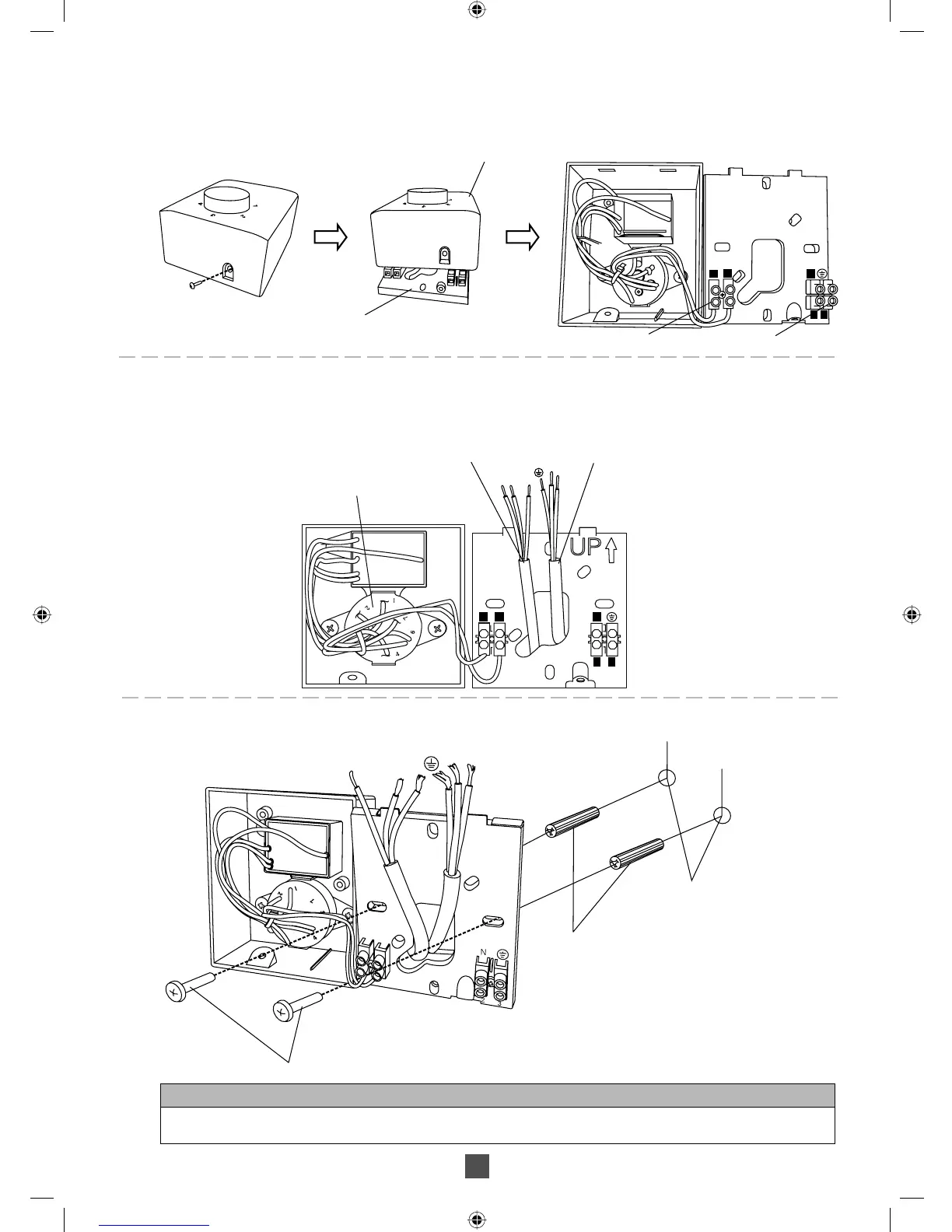

Fix the Speed Regulator box to the wall by screwing the screws as shown.
如圖所示鎖緊螺絲以安裝調速器箱至牆壁。
4
4
L
1
Wood Screw / 木螺絲
Holes / 孔
Wall Plug / 壁式插座
L
2
3
N
1
Insert the Power Cord (from the power supply) and the Lead Wire (from Motor Assembly) through the hole of the Speed
Regulator Base as shown.
如圖所示將電纜（自電源）及電線（自發動機組件）通過調速器底部的孔插入。
3
3
2 3
N
L 1
Switch /
開關
Power Cord (from power supply)
電纜（自電源）
Lead Wire (from Motor Assembly) /
電線（自發動機組件）
1
2
3
N
L
Loosen the screw from the Speed Regulator Cover. Open the Speed Regulator by lifting up the Speed Regulator
Cover from the base.
鬆開調速器蓋子上的螺絲。從底部提起調速器蓋子以打開調速器。
2
2
2
3
L
1
N
Speed Regulator Base / 調速器基地
Terminal 2 / 端子 2Terminal 1 / 端子 1
Screw / 螺絲
Regulator Cover/
調節器蓋子
Wood Screw and Wall Plug is not supplied.
木螺絲和壁式插座並不提供 。
