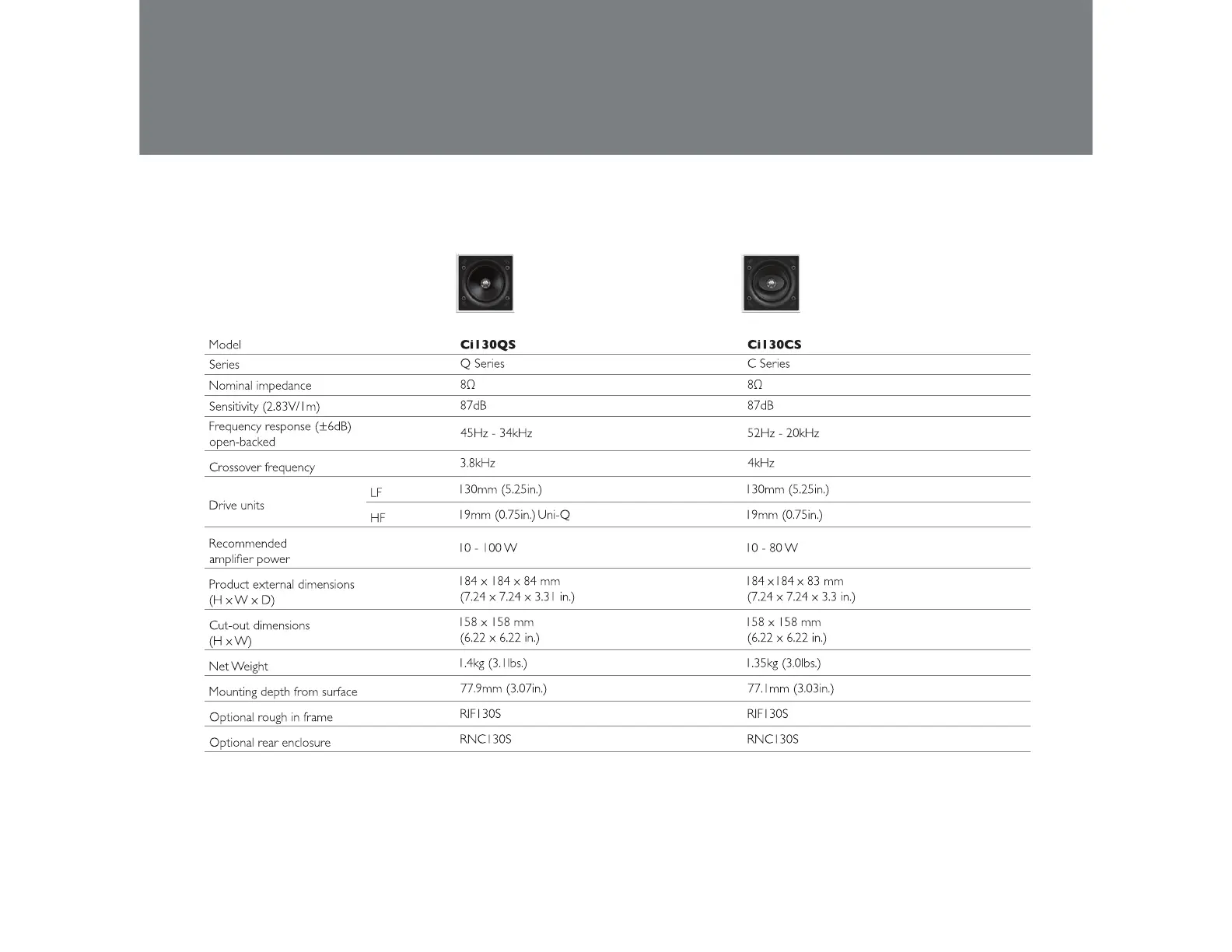

KEF Ci Series User Manual

Model Cil30QS Cll30CS
Series
Q Series C Series
Nominal impedance
80 80
Sensitivity (2 . 83V/ Im)
87dB 87dB
Frequency response (±6dB)
45Hz - 34kHz 52Hz- 20kHz
open-backed
Crossover frequency
3.BkHz 4kHz
LF
I 30mm (5.25in.) 130mm (5.25in.)
Drive units
HF
19mm (0.75in.) Uni-Q 19mm (0.75in.)
Recommended
10- IOOW 10- BOW
amplifier power
Product external dimensions
184 x 184 x 84 mm 184 x 184 x 83 mm
(H xWx D)
(7 . 24 X 7.24 X 3.31 in .) (7.24 X 7. 24 X 3.3 in .)
Cut-out
dimensions
158 x 158 mm 158 x 158 mm
(H xW)
(6.22 X 6.22 in.) (6.22 X 6.22 in.)
Net Weight
I
.4kg (3. I lbs.) 1.35kg (3.0lbs.)
Mounting depth from surface
77.9mm (3.07in.) 77.1 mm (3.03in.)
Optional rough in frame
RIFl30S RIFl30S
Optional rear enclosure
RNCl30S RNCl30S

KEF Ci Series Specifications

General

Type	In-wall/In-ceiling
Impedance	8 ohms
Grille	Paintable magnetic grilles
Tweeter	1-inch aluminum dome
Finish	White
