spécifications technische daten specifiche especificaciones especificações
technische gegevens specifikationer
DKNL
PESIDF

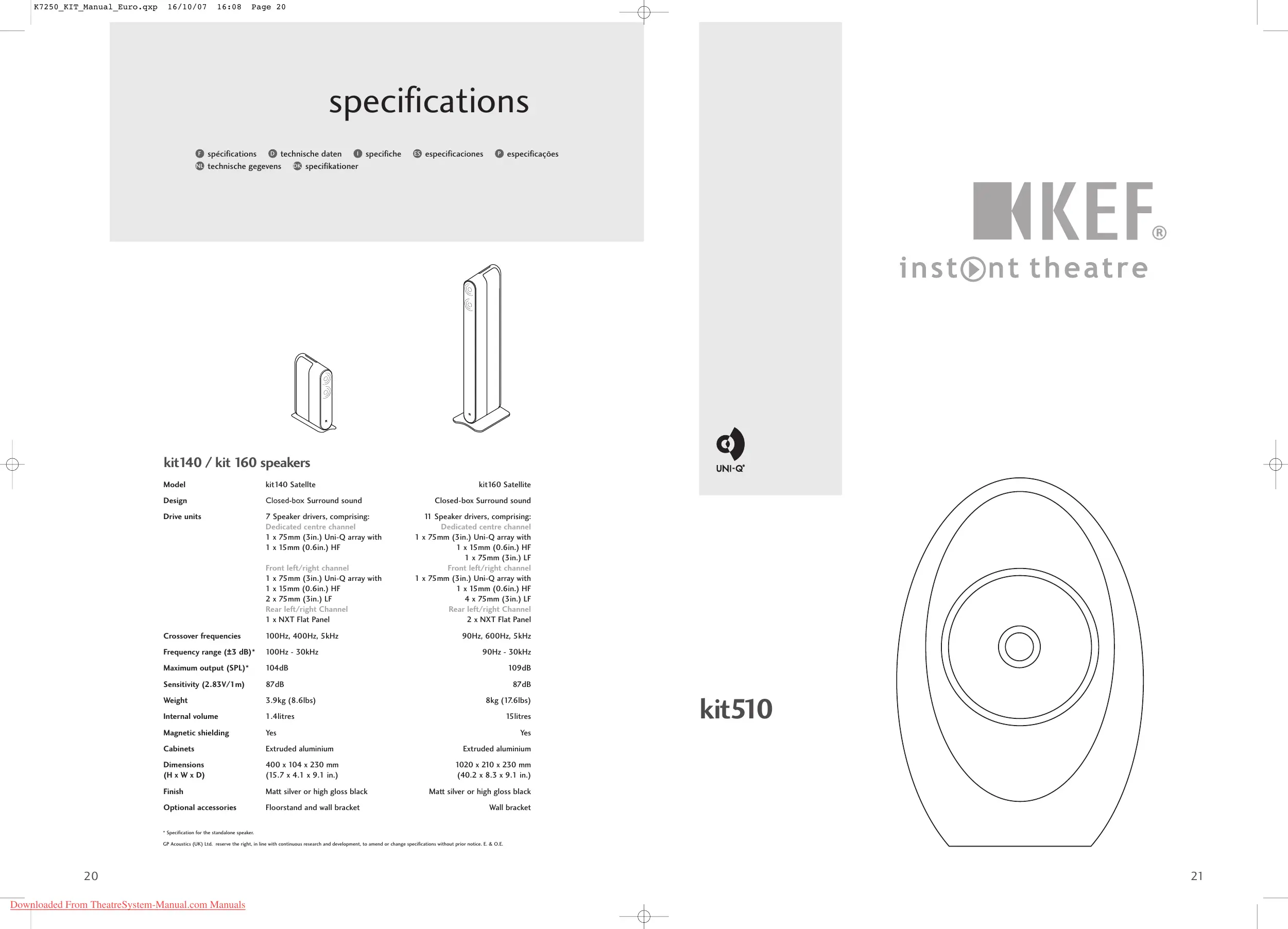

specifications
20 21
Model kit140 Satellte kit160 Satellite
Design Closed-box Surround sound Closed-box Surround sound
Drive units 7 Speaker drivers, comprising: 11 Speaker drivers, comprising:
Dedicated centre channel Dedicated centre channel
1 x 75mm (3in.) Uni-Q array with 1 x 75mm (3in.) Uni-Q array with
1 x 15mm (0.6in.) HF 1 x 15mm (0.6in.) HF
1 x 75mm (3in.) LF
Front left/right channel Front left/right channel
1 x 75mm (3in.) Uni-Q array with 1 x 75mm (3in.) Uni-Q array with
1 x 15mm (0.6in.) HF 1 x 15mm (0.6in.) HF
2 x 75mm (3in.) LF 4 x 75mm (3in.) LF
Rear left/right Channel Rear left/right Channel
1 x NXT Flat Panel 2 x NXT Flat Panel
Crossover frequencies 100Hz, 400Hz, 5kHz 90Hz, 600Hz, 5kHz
Frequency range (±3 dB)* 100Hz - 30kHz 90Hz - 30kHz
Maximum output (SPL)* 104dB 109dB
Sensitivity (2.83V/1m) 87dB 87dB
Weight 3.9kg (8.6lbs) 8kg (17.6lbs)
Internal volume 1.4litres 15litres
Magnetic shielding Yes Yes
Cabinets Extruded aluminium Extruded aluminium
Dimensions 400 x 104 x 230 mm 1020 x 210 x 230 mm
(H x W x D) (15.7 x 4.1 x 9.1 in.) (40.2 x 8.3 x 9.1 in.)
Finish Matt silver or high gloss black Matt silver or high gloss black
Optional accessories Floorstand and wall bracket Wall bracket
kit140 / kit 160 speakers
* Specification for the standalone speaker.
GP Acoustics (UK) Ltd. reserve the right, in line with continuous research and development, to amend or change specifications without prior notice. E. & O.E.
kit510
