Mini 360 Core Actuator Regulator Instruction Manual
Page 5 of 14 www.KegLand.com.au Last Updated 4/08/2020 11:09 AM
No nylon flare washer is required between a premium ball lock disconnect and the regulator.

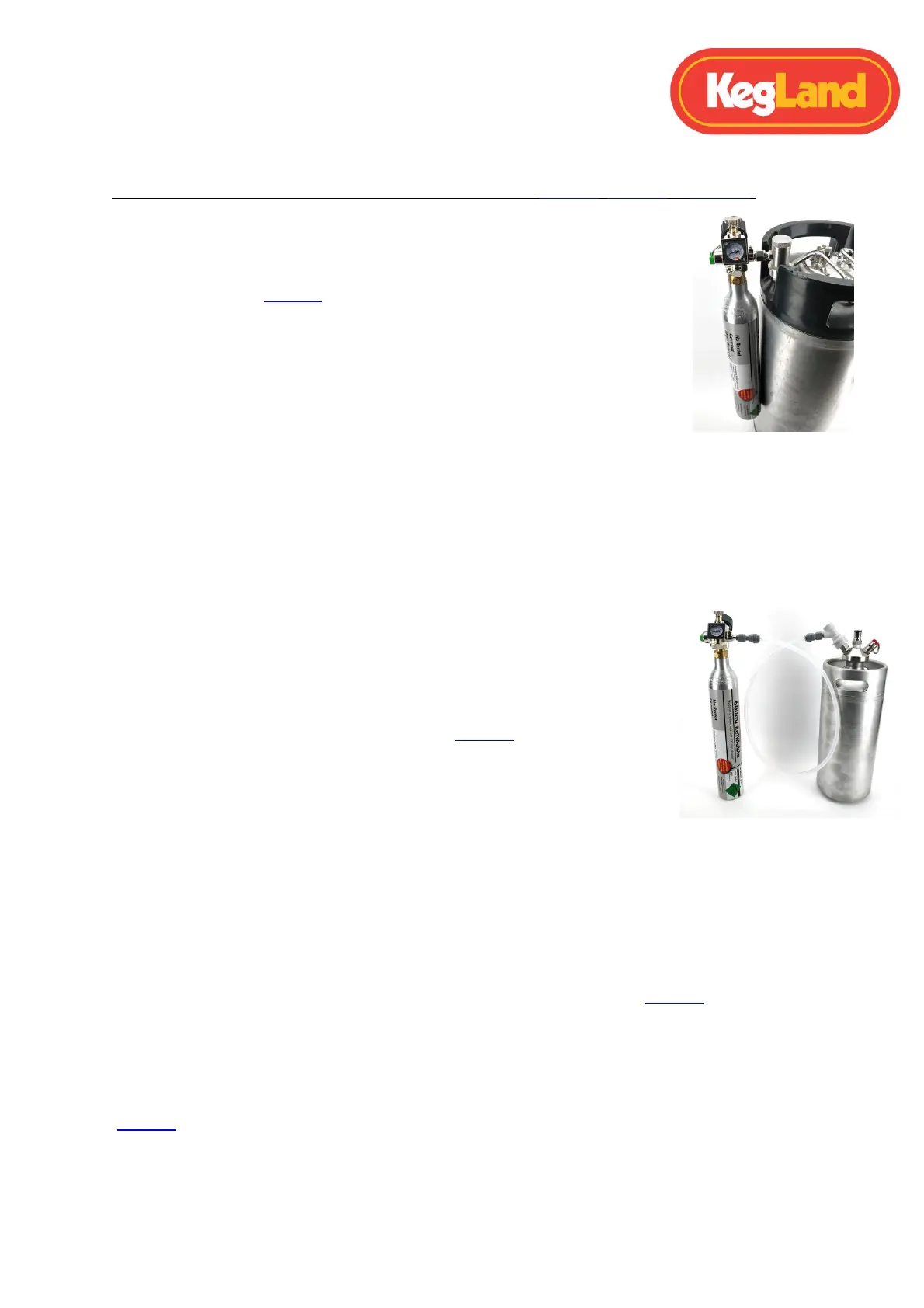

Connecting to a keg via a stainless ball lock disconnect MFL (KL09539, KL03001 or KL09041)
It is best to use the output adjacent to the gauge (output 2) when connecting the
regulator to a stainless ball lock disconnect.
A nylon flare washer (KL03032) is recommended to be used between the
stainless steel disconnect and the regulator.
If you do not have a nylon flare washer in place between the disconnect and
regulator you will need to tighten the 360° FFL fitting tightly using a spanner to
form a metal-metal seal.
Connecting to a keg via EVABarrier tubing
When using the regulator in a portable kegging system such as an esky or jockey box system then it
may be a good idea to connect the regulator to the ball lock disconnect on the keg via a length of
EVABarrier gas hose. This will allow the gas cylinder to be kept separately at a distance from the keg.
The regulator can be connected to EVABarrier gas hose via two different methods:
Connecting to a hose via a duotight fitting
The easiest way to connect 4mm ID or 5mm ID EVABarrier tubing to the output
of the mini regulator is to use a duotight fitting.
1. Attach the 6.5mm duotight compatible barb to the desired output on
the mini regulator.
2. Push a 6.5 mm x 8 mm duotight reducer (KL07481) onto the 6.5mm
duotight compatible barb.
3. Push 8mm OD EVABarrier tubing into the 6.5 mm x 8 mm duotight
reducer
Connecting via hose with stepless clamps directly onto the 6.5 mm barb
Alternatively you can connect 4mm ID or 5mm ID EVABarrier tubing to the output of the mini
regulator by clamping the hose directly onto the supplied 6.5 mm duotight compatible barb.
1. Push your 8mm OD EVABarrier tubing over the 6.5mm duotight compatible barb.
2. Secure the tubing onto the barb using a 7-10mm OD stepless clamp (KL06682).
If you find it difficult to get the tubing over the barb you can heat it up in warm water and stretch
the internal diameter using needle nose pliers.
To pressurise multiple kegs at once, split the 8mm OD EVABarrier hose using duotight tee-pieces
(KL02387).
