Mini 360 Core Actuator Regulator Instruction Manual
Page 9 of 14 www.KegLand.com.au Last Updated 4/08/2020 11:09 AM
Lubricating Thumb Screw
If the regulator is new and has not been lubricated or alternatively if the thumb screw is a bit too
tight then application of some food grade lubricant may be necessary.
Step 1.
Disconnect the regulator from the pressure source.
Step 2.
Turn the thumb screw all the way anti-clockwise so it’s out as far as it will go.
Step 3.

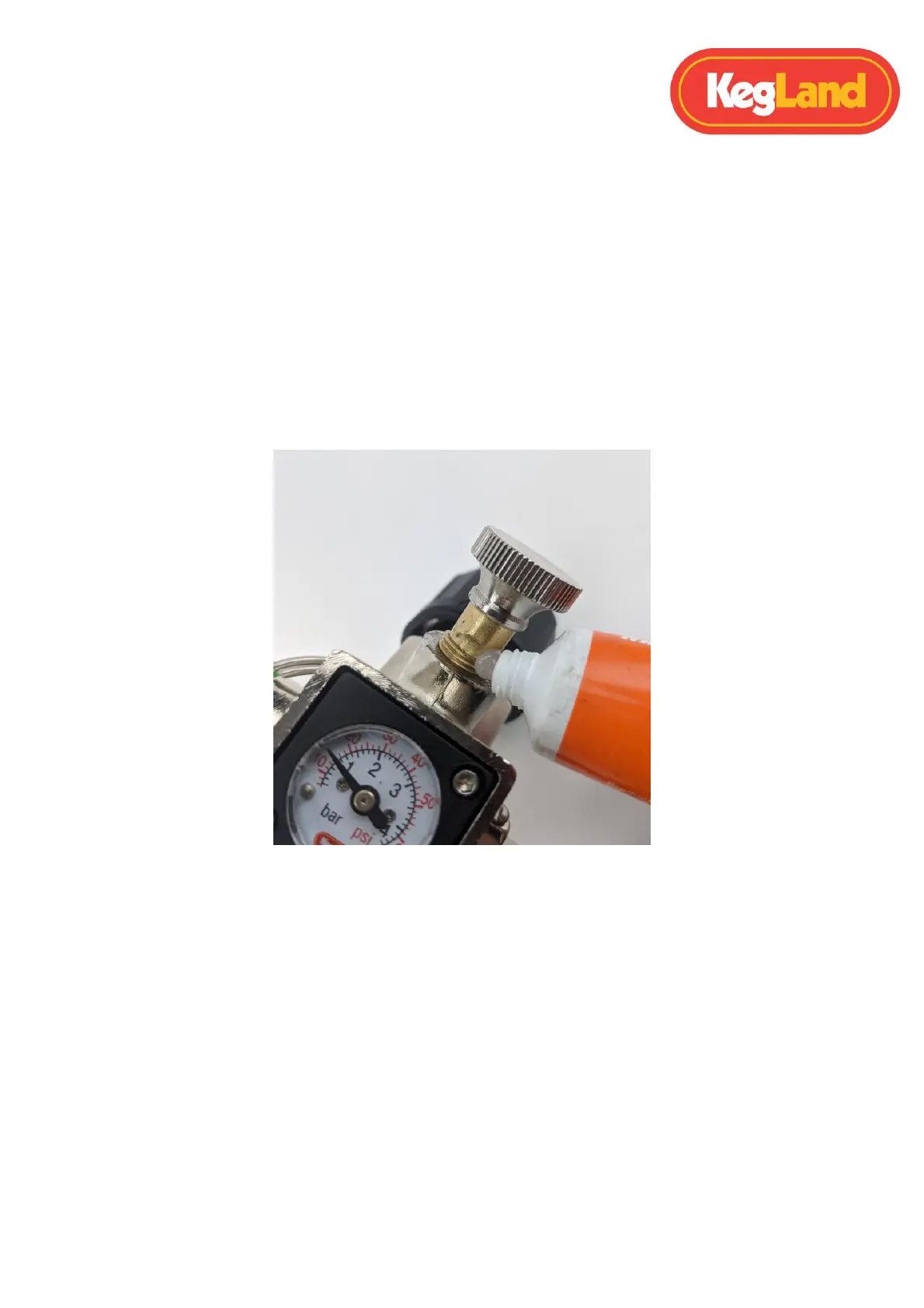

Apply food grade lubricant to the thread or neck of the thumb screw as shown below. Rotate the
thumb screw in both directions to spread the lubricant over the thumb screw components.
NOTE: It is perfectly normal for the thumb screw to be tight when under pressure. When the
regulator has a cylinder attached and is under pressure it is completely normal for the thumb screw
to be more difficult to turn but with moderate force it still will move. When the pressure is released
it will become easier to turn.
