Keiser 3103XX - Set Posts and Connect Wire; Post Setup and Wire Connection

HALF RACK, HALF RACK LONG BASE
ASSEMBLY INSTRUCTIONS
13
5

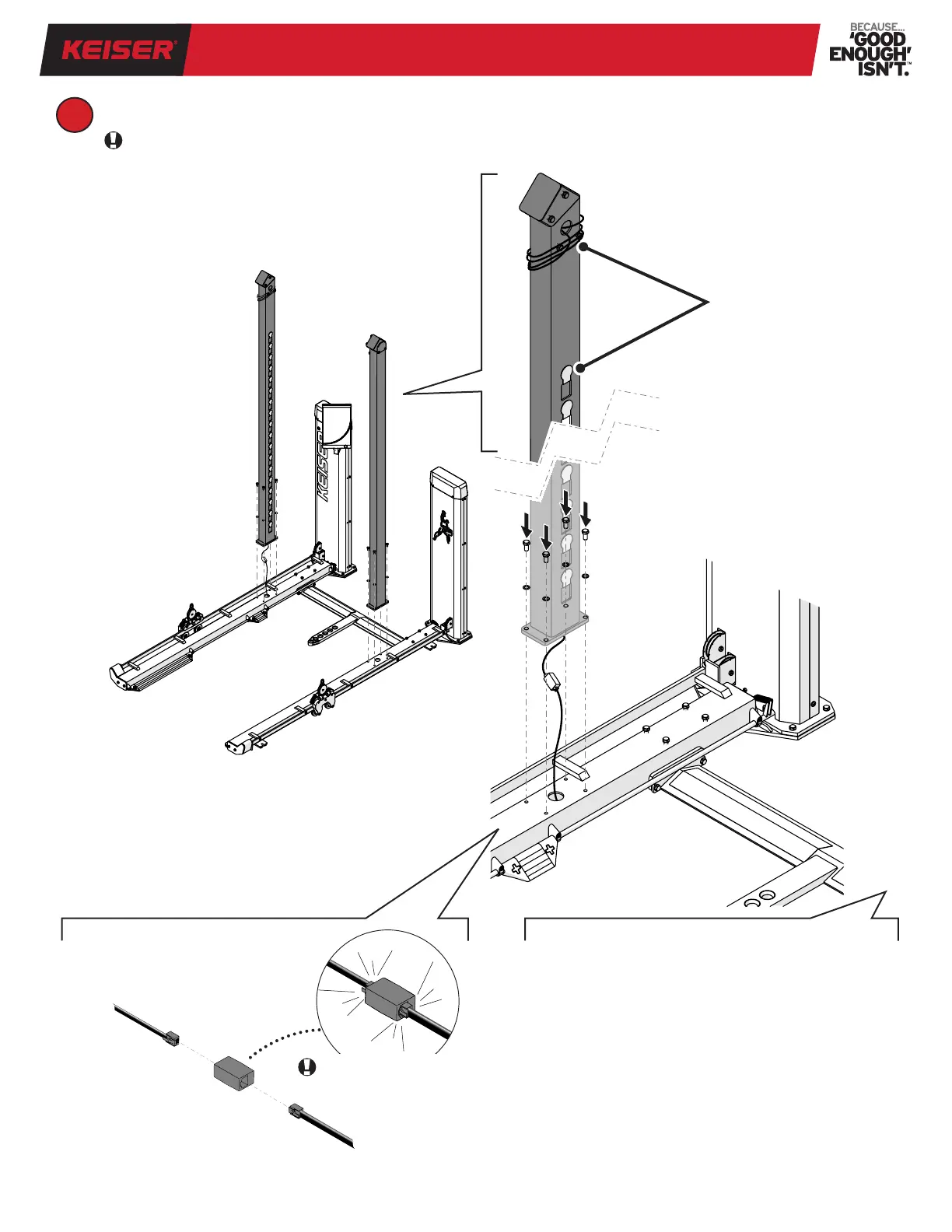

SET POSTS
CONNECT COMMUNICATION WIRE
IMPORTANT: Click sound
conrms proper connection.
Communication Port
and Decals face inward
Repeat the process for the Left Post.
NOTE: There is no Communication Wire connection
at the Left Post.
RIGHT POST
(with COMMUNICATION WIRE)
LEFT POST
RIGHT
POWER MODULE
IMPORTANT: DO NOT TIGHTEN BOLTS UNTIL FINAL INSTALLATION. PARTS MUST BE ABLE TO
ADJUST FOR EASY BOLT HOLE ALIGNMENT.
RIGHT
REAR
POST
BOTTOM
FRAME
Push excess line back into the Bottom Frames.
