Keiser 3103XX User Manual

HALF RACK, HALF RACK LONG BASE
ASSEMBLY INSTRUCTIONS
05

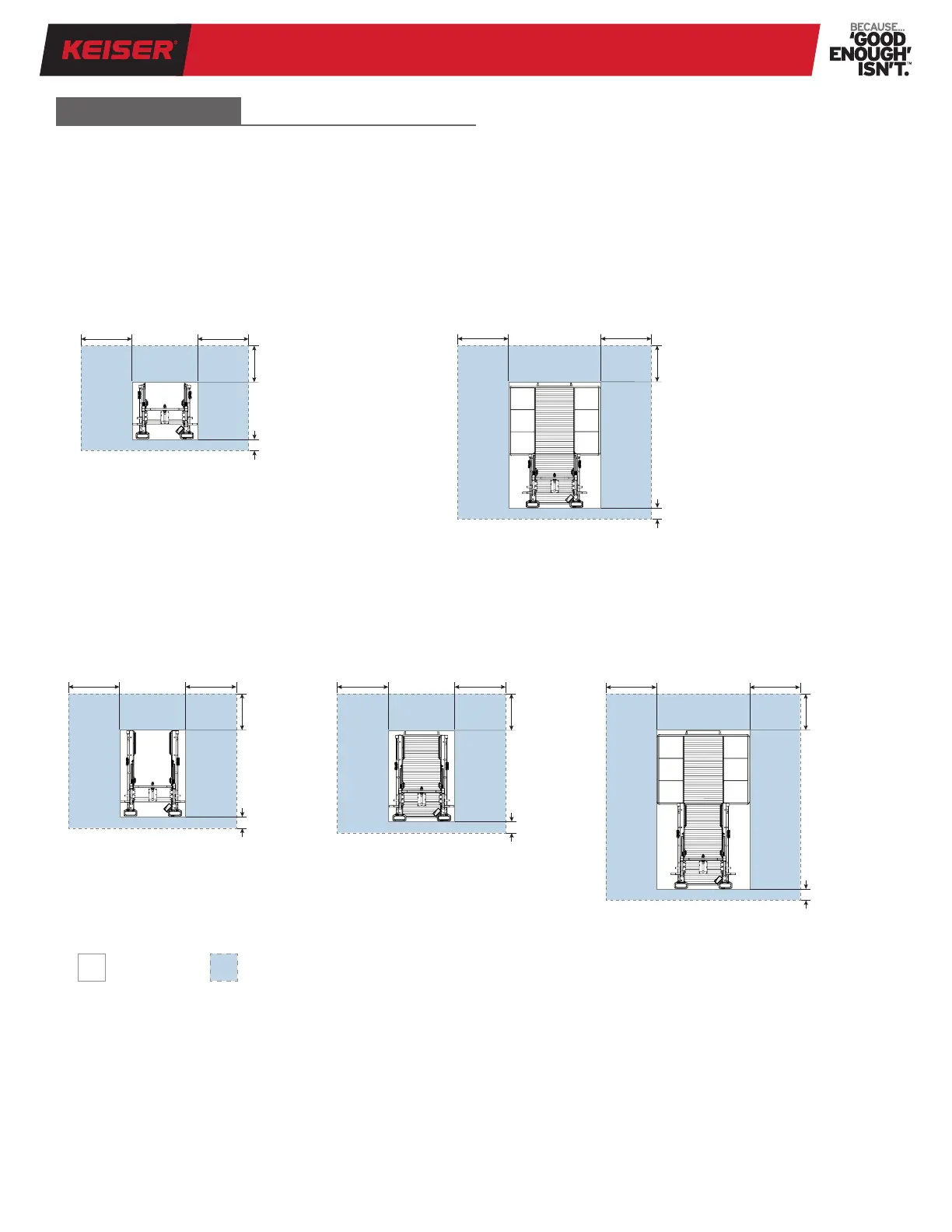

Figure 2. Training Space
The minimum recommended amount of Free Space around the equipment is 72 inches (1,829 mm) for the sides, 48 inches
(1,219 mm) for the front, and 12 inches (305 mm) for the rear (see Figure 2). Half Racks arranged side by side may share the
Free Space.
TRAINING SPACE
3105, 3106 Half Rack Long Base with
Olympic Lifting Insert Platform
3105, 3106 Half Rack Long Base
with Insert Platform
3103, 3104 Half Rack
with Olympic Lifting Insert Platform
3103, 3104 Half Rack
3105, 3106 Half Rack Long Base
FOOTPRINT FREE SPACE
Footprint (DxW):
61 in x 71 in (1,550 mm x 1,804 mm)
Footprint (DxW):
93 in x 71 in (2,362 mm x 1,804 mm)
Footprint (DxW):
98 in x 71 in (2,489 mm x 1,804 mm)
Footprint (DxW):
172 in x 100 in (4,369 mm x 2,540 mm)
Footprint (DxW):
138 in x 100 in (3,505 mm x 2,540 mm)
12 in
(305 mm)
72 in
(1,829 mm)
72 in
(1,829 mm)
48 in
(1,219 mm)
12 in
(305 mm)
72 in
(1,829 mm)
72 in
(1,829 mm)
48 in
(1,219 mm)
12 in
(305 mm)
72 in
(1,829 mm)
72 in
(1,829 mm)
48 in
(1,219 mm)
NOTE: Optional Accessories (Dip Bar Station, Land Mine, Chin Up Bar) may require additional Free Space, depending on the accessory type and exercise
routine. Plan space accordingly to allow for a safe workout, free from obstruction.
12 in
(305 mm)
72 in
(1,829 mm)
72 in
(1,829 mm)
48 in
(1,219 mm)
12 in
(305 mm)
72 in
(1,829 mm)
72 in
(1,829 mm)
48 in
(1,219 mm)
