When using a y-cable or adapter to split the QuNexus CV outputs to get
mono outputs, the tip is black (or white) and the ring is red. This can vary
from cable to cable.
When using a cable or adapter to split the QuNexus CV input port to get
2 mono inputs and 5V power: tip is white (or black), 1st ring is red, and
the 2nd ring is yellow. This can vary from cable to cable.
Tip: After splitting the outputs to mono, make sure to use mono adapters and cables to get the
signal the rest of the way to your CV device(s). After splitting the inputs if you plan to use an
Expression Pedal, make sure to use stereo adapters and cables to get the tip and the first ring
to an Expression Pedal.
Note about Expression Pedals: Not all Expression Pedals work well. Some are noisier than
others. Yamaha Pedals are known to misbehave because they don’t function as a voltage
divider. We recommend the Roland EV-5.
CV Cable Kit
The QuNexus CV Cable Kit is an optional add on, which makes it easy to gather the cables and
adapters needed to convert MIDI to CV and vice versa using QuNexus.

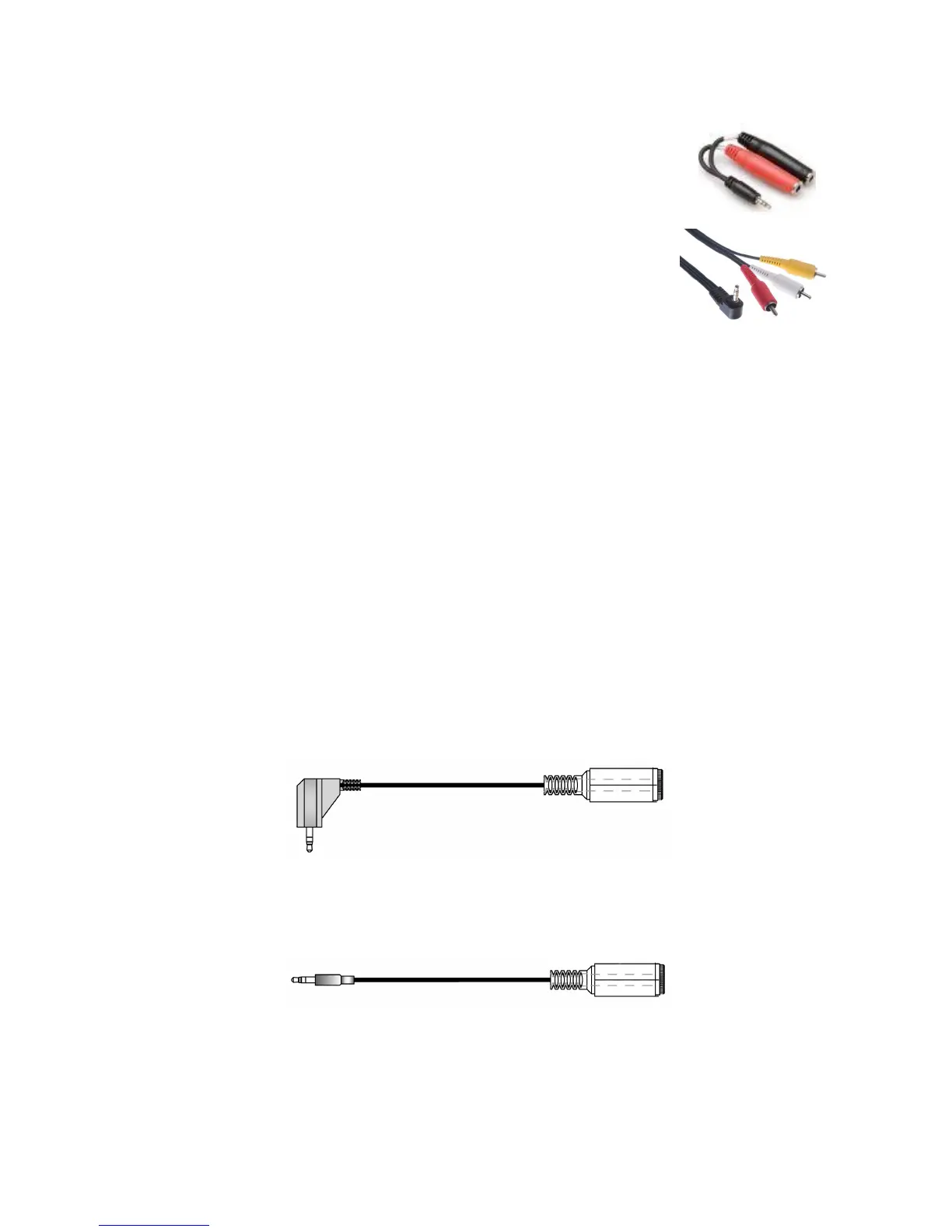

One of each of the following cables/adapters is included in the CV Cable Kit:
CV INPUT:
right angle 3.5mm (1/8in) stereo plug to 1/4in stereo jack
This is helpful when connecting an Expression Pedal to the CV 1-2 in port
3.5mm (1/8in) stereo plug to 1/4in mono jack
This is helpful when connecting a Sustain Pedal to the CV 1-2 in port
