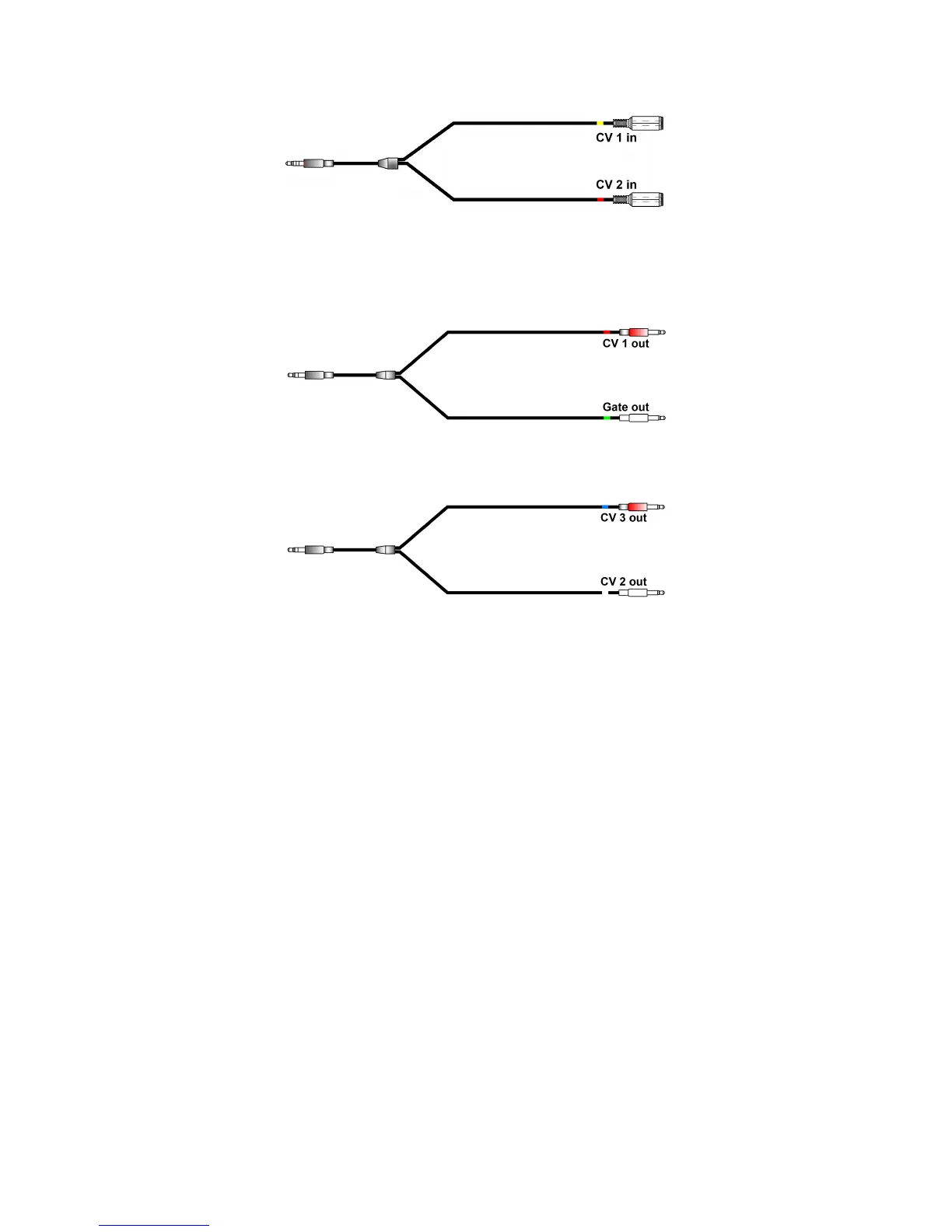

3.5mm (1/8in) TRRS plug to dual 3.5mm (1/8in) stereo jacks
This is helpful for splitting the CV input port into CV1 (expression pedal) and CV2
Tip: make sure to use stereo 1/8in cables to plug into the jacks
CV OUTPUT:
3.5mm (1/8in) stereo plug to dual 3.5mm (1/8in) mono plugs
This is helpful for splitting the first CV output into Gate and CV1
3.5mm (1/8in) stereo plug to dual 3.5mm (1/8in) mono plugs
This is helpful for splitting the second CV output into CV2 and CV3
CV to MIDI Data Conversions
Output: By default, QuNexus sends different data out
the 4 CV outputs:
Gate - Note ons and offs. Note ons are expressed as 5
volts.
CV1 - Pitch
CV2 - Mod (CC#1)
Tip: Nothing will output if the preset does not
utilize CC#1 (Preset A does not utilize CC#1).
CV3 - Pitch Bend
This data can come from the Keyboard, USB Port 3, or
the MIDI Expander. By default, MIDI must be received
from Channel 2 if sending from USB Port 3 or the MIDI
Expander.
Input: By default, QuNexus receives
data from the 2 CV inputs and
converts them to MIDI messages:
CV1 - CC#112
CV2 - CC#113
By default, this data is sent on
Channel 2 to USB Port 3 and the
MIDI Expander.
