Keithley 2260B-80-13 User Manual

ANALOG CONTROL
111
Connection
Power
supply
Switch
Analog
connector
24
2
Output
Terminal
2 core shielded
wire or twisted
pair
 Pin2 → Switch
 Pin24 → Switch
 Wire shield → negative (-) output terminal
Steps

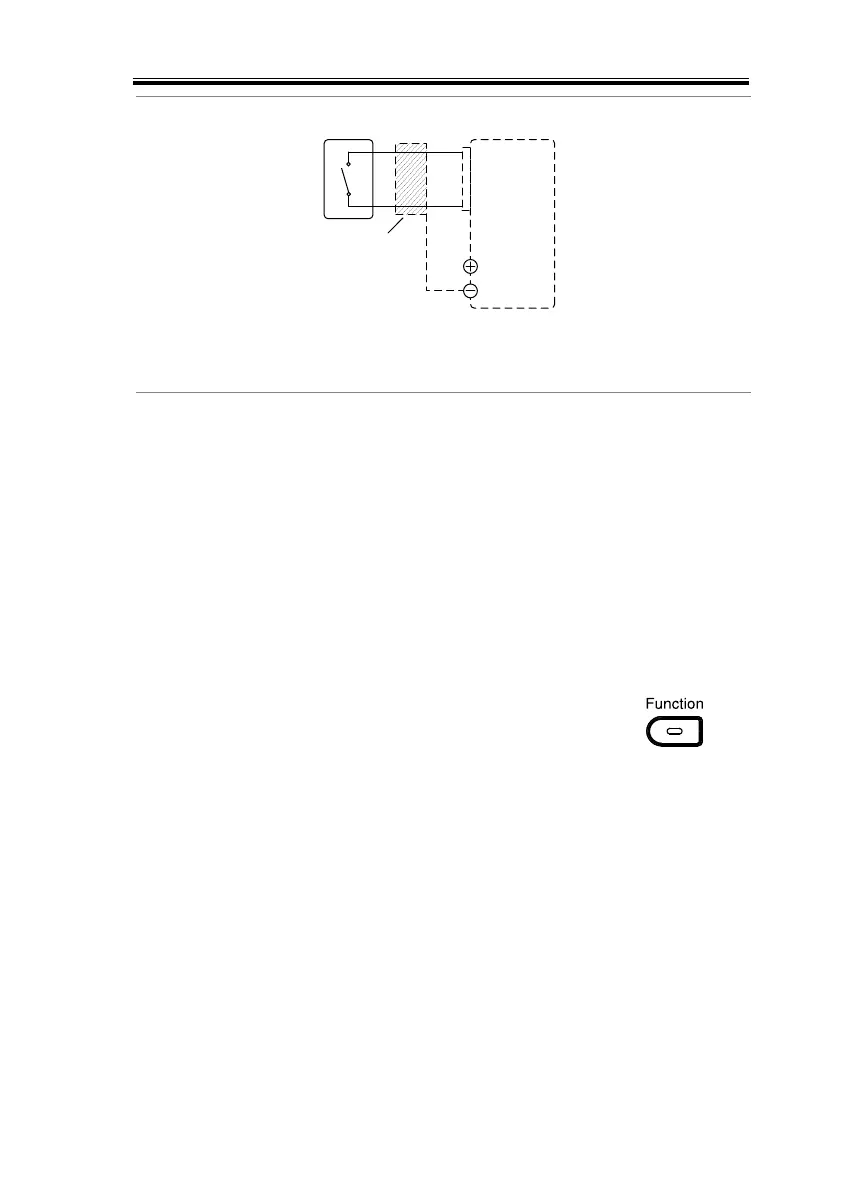

1. Connect the external switch according to the
connection diagrams above.
Set F-94 (External output logic) in
the power on configuration
settings to 0 (High = On) or 1
(Low = On).
 Be sure to cycle the power after
setting the power on
configuration settings.
Page 96
2. Press the Function key and confirm
the new configuration settings.
3. The switch is now ready to set the output on or
off.
