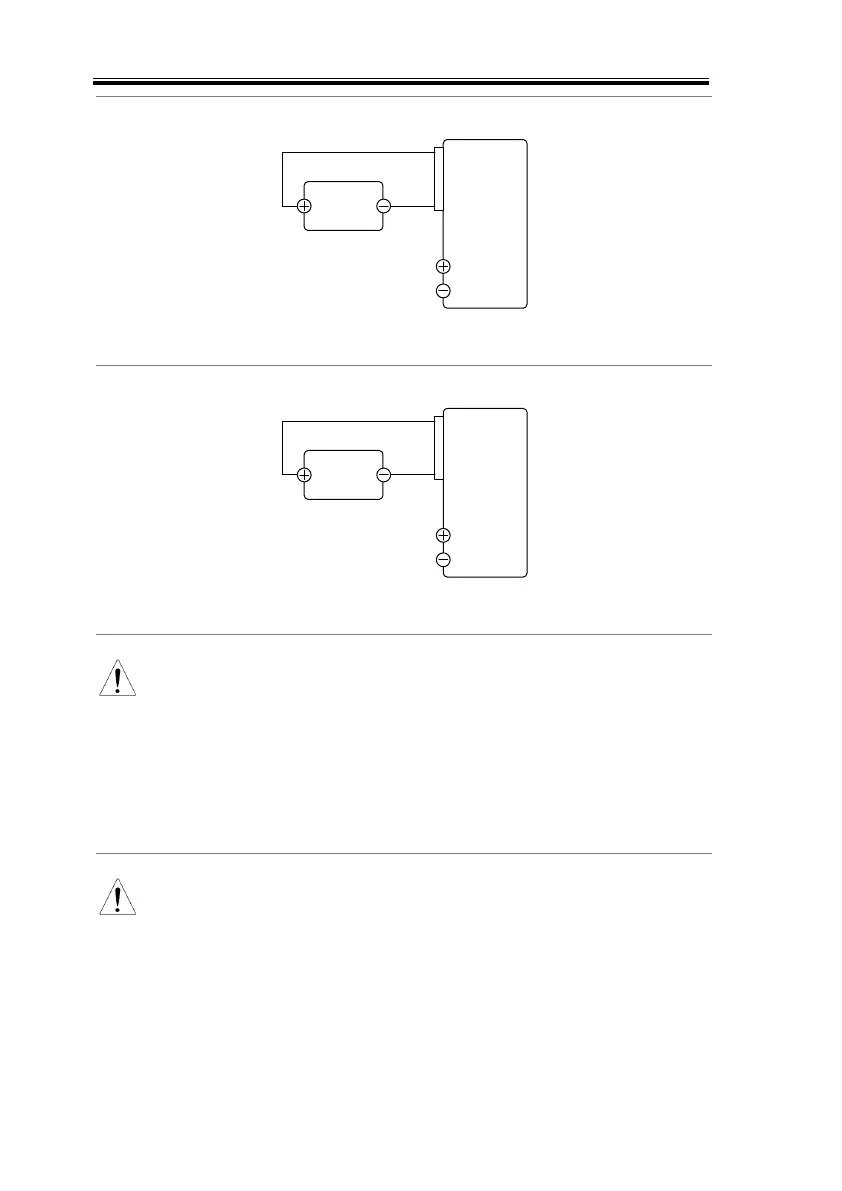

VMON
Connection
Power
supply
DMM
Analog
connector
16
10
Output
Terminal
V MON
0→10V
 Pin16 → Neg (-)
 Pin10 → Pos (+)
IMON
Connection
Power
supply
DMM
Analog
connector
16
11
Output
Terminal
I MON
0→10V
 Pin16 → Neg (-)
 Pin11 → Pos (+)
Note
The output impedance of the voltage (VMON) and
current (IMON) monitor pins is 1kΩ.
Maximum current is 10mA.
The monitor outputs are strictly DC and should not
be used to monitor analog components such as
transient voltage response or ripple etc.
CAUTION
Ensure IMON(pin 11) and VMON(pin 10) are not
shorted together. This will cause damage to the
unit.
