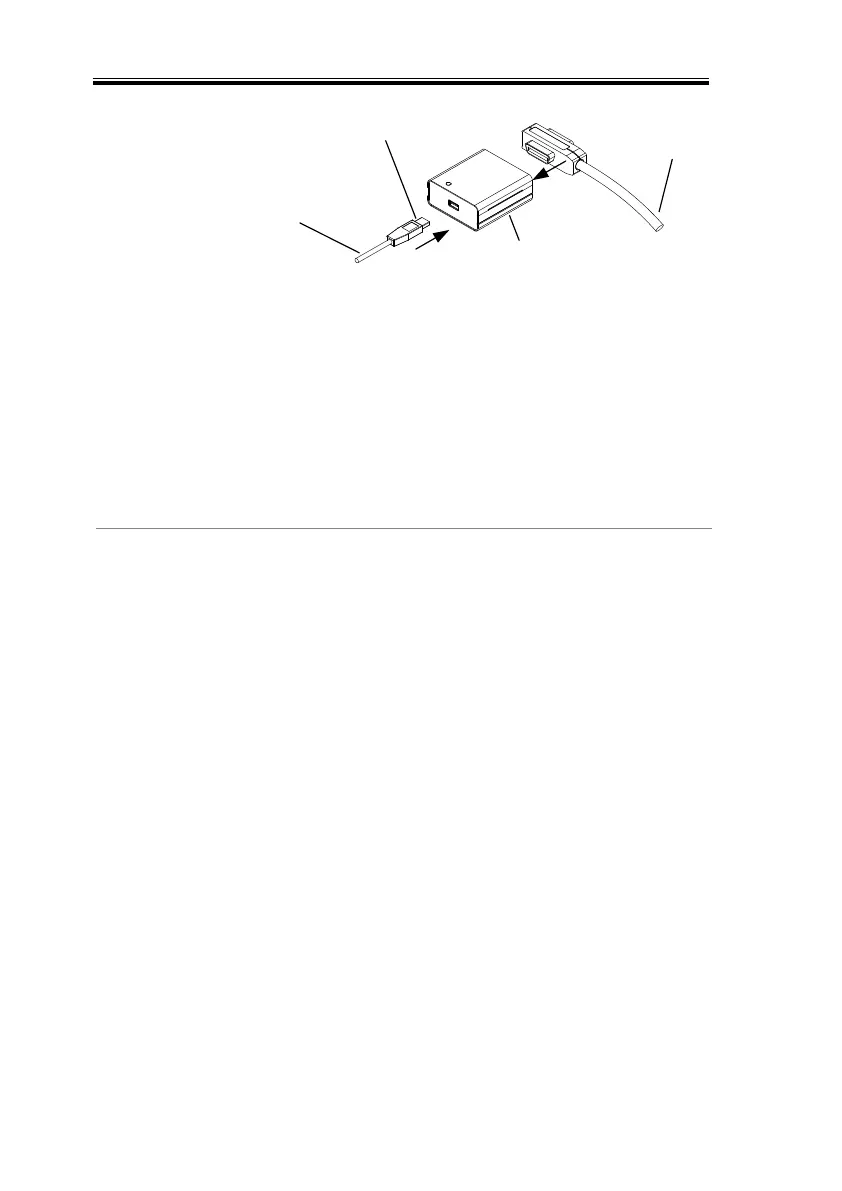

From Type B plug
on Power supply
Type A plug
From
computer
GPIB to USB adapter
4. Turn the 2260B on.
5. Press the Function key to enter the
Normal configuration settings.
Page 94
Set the following GPIB settings
F-22 = 1
Set the rear panel USB port to
GPIB-USB
F-23 = 0~30
Set the GPIB address (0~30)
GPIB constraints
 Maximum 15 devices altogether, 20m cable
length, 2m between each device
 Unique address assigned to each device
 At least 2/3 of the devices turned On
 No loop or parallel connection
