Keithley 2260B-80-13 User Manual

OPERATION
55
Power
supply #2
a
b
c
d
Load
Input
Input
Output
Sense
Sense
Power
supply #1
Output
Output
Sense
Sense
Output
Page 34
2. Operate the instrument as normal.
See the Serial Operation chapter
for details.
Page 65
Wire Shielding
and Load line
impedance

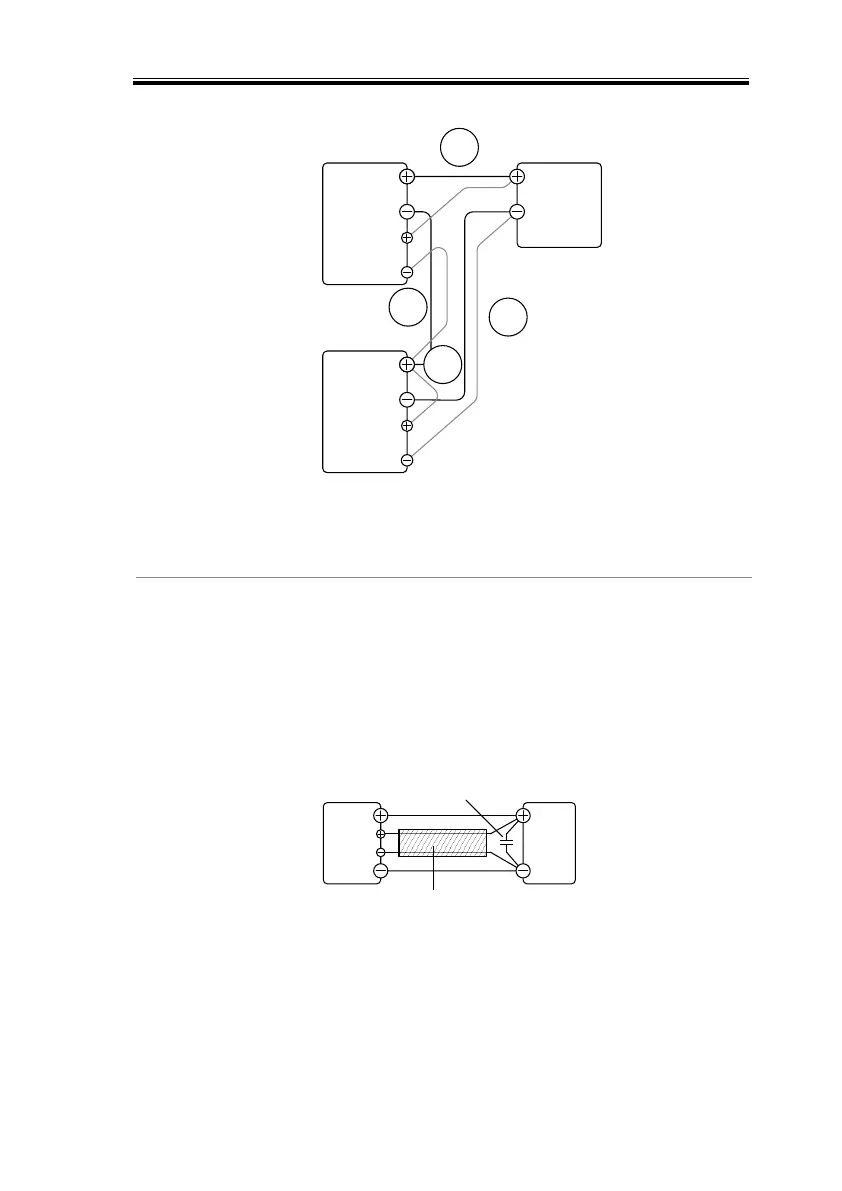

To help to minimize the oscillation due to the
inductance and capacitance of the load cables,
use an electrolytic capacitor in parallel with the
load terminals.
To minimize the effect of load line impedance
use twisted wire pairing.
Power
supply
Load
s
s
Twisted pair
Capacitor
