Keithley 237

SECTION3
IEEE-488
Reference
+

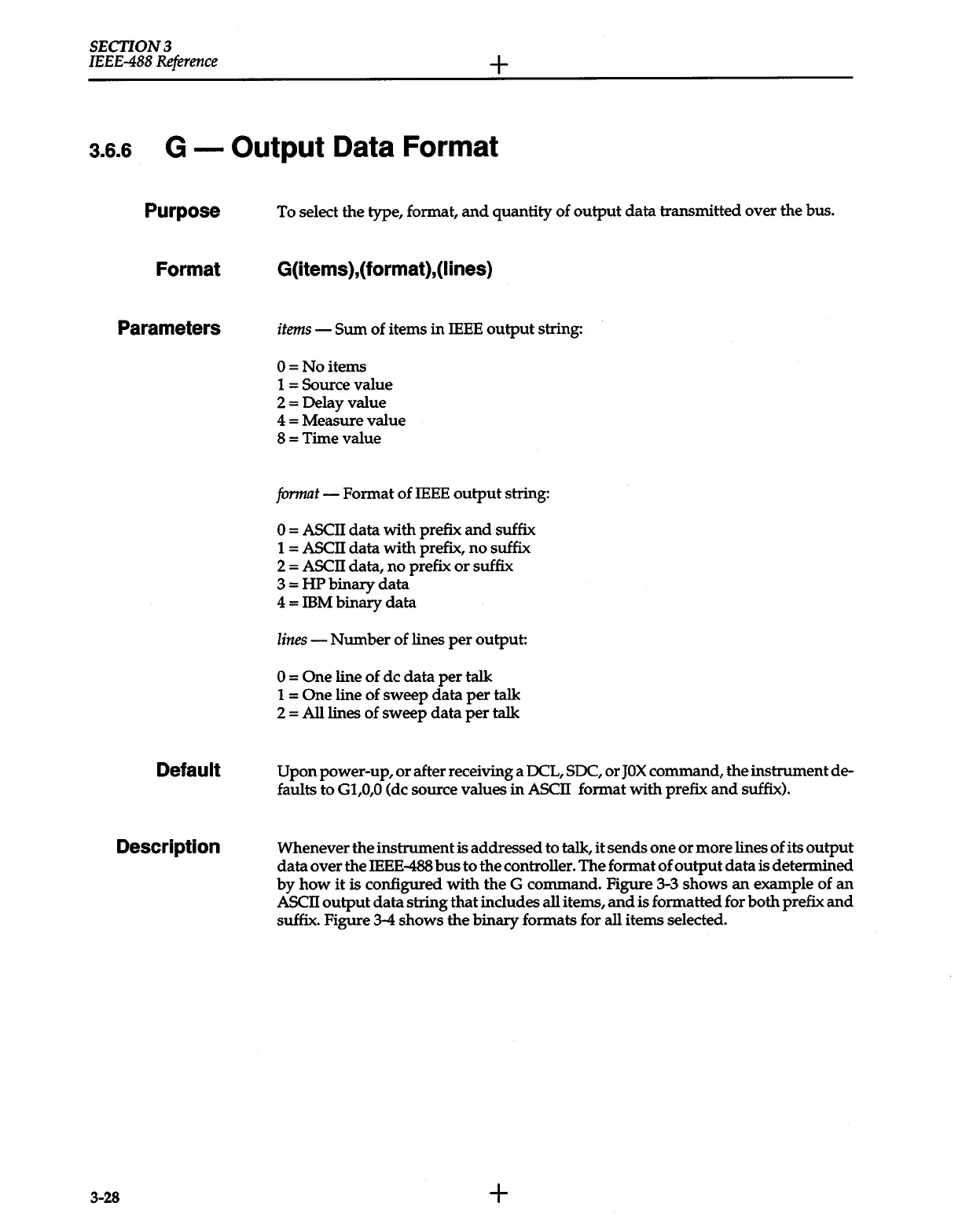

3.6.6
G -
Output
Data Format
Purpose
Format
Parameters
Default
Description
3-28
To select the type, format,
and
quantity of
output
data
transmitted over the bus.
G(items ),(format),(lines)
items
-
Sum
of items
in
IEEE
output
string:
O=Noitems
1 = Source value
2 = Delay value
4 = Measure value
8
=Time
value
fonnat-
Format of
IEEE
output
string:
0
= ASCll
data
with
prefix
and
suffix
1 = ASCll
data
with
prefix,
no
suffix
2 =
ASCll
data,
no
prefix
or
suffix
3 =
HP
binary
data
4 =
IBM
binary
data
lines
-
Number
of lines
per
output:
0
=
One
line
of
de
data
per
talk
1 =
One
line
of
sweep
data
per
talk
2 = All lines of sweep
data
per
talk
Upon
power-up,
or
after receiving a DCL, SOC,
or
JOX
command, the instrument de-
faults to
G1,0,0
(de source values
in
ASCll format
with
prefix
and
suffix).
Whenever the instrument
is
addressed to talk,
it
sends one
or
more lines of its
output
data
over the IEEE-488
bus
to
the controller. The format
of
output
data
is
determined
by
how
it
is
configured
with
the G command. Figure 3-3 shows
an
example of
an
ASCll
output
data
string
that
includes all items,
and
is formatted for
both
prefix
and
suffix. Figure 3-4 shows the binary formats for all items selected.
+
