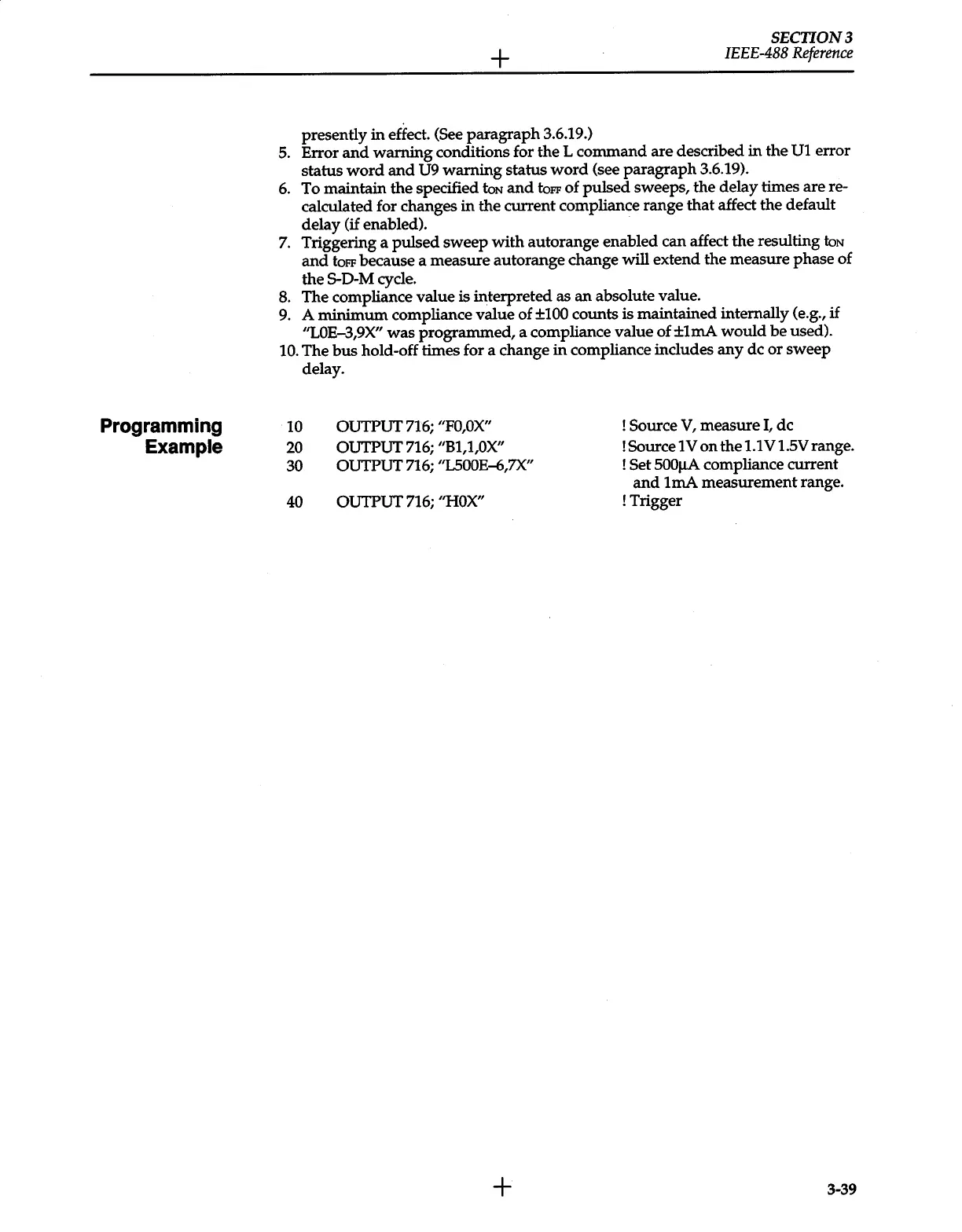

Programming
Example
+
presently
in
effect. (See
paragraph
3.6.19.)
SECTION3
IEEE-488
Reference
5. Error
and
warning
conditions for the L
command
are described
in
the
U1
error
status
word
and
U9
warning
status
word
(see
paragraph
3.6.19).
6.
To maintain
the
specified
toN
and
toFF
of
pulsed
sweeps, the delay times are re-
calculated for changes
in
the current compliance range
that
affect
the
default
delay
(if
enabled).
7.
Triggering a
pulsed
sweep
with
autorange enabled can affect
the
resulting
toN
and
toFF
because a measure autorange change will extend the measure phase
of
the
5-D-M
cycle.
8.
The compliance value
is
interpreted as
an
absolute value.
9.
A
minimum
compliance value of
±100
counts is maintained internally (e.g.,
if
"LOE-3,9X"
was
programmed, a compliance value
of
±1mA
would
be
used).
10. The
bus
hold-off times for a change
in
compliance includes
any
de
or
sweep
delay.
10
20
30
40
OUTPUT
716;
"FO,OX"
OUTPUT
716;
"B1,1,0X"
OUTPUT
716;
"LSOOE-6,7X"
OUTPUT
716;
''HOX"
+
!
Source
V,
measure I, de
!
Source 1
Von
the
1.1
V
1.5V range.
!
Set
SOOJ.IA
compliance current
and
1mA
measurement range.
!
Trigger
3-39
