SECTION
2
Calibration
3.
Over
the
1EEE488
bus,
send
the
following
command
to
enter
the
calibration
mode:
cox
!
Enter
calibration
mode
Note:
All
other
calibration
commands
(Cl
through
C59)
will
be
ignored
unless
the
CO
command
is
first
sent
over
the
bus.
4.
Send
the
following
command
over
the
1EEE488
bus:
C42X
!
Calibrate
offset;
inA
measure
range
Note:
Calibration
takes
20
seconds
to
complete.
5,
Place
the
Model
263
in
OPERATE
to
source
O.9nA
to
the
Model
236/237.
6.
Send
the
following
command
over
the
bus:
C43,O.9E9X
!
Calibrate
gain;
inA
measure
range
Note:
Calibration
takes
20
seconds
to
complete.
7,
Place
the
Model
263
in
standby
and
set
it
to
9nA.
8.
Send
the
following
command
over
the
bus:
C44X
!
Calibrate
offset;
lOnA
meas
ure
range
Note:
Calibration
takes
10
seconds
to
complete.
9,
Place
the
Model
263
in
operate
to
source
9nA
to
the
Model
236/237.
10.
Send
the
following
command
over
the
bus:
C45,9E—9X
!
Calibrate
gain;
lOnA
measure
range
Note:
Calibration
takes
10
seconds
o
complete.
11.
Place
the
Model
263
in
standby
and
set
it
to
9OnA.
12.
Send
the
following
command
over
the
bus:
C46X
!
Calibrate
offset;
lOOnA
meas
ure
range
Note:
Calibration
takes
4
seconds
to
complete.
13.
Place
the
Model
263
in
OPERATE
to
source
9OnA
to
the
Model
236/237.
14.
Send
the
following
command
over
the
bus:
C47,9OE9X
!
Calibrate
gain;
lOOnA
measure
range
Note:
Calibration
takes
4
seconds
to
complete.
15.
Place
the
Model
263
in
standby
and
set
it
to
O.9iA.
16.
Send
the
following
command
over
the
bus:
C48X
!
Calibrate
offset;
1iA
measure
range
17.
Place
the
Model
263
in
OPERATE.
18.
Send
IO9iA
(from
Table
23)
over
the
bus
with
the
C49
command
as
follows:
C49,Io9AX
!
Calibrate
gain;
ljiA
measure
range
For
example,
if
Io9LA
=
O.90036jiA,
send
C49,O.9OO36E6X.
19.
Place
the
Model
263
in
standby
and
set
it
to
9j.tA.
20.
Send
the
following
command
over
the
bus:
C5OX
!
Calibrate
offset;
lOjiA
meas
ure
range
6172
2-SIot
to
3Lug
Female
Triax
adapter
0000BOB
00:,
263
Source
(Source
1)
Note
:
263
GUARD
enabled

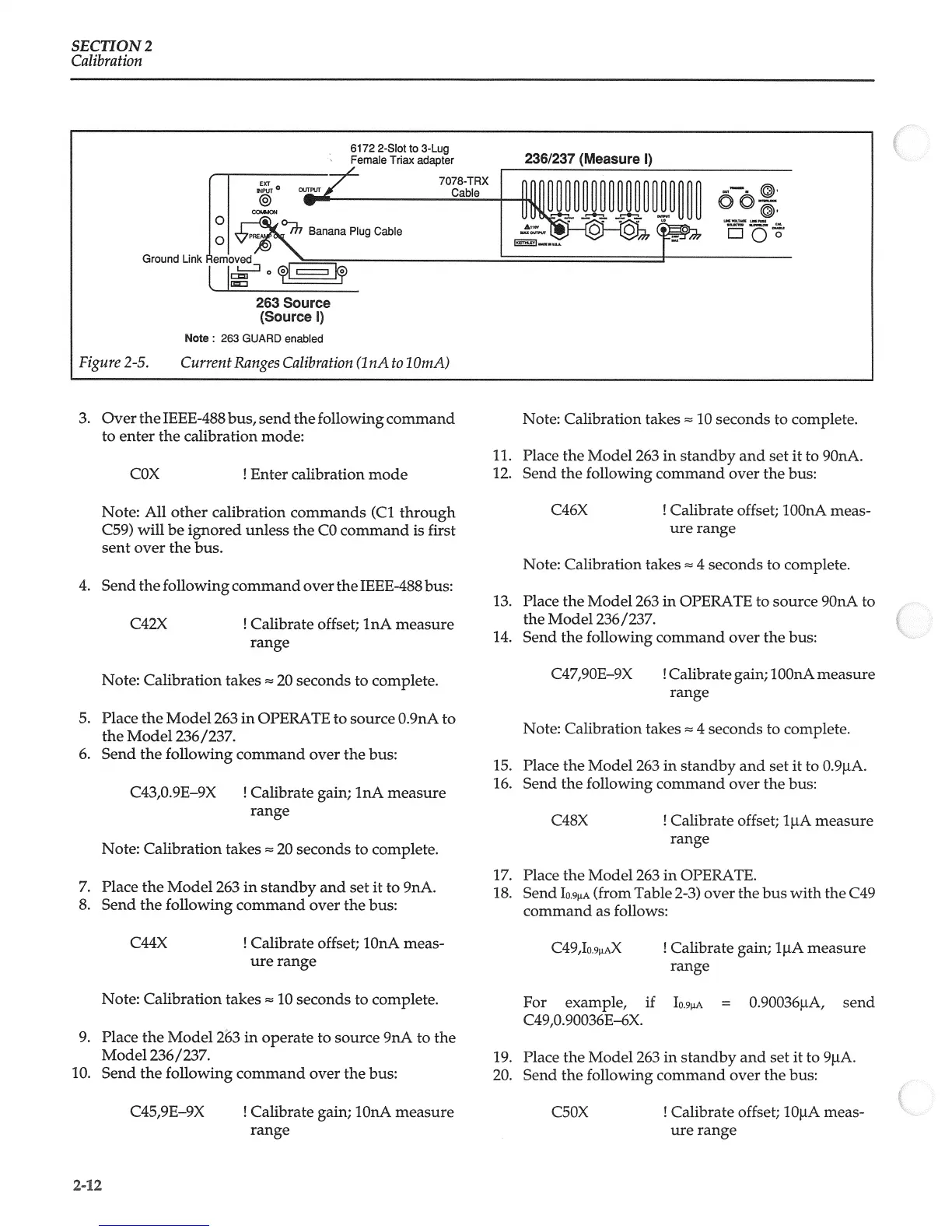

Figure
25.
Current
Ranges
Calibration
(inA
to
lOmA)
