NOTES:
1: FOR TRANSMITTERS WITH LIGHTNING/SURGE PROTECTION, CONNECT DRAIN WIRE
TO A LOW-IMPEDANCE EARTH GROUND. FOR TRANSMITTERS WITHOUT LIGHTNING/
SURGE PROTECTION, THIS PIN IS CONNECTED TO THE TRANSMITTER CASE.
2: DO NOT SUBMERSE ELECTRICAL TERMINATION IN LIQUID. IT WILL DAMAGE
THE INSTRUMENT.

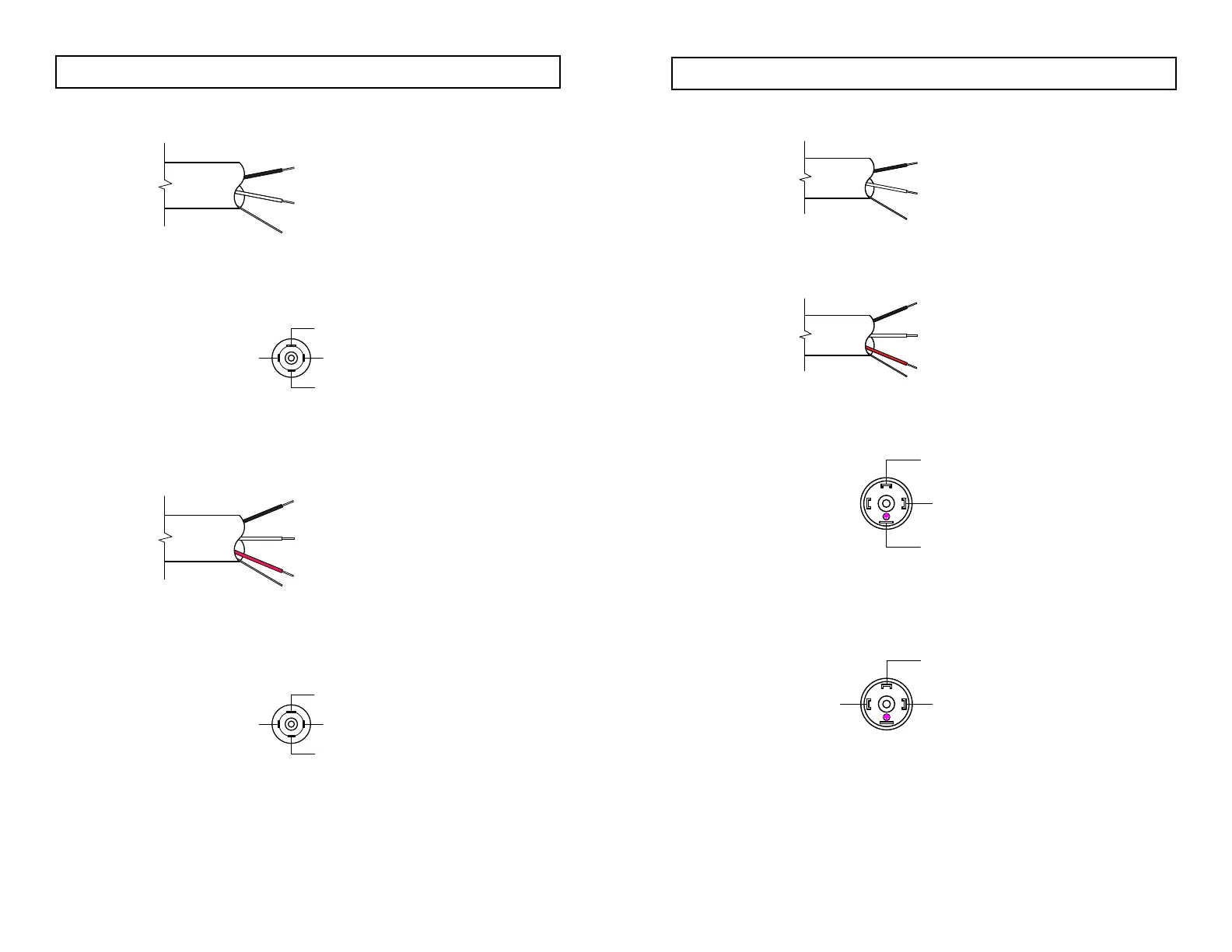

VALUELINE w/ATTACHED CABLE...4-20mA
VALUELINE w/ATTACHED CABLE...0-5...10VDC
VALUELINE w/DIN43650...4-20mA
VIEW OF REAR OF TRANSMITTER
VALUELINE w/DIN43650...0-5...10VDCVALUELINE
+ OUTPUT
VIEW OF REAR OF TRANSMITTER
3
1
2
3
1
2
DRAIN
BLACK: + SUPPLY
WHITE: OUTPUT/GROUND
DRAIN
BLACK: + SUPPLY
WHITE: GROUND
RED: + OUTPUT
+ SUPPLY
OUTPUT/GROUND
SEE NOTE 1.
+ SUPPLY
GROUND
A-3
1
2
3
4
1
2
3
4
DRAIN/CASE GROUND
BLACK: + SUPPLY
WHITE: OUTPUT/GROUND
DRAIN
BLACK: + SUPPLY
WHITE: GROUND
RED: + OUTPUT
ECONOLINE w/CABLE...4-20mA
ECONOLINE w/mPm393...4-20mA
ECONOLINE w/CABLE...0,5-4,5VDC
ECONOLINE w/mPm393...0,5-4,5VDC
CASE
+ SUPPLY
OUTPUT/GND
VIEW OF REAR OF TRANSMITTER
CASE
+ SUPPLY
GROUND
VIEW OF REAR OF TRANSMITTER
+ OUTPUT
A-2
NOTES:
1: DO NOT SUBMERSE ELECTRICAL TERMINATION IN LIQUID. IT WILL DAMAGE
THE INSTRUMENT.
