Kemlan XL - Technical Specifications; Minimum Clearances; Construction Details; Performance Specifications

2
TECHNICAL SPECIFICATIONS
*As per Clause 3.3.3 of AS/NZS 2918 for oor protector
construction requirements.
Where a sample appliance installation (or prototype
installation) has not been tested, the oor protector
shall extend either to a distance of not less than 500mm
(measurement C) beyond any part of the appliance or a
lesser distance at which it forms a abutment with a wall or
heat shield (subject to the requirements of Clause 3.2).
Heating capacity of this appliance is given as a guide only
and may vary depending on the climate zone and type
of dwelling (oor plan and degree of insulation). Consult
your local authorised distributor to determine realistic
expectations for your home.
Heat output and fuel consumption of this appliance
is dependent on the moisture content, size, loading
geometry and the type of hardwood used.
The appliance complies to the safety standards AS/NZS
2918. When in use some parts may become hot. A
suitable reguard is recommended where the very young,
elderly or inrm are concerned.
CONSTRUCTION
- 6 & 8mm heavy duty steel rebox – fully welded
- 25mm thick rebrick lined oor
- 19mm ceramic lined sides and bafe
PERFORMANCE
- Heating capacity – 220-320m2 (23-33 squares)
- Peak heat output – 21.6kW
- Average output – 2.0g/kg
- Average efciency – 61%
Glass viewing area - 602mm wide x 302mm high
Flue pipe - ø150mm – top exit
Shipping weight - 215kg
All dimensions shown are approximate. Check all
dimensions accurately before installation. Before
installing refer to the installation instructions.
In line with our policy of continuous improvement, we
reserve the right to alter specications without notice.
A - 100mm
B - 550mm
C - 150mm
D - 3200mm
E - 945mm
F - 620mm
G - 1200mm
H - 1060mm
I* - 500mm

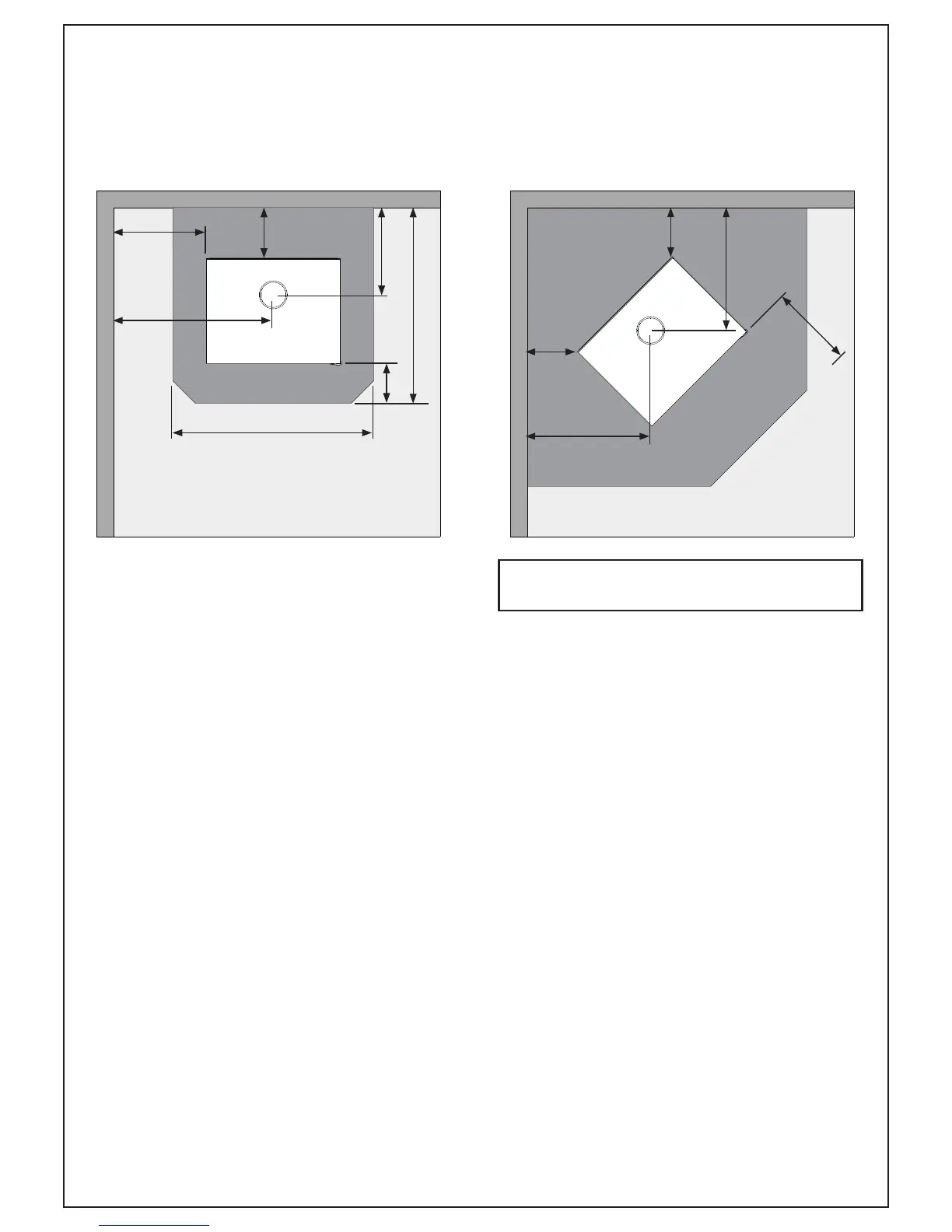

STANDARD INSTALLATION
MINIMUM CLEARANCES FOR THE KEMLAN XL SOLID FUEL
APPLIANCE INSTALLED WITH A DEFAULT FLUE KIT
CORNER INSTALLATION
I*
I*
NOTE:
The oor protector consists of a 12mm thick cement bre sheet
which has a thermal resistance of 0.8² k/W, per 4mm thick sheet
A
C
C
F
F
H
D
G
B
E
