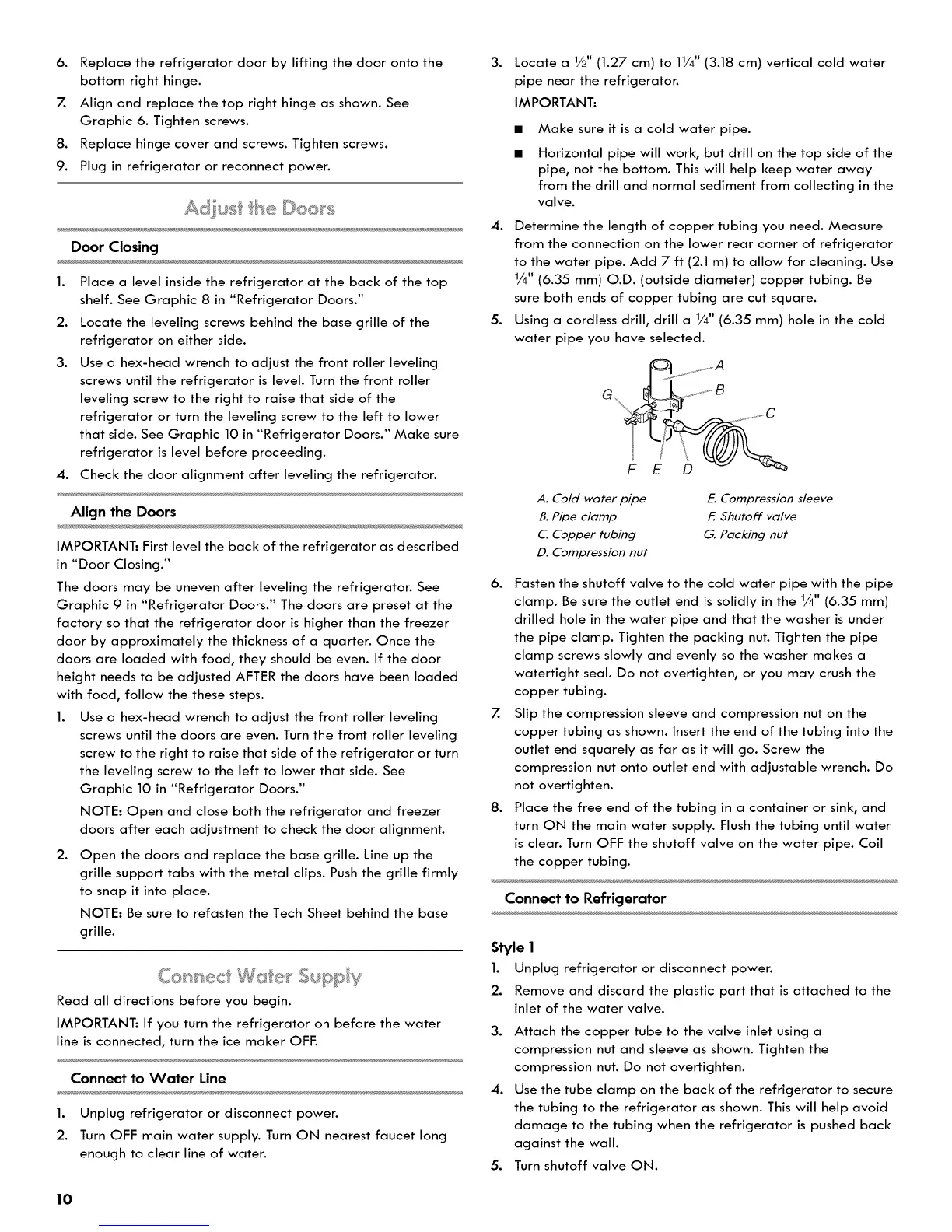

6. Replace the refrigerator door by lifting the door onto the
bottom right hinge.
7. Align and replace the top right hinge as shown. See
Graphic 6. Tighten screws.
8. Replace hinge cover and screws. Tighten screws.
9. Plug in refrigerator or reconnect power.
Ac psf ,he ,, =
_' °_' LIOOI5
Door Closing
1. Place a level inside the refrigerator at the back of the top
shelf. See Graphic 8 in "Refrigerator Doors."
2. Locate the leveling screws behind the base grille of the
refrigerator on either side.
3. Use a hex-head wrench to adjust the front roller leveling
screws until the refrigerator is level. Turn the front roller
leveling screw to the right to raise that side of the
refrigerator or turn the leveling screw to the left to lower
that side. See Graphic 10 in "Refrigerator Doors." Make sure
refrigerator is level before proceeding.
4. Check the door alignment after leveling the refrigerator.
Align the Doors
IMPORTANT: First level the back of the refrigerator as described
in "Door Closing."
The doors may be uneven after leveling the refrigerator. See
Graphic 9 in "Refrigerator Doors." The doors are preset at the
factory so that the refrigerator door is higher than the freezer
door by approximately the thickness of a quarter. Once the
doors are loaded with food, they should be even. If the door
height needs to be adjusted AFTER the doors have been loaded
with food, follow the these steps.
1. Use a hex-head wrench to adjust the front roller leveling
screws until the doors are even. Turn the front roller leveling
screw to the right to raise that side of the refrigerator or turn
the leveling screw to the left to lower that side. See
Graphic 10 in "Refrigerator Doors."
NOTE: Open and close both the refrigerator and freezer
doors after each adjustment to check the door alignment.
2.
Open the doors and replace the base grille. Line up the
grille support tabs with the metal clips. Push the grille firmly
to snap it into place.
NOTE: Be sure to refasten the Tech Sheet behind the base
grille.
Read all directions before you begin.
IMPORTANT: If you turn the refrigerator on before the water
line is connected, turn the ice maker OFF.
Connect to Water Line
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
3.
Locate a 1/2"(1.27 cm) to 11/4'' (3.18 cm) vertical cold water
pipe near the refrigerator.
IMPORTANT:
Make sure it is a cold water pipe.
Horizontal pipe will work, but drill on the top side of the
pipe, not the bottom. This will help keep water away
from the drill and normal sediment from collecting in the
valve.
4. Determine the length of copper tubing you need. Measure
from the connection on the lower rear corner of refrigerator
to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use
1/4"(6.35 mm) O.D. (outside diameter) copper tubing. Be
sure both ends of copper tubing are cut square.
5. Using a cordless drill, drill a 1/4"(6.35 mm) hole in the cold
water pipe you have selected.
A. Cold water pipe
B. Pipe clamp
C. Copper tubing
D. Compression nut
E. Compression sleeve
F. Shutoff valve
G. Packing nut
6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the 1/4"(6.35 mm)
drilled hole in the water pipe and that the washer is under
the pipe clamp. Tighten the packing nut. Tighten the pipe
clamp screws slowly and evenly so the washer makes a
watertight seal. Do not overtighten, or you may crush the
copper tubing.
7. Slip the compression sleeve and compression nut on the
copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw the
compression nut onto outlet end with adjustable wrench. Do
not overtighten.
8. Place the free end of the tubing in a container or sink, and
turn ON the main water supply. Flush the tubing until water
is clear. Turn OFF the shutoff valve on the water pipe. Coil
the copper tubing.
Connect to Refrigerator
Style 1
1. Unplug refrigerator or disconnect power.
2. Remove and discard the plastic part that is attached to the
inlet of the water valve.
3. Attach the copper tube to the valve inlet using a
compression nut and sleeve as shown. Tighten the
compression nut. Do not overtighten.
4. Use the tube clamp on the back of the refrigerator to secure
the tubing to the refrigerator as shown. This will help avoid
damage to the tubing when the refrigerator is pushed back
against the wall.
5. Turn shutoff valve ON.
10
