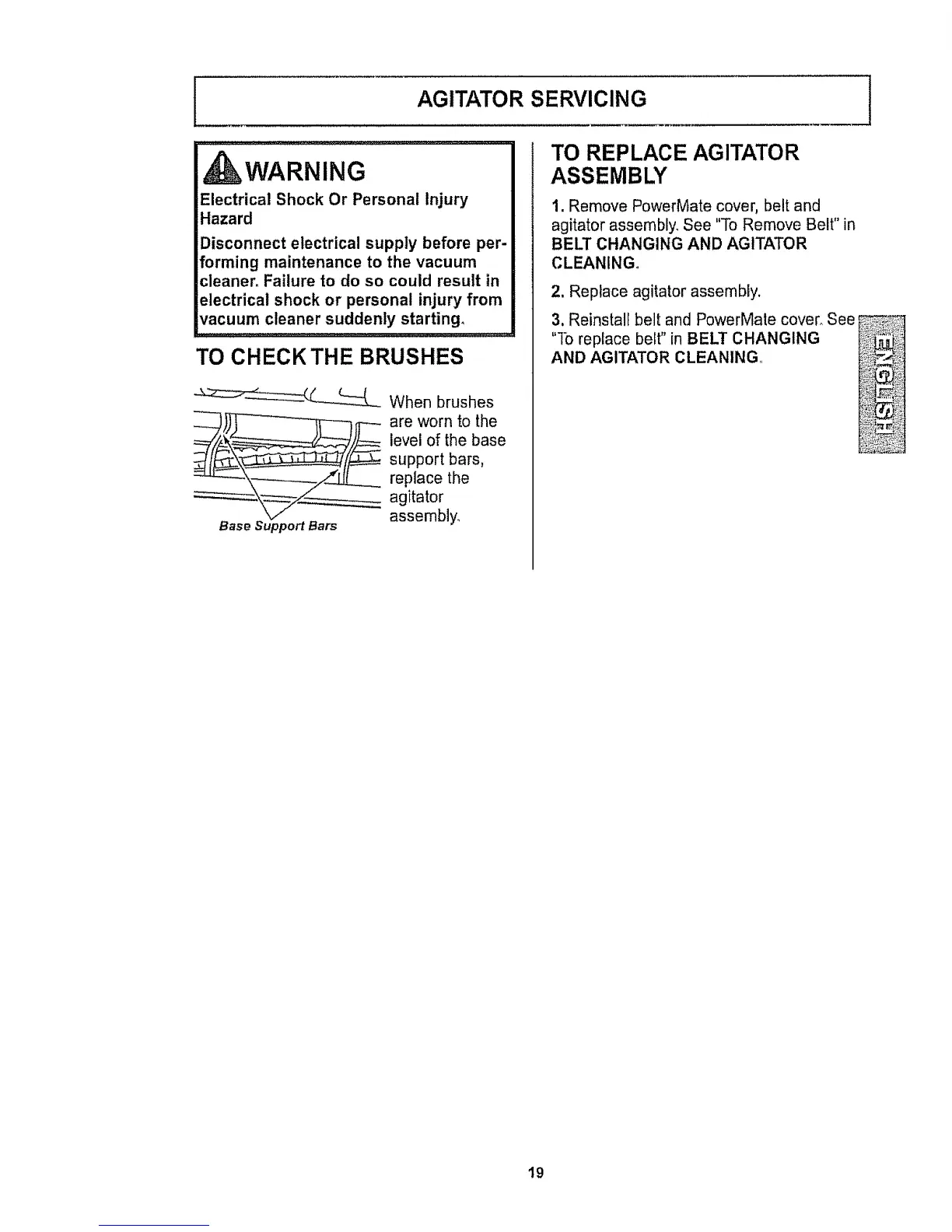

AGITATOR SERVICING
_WARNING
Electrical Shock Or Personal Injury
Hazard
Disconnect electrical supply before per-
forming maintenance to the vacuum
cleaner. Failure to do so could result in
electrical shock or personal injury from
vacuum cleaner suddenly starting°
TO CHECK THE BRUSHES
When brushes
£__are worn tot he
level of the base
support bars,
replace the
agitator
Base Support Bars assembly,
TO REPLACE AGITATOR
ASSEMBLY
1, Remove PowerMate cover, belt and
agitator assembly_ See "To Remove Belt" in
BELT CHANGING AND AGITATOR
CLEANING°
2. Replace agitator assembly,
3. Reinstall belt and PowerMate cover, See
"To replace belt" in BELT CHANGING
AND AGITATOR CLEANING,,
J
@
19
