ShuttleAssembly
ShuttleRaceCover
Shuttle Shttle Race

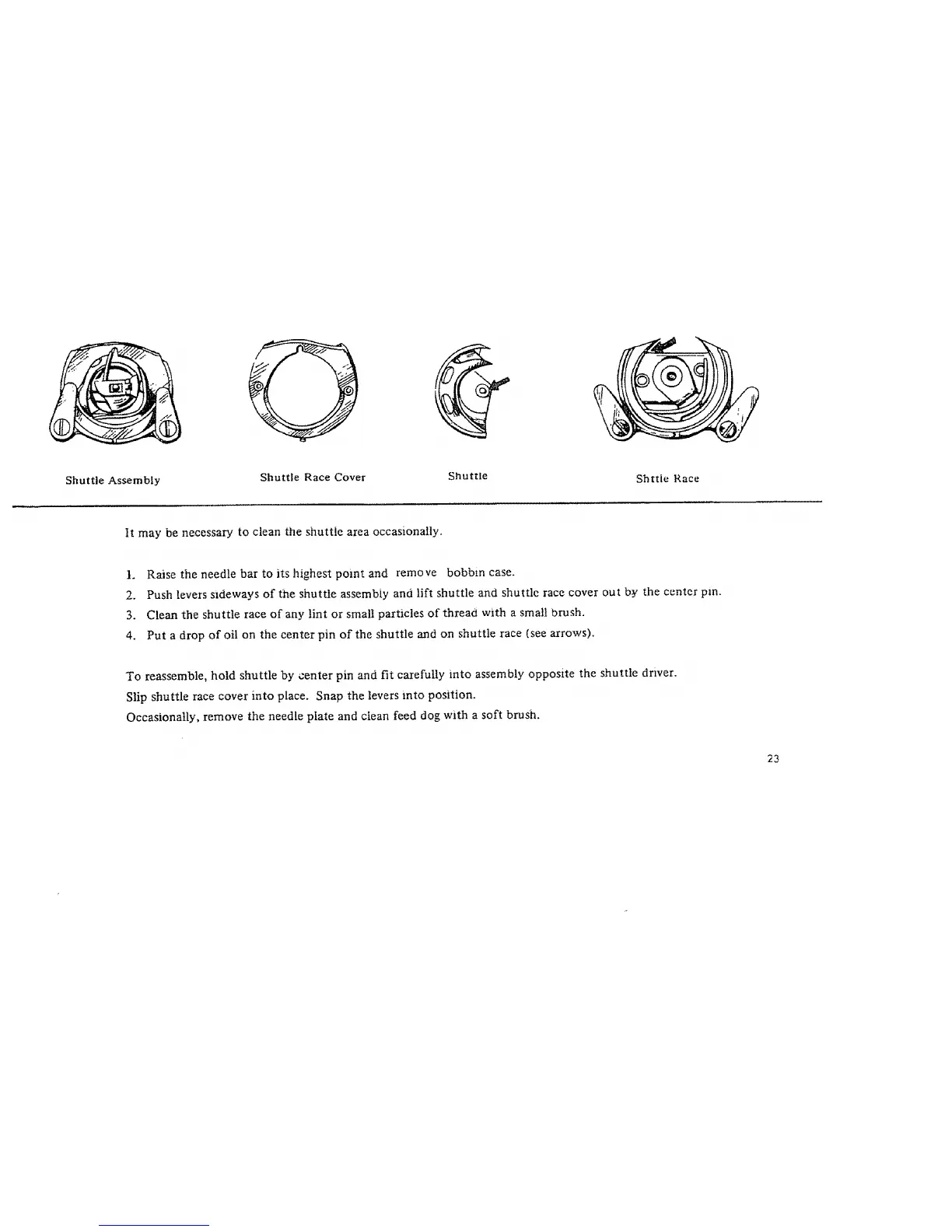

It may be necessary to clean the shuttle area occasionally.
L Raise the needle bar to its highest point and remove bobbin case.
2. Push levers sideways of the shuttle assembiy and lift shuttle and shuttlc race cover out by the center pro.
3. Clean the shuttle race of any tint or small particles of thread with a small brush.
4. Put a drop of oil on the center pin of the shuttle and on shuttle race (see arrows).
To reassemble, hold shuttle by center pin and fit carefully into assembly opposite the shuttle driver.
Slip shuttle race cover into place. Snap the levers into position.
Occasionally, remove the needle plate and clean feed dog with a soft brush.
