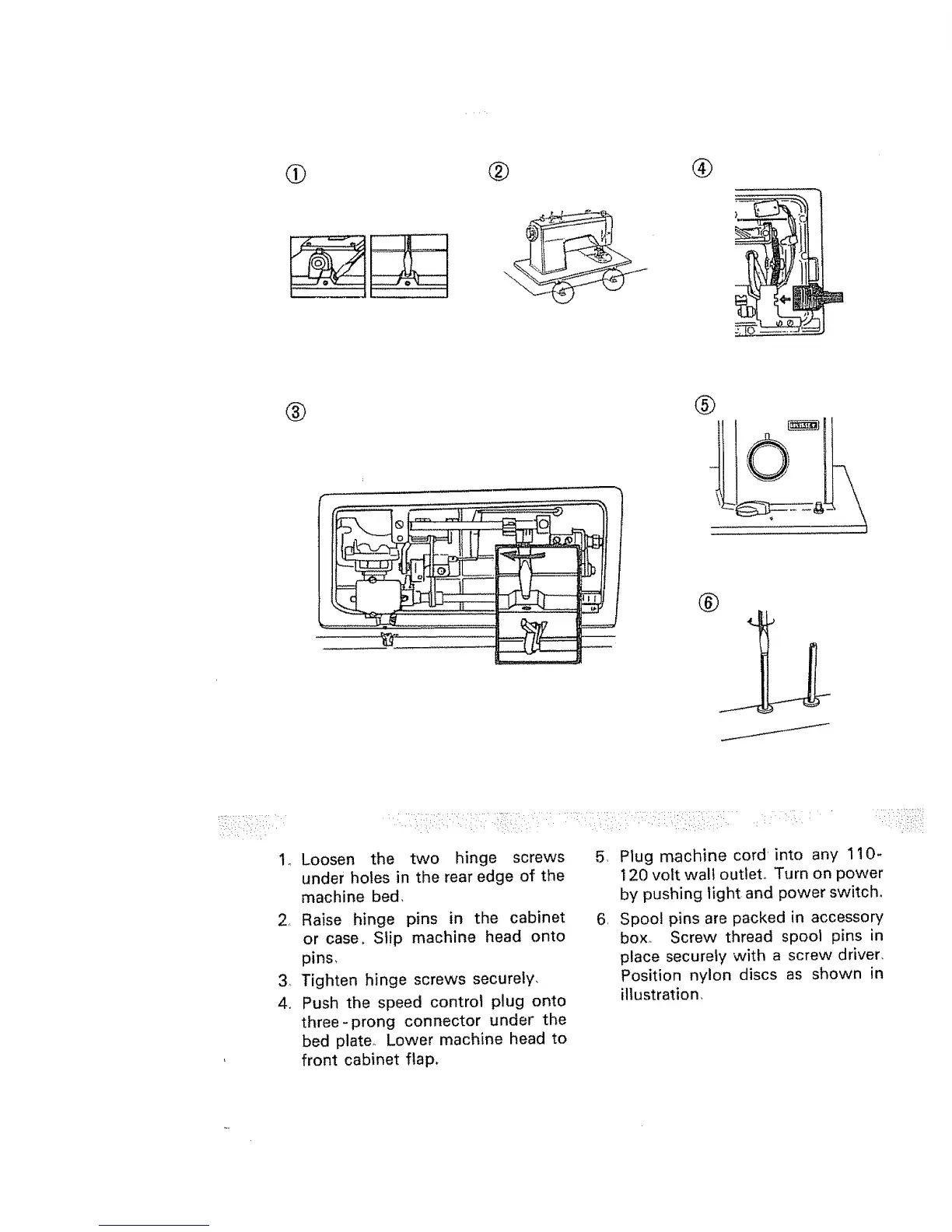

1o Loosen the two hinge screws
under holes in the rear edge of the
machine bed,
2, Raise hinge pins in the cabinet
or case. Sfip machine head onto
pins,
3 Tighten hinge screws securely,
4o Push the speed control plug onto
three-prong connector under the
bed plate_ Lower machine head to
front cabinet flap.
54
r
Plug machine cord into any 110-
120 volt walt outlet° Turn on power
by pushing light and power switch.
Spool pins are packed in accessory
box. Screw thread spool pins in
place securely with a screw driver.
Position nylon discs as shown in
illustration,
