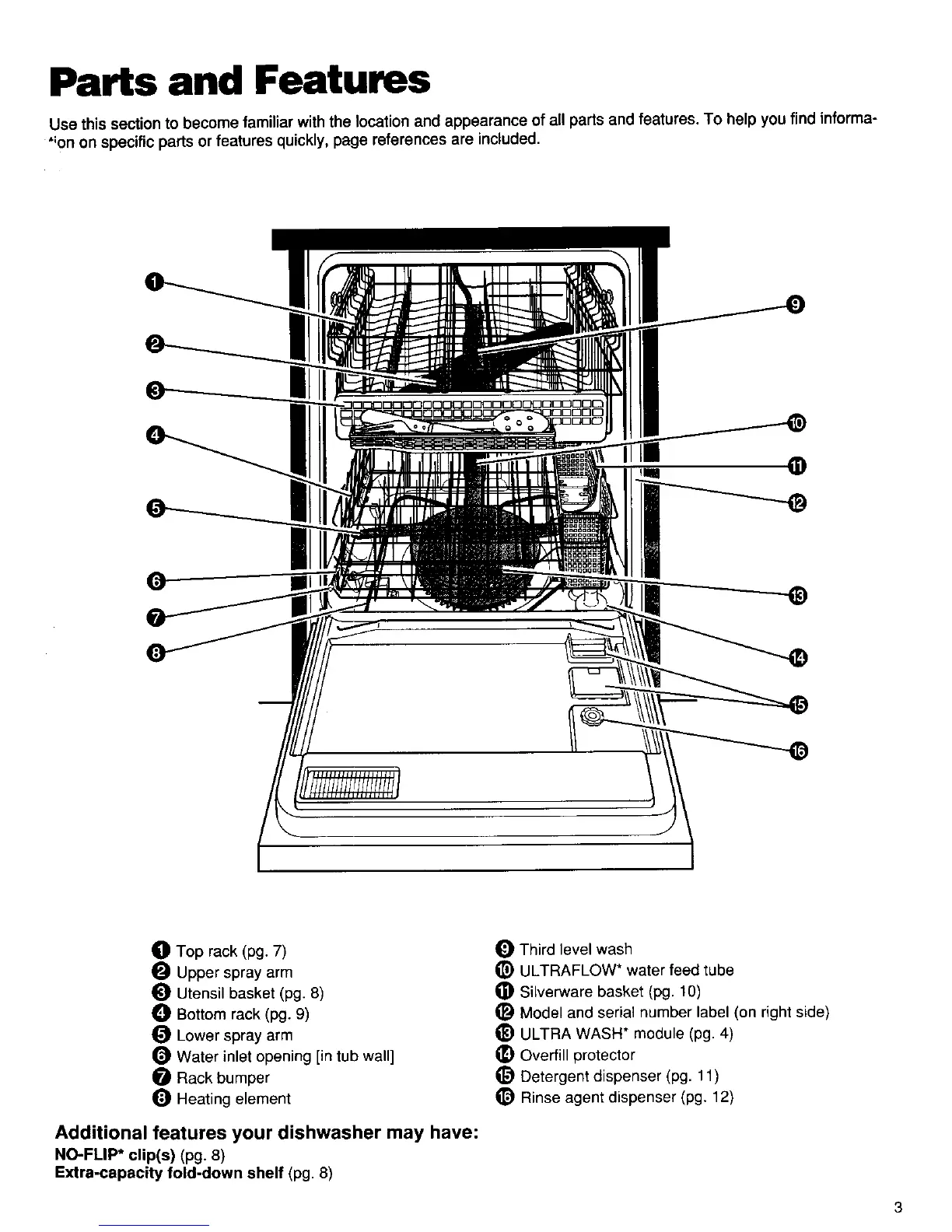

Parts and Features
Use this section to become familiar with the location and appearance of all parts and features. To help you find informa-
";on on specific parts or features quickly, page references are included.
i_ Top rack (pg. 7)
!_ Upper spray arm
i_ Utensil basket (pg. 8)
i_ Bottom rack (pg. 9)
O Lower spray arm
Water inlet opening [in tub wall]
t_ Rack bumper
i_ Heating element
Additional features your dishwasher may have:
NO-FLIP* clip(s) (pg. 8)
Extra-capacity fold-down shelf (pg 8)
_) Third level wash
_) ULTRAFLOW* water feed tube
Silverware basket (pg. 10)
Model and serial number label (on right side)
i_ ULTRA WASH* module (pg. 4)
_) Overfill protector
_) Detergent dispenser (pg. 11)
_) Rinse agent dispenser (pg. 12)
