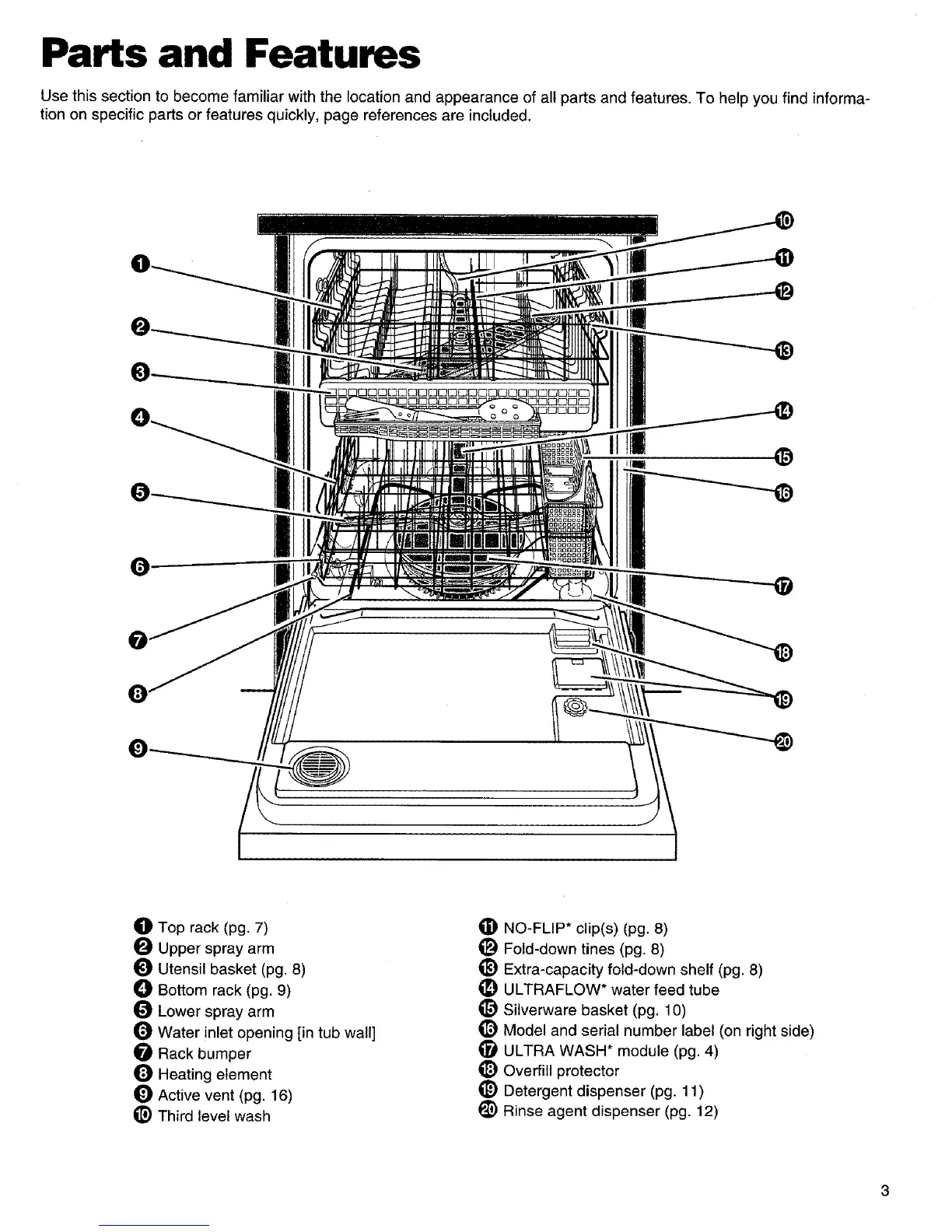

Parts and Features
Use this section to become familiar with the location and appearance of all parts and features. To help you find informa-
tion on specific parts or features quickly, page references are included.
O Top rack (pg. 7)
O Upper spray arm
Utensil basket (pg. 8)
_]) Bottom rack (pg. 9)
Lower spray arm
Water inlet opening [in tub wall]
Rack bumper
Q Heating element
Active vent (pg. 16)
_) Third level wash
(1) NO-FLIP* clip(s) (pg. 8)
i_ Fold-down tines (pg. 8)
_) Extra-capacity fold-down shelf (pg. 8)
_) ULTRAFLOW* water feed tube
_) Silverware basket (pg. 10)
I_) Model and serial number label (on right side)
ULTRA WASH* module (pg. 4)
I_) Overfill protector
_) Detergent dispenser (pg. 11)
I_) Rinse agent dispenser (pg. 12)
