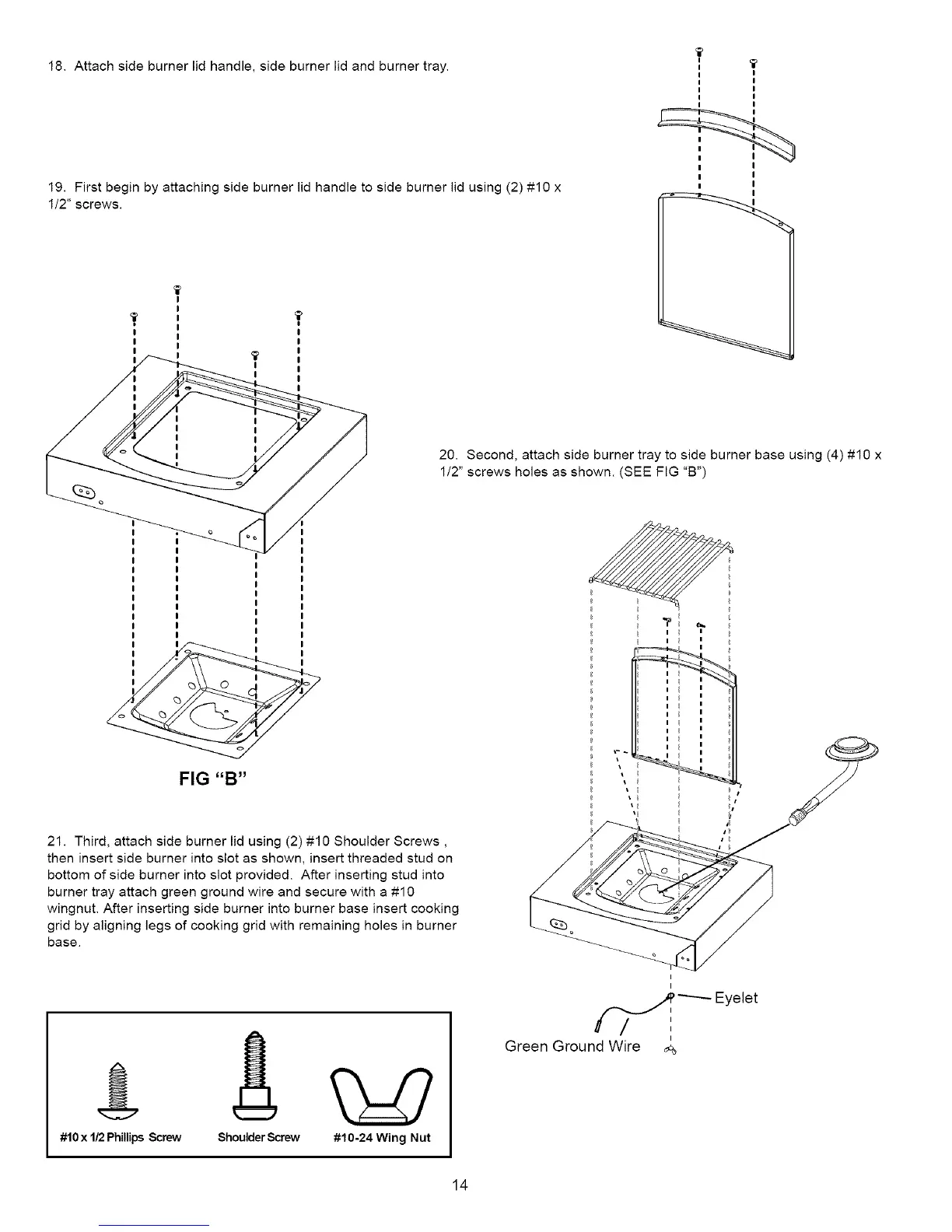

18. Attach side burner lid handle, side burner lid and burner tray.
19. First begin by attaching side burner lid handle to side burner lid using (2) #10 x
112" screws.
? ?
I
I
i ?
I
I
FIG "B"
21. Third, attach side burner lid using (2) #10 Shoulder Screws,
then insert side burner into slot as shown, insert threaded stud on
bottom of side burner into slot provided. After inserting stud into
burner tray attach green ground wire and secure with a #10
wingnut. After inserting side burner into burner base insert cooking
grid by aligning legs of cooking grid with remaining holes in burner
base.
I
I
I
20. Second, attach side burner tray to side burner base using (4) #10 x
1/2" screws holes as shown. (SEE FIG "B")
#10 x 1/2 Phillips Screw Shoulder Screw #10-24 Wing Nut
I
I
/f_,,,, "----- Eyelet
Green Ground Wire
