Kenmore 16238 - Page 15

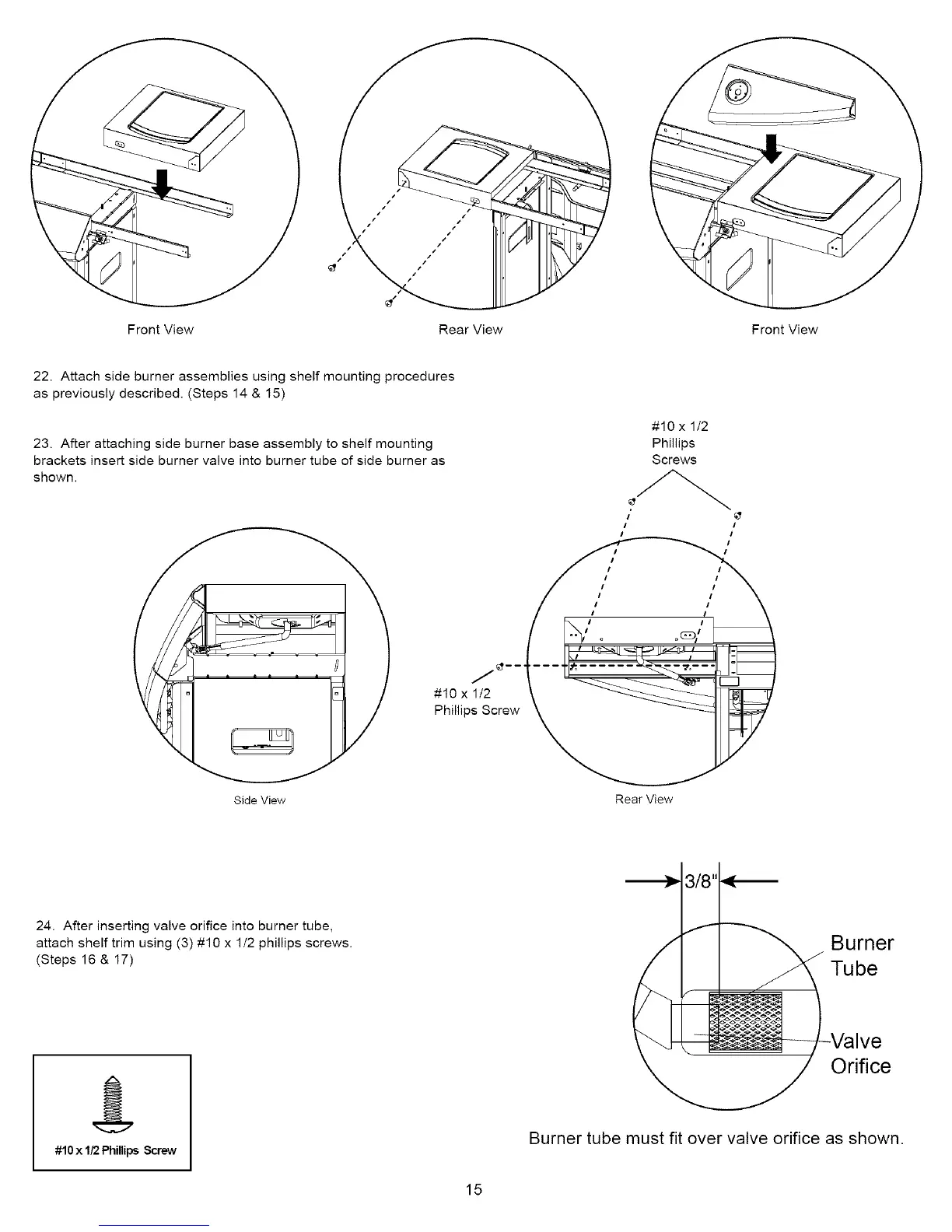

Front View Rear View Front View
22. Attach side burner assemblies using shelf mounting procedures
as previously described. (Steps 14 & 15)
23. After attaching side burner base assembly to shelf mounting
brackets insert side burner valve into burner tube of side burner as
shown.
#10 x 1/2
Phillips
Screws
! I
I I
I
I I
I
€ !
I I
! I
I I
I I
I
I I
#10 x 1/2
Phillips Screw
Side View
Rear View
24. After inserting valve orifice into burner tube,
attach shelf trim using (3) #10 x 1/2 phillips screws.
(Steps 16 & 17)
&
#10 x 1F2Phillips Screw
Burner
Tube
Orifice
Burner tube must fit over valve orifice as shown.
15
