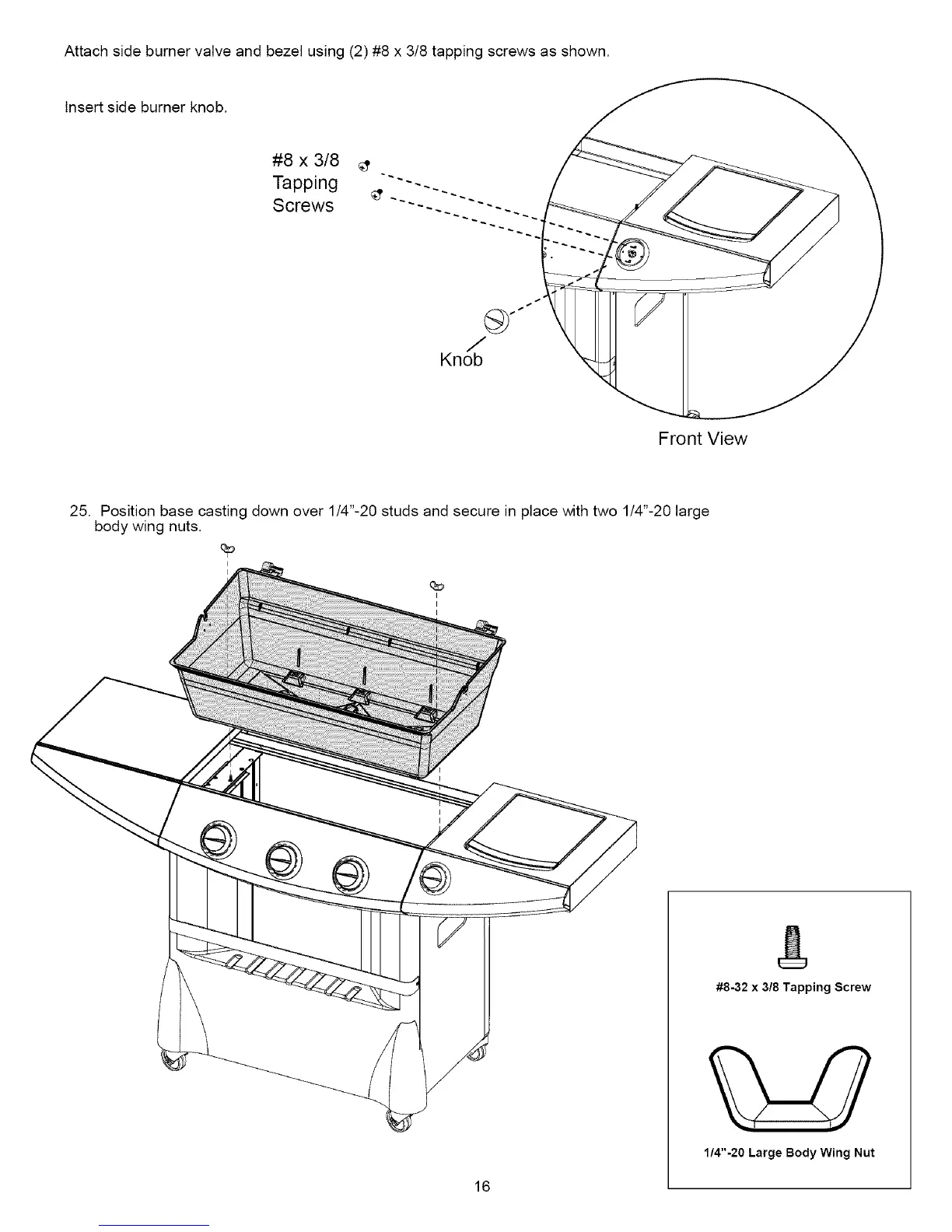

Attachsideburnervalveandbezelusing(2)#8x3/8tappingscrewsasshown.
Insertsideburnerknob.
#8 x 3/8 _,
Tapping
Screws
J
Knob
Front View
25. Position base casting down over 1/4"-20 studs and secure in place with two 1/4"-20 large
body wing nuts.
I
16
&
#8-32 x 3/8 Tapping Screw
%q
1/4"-20 Large Body Wing Nut
