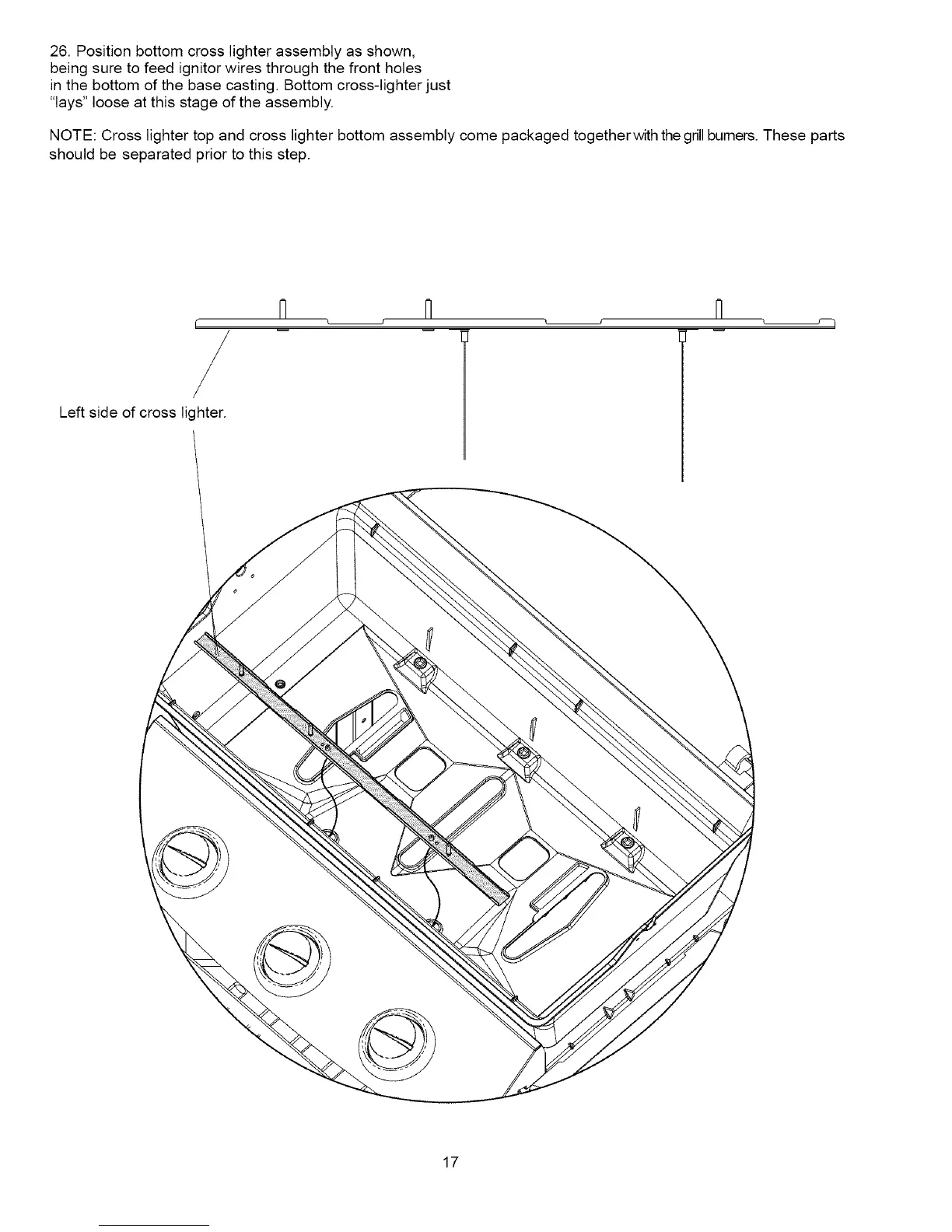

26. Position bottom cross lighter assembly as shown,
being sure to feed ignitor wires through the front holes
in the bottom of the base casting. Bottom cross-lighter just
"lays" loose at this stage of the assembly.
NOTE: Cross lighter top and cross lighter bottom assembly come packaged togetherwith the grillburners. These parts
should be separated prior to this step.
f
/
Left side of cross lighter.
!
17
